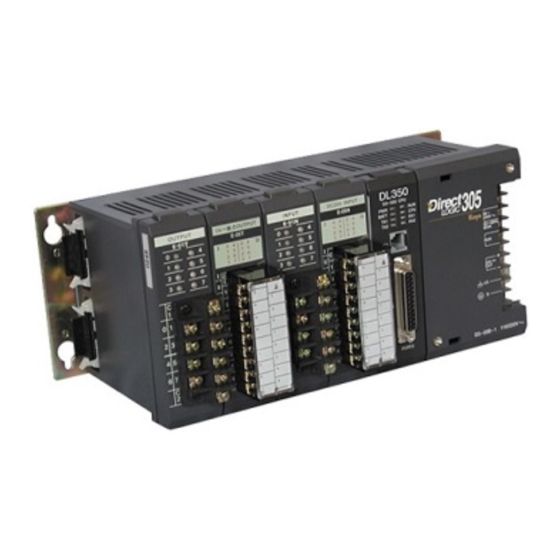

Getting Started
In This Chapter. . . .
— Introduction
— DL305 System Components
— DirectLOGIC
— A Few Steps to a Successful System
D3-330 CPU has been retired as of 8/26/2021. Please consider D3-340 or D3-350 CPU
as a replacement.
Handheld Programmer D3-HP & D3-HPP have been retired as of 03/2021 & 01/2018
respectively. Please consider Productivity, BRX, or CLICK series PLC systems as
upgrades.
Part Numbering System
™
1
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Koyo DL305
Summary of Contents for Koyo DL305
- Page 1 Getting Started In This Chapter..— Introduction — DL305 System Components — DirectLOGIC Part Numbering System ™ — A Few Steps to a Successful System D3-330 CPU has been retired as of 8/26/2021. Please consider D3-340 or D3-350 CPU as a replacement.
-
Page 2: This Manual
DL305 system. This manual is not intended to be a generic PLC training manual, but rather a user reference manual for the DL305 system. -
Page 3: Technical Assistance
Ch 1: Getting Started - - provides an overview of all the components that can be Organized used to make up one or many DL305 systems. This chapter shows the basic concepts of how the pieces fit together. It also explains the DL305 part numbering system, which will help you quickly identify the various types of modules. - Page 4 Configuration. I/O Modules The DL305 has one of the most diverse I/O module selections in the industry. A complete range of discrete modules which support 24 VDC, 125 VDC, 110/220 VAC and up to 10A relay outputs are offered. The analog modules provide 12 bit resolution and several selections of input and output signal ranges (including bipolar).
-
Page 5: Getting Started
Computer Interface Computer Interface with OPTOMUX™ Driver Networking Operator Interface Programming or DL405 Computer Interface Handheld Programmer RS422 RS232C RS232C (max.50ft/16.2m) (max. 4.6ft / 1.5m) (max.50ft/16.2m) DL305 DL305 DL305 RS232C/422 RS232C/422 RS232C/422 Convertor Convertor Convertor DL305 User Manual, Rev. D... - Page 6 Program Memory 64K/128K 5 Slot Base w/Expansion Capability, 110/220 VAC P/S 5 Slot Base w/Expansion Capability, 24 VDC Supply 8 Slot Base w/Expansion Capability, 110/220 VAC P/S 10 Slot Base w/Expansion Capability, 110/220 VAC P/S DL305 User Manual, Rev. D...
- Page 7 RS232C Data Communication Unit RS422 Data Communication Unit MODBUS® Slave Module MODBUS® Slave Module w/Radio Modem Universal connector: SPECIALTY RS232C / RS422/485 Convertor MODULES / UNITS 8pt INPUT Simulator 1pt High Speed Counter PROM Writer Unit Filler Module DL305 User Manual, Rev. D...
- Page 8 D3/F3 DL405 Product family D4/F4 Number of points 04/08/12/16/32 Input Output Combination Either Relay Current Sinking Current Sourcing Current Sinking/Sourcing High Current Isolation Fast I/O Denotes a differentiation between --1, --2, --3, --4 Similar modules DL305 User Manual, Rev. D...
- Page 9 F4- - - - R CoProcessors and ASCII BASIC Modules DL205 Product family D2/F2 DL305 Product family D3/F3 DL405 Product family D4/F4 CoProcessor ASCII BASIC 64K memory 128K memory 512K memory Radio modem Telephone modem DL305 User Manual, Rev. D...
-
Page 10: Selection Criteria
I/O modules. Step 5: There are many different I/O modules available with the DL305 system. Determine the I/O Chapters provide Module specifications and wiring diagrams for Specifications and the discrete I/O modules. -
Page 11: Step 7: Review The Programming Concepts
Initialize memory Step 7: All control systems differ in some areas. RLL Programming Review the The DL305 CPUs offer two different input output Programming types programming. Concepts programming available for all the DL305...
