Summary of Contents for Arkon MAGF1
-
Page 2: Table Of Contents
List of Contents EXPLOSIONVIEW DRAWING TECHNICAL SPECIFICATIONS WARNINGS SECURITY INSTRUCTIONS INSTALLATION OPERATION INSTRUCTIONS METER ASSEMBLY / DISASSEMBLY MAINTENANCE REPAIR PROBLEM GUIDE APPENDIX 11.1 Country of Origin 11.2 EU Declaration of Conformity 11.3 Warranty 11.4 Contact... -
Page 3: Explosionview Drawing
1 EXPLOSIONVIEW DRAWING Description Code M-4x10 mm DIN. 912 GALVANIZED 805400015 SCREW MAGF1 PP PLASTIC COVER 326001003 MAGF1 FACING PLATE 326004008 111.4x34.9x2 TRANSPARENT 803802013 METHACRYLATE TROPICALISED ELECTRONIC BATTERY 326004021 BOARD D. 3.5x9.5 mm DIN.7981 SHEET SCREW 805404002 DL2450 or CR2450 BUTTON BATTERY 322209002 D.138.94x1.78 mm JOINT... -
Page 4: Technical Specifications

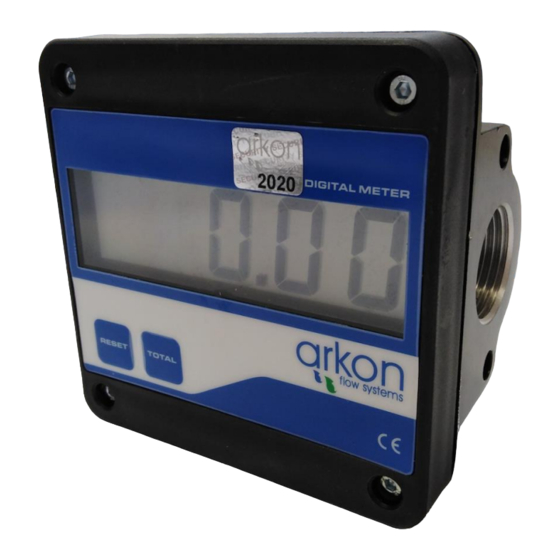

It is inserted into the fuel and oil distribution line and its operation is private. The calibration parameters and the litre totalizer are saved in a PERMANENT memory. The MAGF1 model has two keys and a big LCD-Display in order to make easier its display. -
Page 5: Warnings
3 WARNINGS Please read all the instructions carefully before using the product. The people who do not know the instructions must not use it. This manual describes how to use the meter according to the project hypothesis, the technical features, the types of installation, the use, the maintenance and the training relating to the possible dangers. -
Page 6: Security Instructions
4 SECURITY INSTRUCTIONS The meter security with regard to the material quality and reliability is determined by the EC Directive Regulations and is endorsed by the quality controls of the enterprise leaders in the sector, and it also guarantees the toxicity absence and the negative ecological effects. -
Page 7: Installation
5 INSTALLATION 5.1. The fluid direction makes no difference when the meter is installed. It must be assembled in the delivery, after the pump. 5.2. The meter is assembled in such a way that the digit reading and its keys are lined up with the tube inlet/outlet holes. -
Page 8: Operation Instructions
6 OPERATION INSTRUCTIONS 6.1. User Mode 6.1.1. Counter RESET: equivalent to NO: not to accept, exit (it depends on the selection). TOTAL: equivalent to YES: accept, enter. The device is always ready to make a volume measurement, when the liquid passes through the meter body. - Page 9 When it shows 'Err', it means it has not been calibrated correctly. Try calibrating it again. 6.3. Battery replacing operation The MAGF1 meter works with a lithium button battery, DL2450 or C2450 model. Its estimated duration is approx. 4 years (according to its application).
- Page 10 Once the battery is changed, follow the above steps to reassemble the meter top. It is not necessary to make any other operation. The electronics remembers the total counter and saves the last calibration factor.
-
Page 11: Meter Assembly / Disassembly
7 METER ASSEMBLY / DISASSEMBLY TO GO TO THE GEARS (10) or THE MEASURING CHAMBER: 7.1. Unscrew the screws (21) of the bottom cover and remove them. Remove the back meter cover (20), be careful because there are the gears (10) of the measuring device in its inner. 7.2. -
Page 12: Maintenance
8 MAINTENANCE It is possible that some liquids are dried up in the measuring chamber inner, and block it. If this happens, this meter must be cleaned carefully and when it is going to be mounted, you have to make sure that it is correctly done. Please follow the instructions from the above Meter Assembly / Disassembly no.7 Section. -
Page 13: Repair
9 REPAIR Please go to the place where you have bought it. There you will be advised of what the best is. The meters must be cleaned and dried up before its delivery to be repaired. If the meters are not used with oil or diesel, they must be rinsed as many times as it is necessary, enclosing a note indicating the chemical substances supplied with this unit. -
Page 14: Problem Guide
10 PROBLEM GUIDE Breakdown Possible cause Solution It counts too fast or too slow. - wrong calibration - calibrate the meter (please refer - air inlet to Section 6.2.). - blocked gears - look for and repair the possible leaks or air inlets in the system. - clean and replace the gears. -
Page 15: Appendix
11.3 Warranty The warranty conditions are covered by Arkon Flow Systems, s.r.o. Terms & Conditions of Sale and by Arkon Flow Systems, s.r.o Return Regulations and Warranty Conditions. The Arkon Flow Systems, s.r.o Terms & Conditions of Sale and the Arkon Flow Systems, s.r.o Return Regulations and Warranty Conditions are an integral part of the Resellers contract and of any Order Confirmation.
