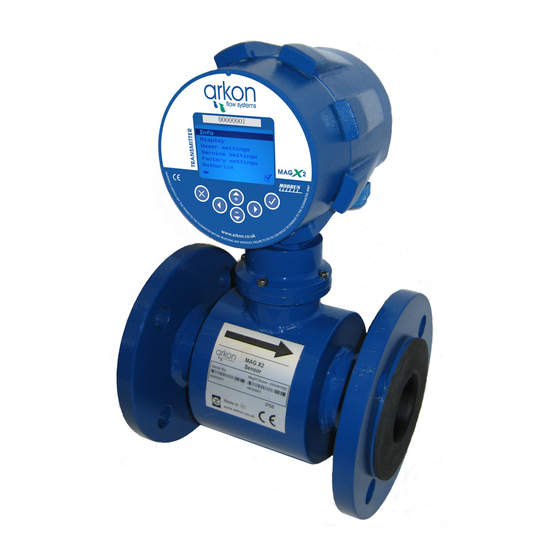

Summary of Contents for Arkon MAGX2

  • Page 2: Table Of Contents

    2.4. Installation of the transmitter 2.5. Module installation 2.6. Cables connections 2.7. Potting the remote sensor terminal box for sensor communication module 2.8. Fill up of a cable gland of MAGX2 IP68 housing 2.9. Ambient conditions 3. MAGX2 Transmitter Unit............................13 3.1. Main screen 3.2.
  • Page 3 7. Liner and electrode selection ............................53 8. Flowmeter Dimensions ..............................54 8.1. IP67 Transmitter 8.2. IP68 Transmitter 9. How to order your MAGX2 ............................58 10. MAGX2 Error Code Table ............................60 11. Appendix ..................................61 11.1. CE requirements 11.2.
  • Page 4 MAGX2 User Guide V2.14 1-2-2017...

  • Page 5: Introduction

    1.3. Safety Instructions Please read this manual carefully before using the product. Keep this manual for future reference. Arkon Flow Systems, s.r.o will not be liable for any damage caused by improper use of the product or its accessories. If the device is used any different way than is specified, the electric protection may be disrupted.

  • Page 6: Installation

    The cable type used for the connection between sensor and transmitter for remote versions: UNITRONIC® LiYCY (TP) 0035 830, 2x2x0.5 The MAGX2 is equipped with an electronic board located inside the sensor neck. This board sends a digital signal to the transmitter, unlike traditional flowmeters, which send an analogue signal. This allows the MAGX2 to carry its signal over much longer distances than conventional flowmeters;...

  • Page 7: Dry Liner

    All MAGX2 sensors are supplied with 2 built in earthing electrodes which is sufficient for all applications with metal pipes and tanks. However on applications where all pipes and tanks are manufactured from plastic, it is recommended that earthing rings are also installed to ensure the maximum resistance of the sensor to earth is <1 ohm.

  • Page 8: Installation Of The Transmitter

    To do this, first open the transmitter housing by disconnecting the two parts of the transmitter housing with the metal “key” that is provided with the meter IP68 Transmitter To do this undo four M6x22 screws using allen key nr.5 that is part of the delivery. MAGX2 User Guide V2.14 1-2-2017...

  • Page 9: Module Installation

    - Always check if the module does not have a bent or broken pin, before placing it in the correct module slot of the MAGX2 motherboard.  - Always make sure you place the module in the correct slot of the motherboard! The name that is written on the module itself has to match the name written next to the slot.

  • Page 10: Cables Connections

    2.6. Cables connections The following diagrams show the connections of the cables between sensor and transmitter. Sensor communication module version 7.1 Use this cable connection only for “sensor to transmitter communication module - version 7.1”. MAGX2 User Guide V2.14 1-2-2017...
  • Page 11 Important: In case of IP68 transmitter it is needed to use silicone gel to extra protect cable glands from inside of the meter. Pour neutral silicone gel into the cable gland from inner side and pull the cable 3mm out of the housing to make the cable gland extra protected for IP68. MAGX2 User Guide V2.14 1-2-2017...

  • Page 12: Potting The Remote Sensor Terminal Box For Sensor Communication Module

    Screw the small terminal box to the sensor neck (4 screws).  Fill the terminal box completely with silicone, by squeezing it through the opening on top of the box.  Close the small terminal box with the sealing screw. MAGX2 User Guide V2.14 1-2-2017...

  • Page 13: Fill Up Of A Cable Gland Of Magx2 Ip68 Housing

    2.8. Fill up of a cable gland of MAGX2 IP68 housing  Fit MAGX2 IP68 housing with standard round cross-cut cable. Example: Power Supply (see pic. 1). Apply sufficient amount of silicon gel to cable gland of opened round cross cut cable end inside ...

  • Page 14: Magx2 Transmitter Unit

    Transmitter MAGX2 IP68 T****** The MAGX2 Transmitter unit is the main part of the flowmeter. It consists of the MAGX2 motherboard, a graphical display, touch-button controls and a transmitter housing. Through the display and with help of the touch buttons, you can go through the various menus for data reading, configuration and setup of your flowmeter.
  • Page 15 Maximum of the graph is Qn value, can be changed in User Settings. External Measurements - Temperature This item is a temperature measured by the connected external temperature sensor.* *External Measurement Temperature module must be used. MAGX2 User Guide V2.14 1-2-2017...
  • Page 16 If value of any Volume counter higher than 4 000 000 m3, then value of Volume show only in m3 unit. If value of any Volume counter higher than 999 999 999 m3, then this Volume will be reset to 0. MAGX2 User Guide V2.14 1-2-2017...

  • Page 17: Flowmeter Menu

    Signal strength of the GSM SMS Module. GSM Signal GPRS module Shows if the GPRS module is inserted in the present flowmeter. Shows if the Wi-Fi module is inserted in the flowmeter. Wifi module present MAGX2 User Guide V2.14 1-2-2017...

  • Page 18: Display Menu

     Selection identification  Confirmation of setup and saving to memory Pressure in bar unit (1 bar = 100 kPa = 14,50 psi) Pressure in psi unit (1 psi = 6,89 kPa = 0,07 bar) MAGX2 User Guide V2.14 1-2-2017...

  • Page 19: Display > Language

    Back with no change  Item selection  Selection identification  Confirmation of setup and saving to memory The device is measuring, the totalizers are active Stop The display will show a value, yet the totalizers are off MAGX2 User Guide V2.14 1-2-2017...

  • Page 20: User Settings > Datalogger Interval

    Constant value to determine the empty pipe detection limit. Possible range: 0.000 – 0.999  Back with no change  Selection of digit position  Value setting  Confirmation of setup and saving to memory MAGX2 User Guide V2.14 1-2-2017...

  • Page 21: User Settings > Delete Auxiliary Volume

    3.5.11. User Settings > Invert Flow This function serves to change the definition of flow direction.  Back with no change  Item selection  Selection identification  Confirmation of setup and saving to memory MAGX2 User Guide V2.14 1-2-2017...

  • Page 22: User Settings > Current Loop

    The output that is not used has to be switched off (Settings – Signal – OFF). MAGX2 User Guide V2.14 1-2-2017...

  • Page 23: User Settings > Pulse Output

    The signal can be cancelled by pressing any push button on the flowmeter. Air Detect Output: ON, during air detection (empty pipe) Comparator Output: ON, if the actual flow-rate is within the given On In range (can be set under Comparator Flow) MAGX2 User Guide V2.14 1-2-2017...
  • Page 24 Comparator Mode. Flow1 < Flow2 Hysteresis Setup of hysteresis for the Comparator Mode User Settings > Pulse Output > RE3 & RE4  Back with no change  Item selection  Enter this part of the menu MAGX2 User Guide V2.14 1-2-2017...
  • Page 25 (RE3 and/or RE4) is closed. Possible range: 0 – 99999 l  Back with no change  Selection of digit position  Value setting  Confirmation of setup and saving to memory Litres/1 (Q+)/(Q–): Dosing: RE3 and/or Dosing MAGX2 User Guide V2.14 1-2-2017...

  • Page 26: User Settings > Frequency Output

    Setup of the active flow-range for the Frequency min. – max. output module F min. – max. Configuration Frequency output range, corresponding to the actual flow-rate within the given range. Minimal frequency 2 Hz Maximal frequency 1000 Hz MAGX2 User Guide V2.14 1-2-2017...

  • Page 27: User Settings > Load Default Settings

    Selection of digit position  Value setting  Confirmation of setup and saving to memory 3.5.19. User Settings > Modbus  Back with no change  Item selection  Enter this part of the menu MAGX2 User Guide V2.14 1-2-2017...

  • Page 28: User Settings > Electrode Cleaning

    Setup clean time for automatic electrode cleaning (Factory setting: 500 s). Possible range: 1 – 9999 s  Back with no change  Selection of digit position  Value setting  Confirmation of setup and saving to memory MAGX2 User Guide V2.14 1-2-2017...

  • Page 29: User Settings > Totalizer Cycling

    User Settings > GSM Settings > GSM Set Event > Empty Pipe Empty Pipe event sending.  Back with no change  Item selection  Selection identification  Confirmation of setup and saving to memory MAGX2 User Guide V2.14 1-2-2017...

  • Page 30: User Settings > Wi-Fi Ap Mode

    Turn on Wi-Fi AP mode Allowing Wi-Fi module to AP mode - prepares the module to be set for operation from external PC or mobile device. For more information please refer to P31 MAGX2 Wi-Fi module installation procedure. MAGX2 User Guide...

  • Page 31: External Measurements Menu

     Confirmation of setup and saving to memory External Measurements > Temperature > Calibration Calibration of the external temperature sensor.  Back with no change  Item selection  Enter this part of the menu MAGX2 User Guide V2.14 1-2-2017...
  • Page 32 Possible range: 4 – 20mA, Pressure – according to sensor  Back with no change  Selection of digit position  Value setting  Confirmation of setup and saving to memory * Any external pressure sensor working on passive 4-20mA. i.e. WIKA A-10 (P#1105VX3J) MAGX2 User Guide V2.14 1-2-2017...

  • Page 33: Service Settings > Error Delete

    3.7.5. Service Settings > Delete Volume Total Option to zero the totalizer for total flow.  Back with no change  Item selection  Confirmation of choice  No change  Resets total volume totalizer MAGX2 User Guide V2.14 1-2-2017...

  • Page 34: Service Settings > Flow Simulation

    Service Mode is OFF 3.8. Factory Settings Menu To enter this part of the menu, it is necessary to enter the Factory Password. This function is only available to Arkon staff in the Arkon workshop. MAGX2 User Guide V2.14 1-2-2017...

  • Page 35: Authorize Menu

    3.9. Authorize Menu To enter this part of the menu, it is necessary to enter the Authorize Password. This function is only available to Arkon staff in the Arkon workshop. Authorize Settings > Password Setup Here, it is possible to change a forgotten user password. It is necessary to call the Arkon sales office and provide the serial number.

  • Page 36: Modules

    All used wires have to be round crosscut cables. Any connection or disconnection of any module has to be done with the network power to the meter switched off. The flowmeter is CAT II – CAT III device. MAGX2 User Guide V2.14 1-2-2017...

  • Page 37: Datalogger

    Individual module installation is straightforward thanks to a plug-and-play system. Yet, some caution is required when selecting the correct installation slot according to the picture below. GPRS BLUETOOTH PULSE TCP/IP EXT. TEMPERATURE GSM-SMS CURRENT-LOOP RS232 EXT. PRESSURE RS485 MAGX2 User Guide V2.14 1-2-2017...

  • Page 38: Usb Module

    BASIC CIRCUIT CONNECTIONS: Requirement: Microsoft Windows XP or newer version of operating system Drivers are included in MAGX2 SW. Any connection or disconnection of any module has to be done with the network power to the meter switched off. PELV device.

  • Page 39: Rs485 Module

    4.5. RS485 Module Module Name: Symbol: Ordering Code: MAGX2 RS485 Module ******485 APPLICATIONS: Industrial Automation, Industrial Process Control, Peripheral - PC and Terminal. Electrical Specifications VCC to Ground 3.3 VDC Baud rate Max. 115200 baud/s BASIC CIRCUIT CONNECTIONS: Multi-Node Network with End Termination Using module RS485 Terminator R with resistance 100...

  • Page 40: Rs232 Module

    4.6. RS232 Module Module Name: Symbol: Ordering Code: MAGX2 RS232 Module ******232 APPLICATIONS: Industrial Automation, Industrial Process Control, Peripheral - PC and Terminal. Electrical Specifications VCC to Ground 3.3 VDC Baud rate Max. 115200 baud/s BASIC CIRCUIT CONNECTIONS: A special cable Cannon9 – mini USB is included.

  • Page 41: Tcp/Ip Module

    If there is a different setting the communication will not work. You can find the setting in the following MAGX2 flow meter menu: "Menu / User settings / Modbus / Baud rate" and "Menu / User settings / Modbus / Parity".

  • Page 42: Bluetooth Module

    Parity none, 1 stop bit. If there is a different setting the communication will not work. You can find the setting in the following MAGX2 flow meter menu: "Menu / User settings / Modbus / Baud rate" and "Menu / User settings / Modbus / Parity".

  • Page 43: Gsm-Sms Module

    Parity none, 1 stop bit. If there is a different setting the communication will not work. You can find the setting in the following MAGX2 flow meter menu: "Menu / User settings / Modbus / Baud rate" and "Menu / User settings / Modbus / Parity".

  • Page 44: Gprs Module

    1 stop bit. If there is a different setting the communication will not work. You can find the setting in the following MAGX2 flow meter menu: "Menu / User settings / Modbus / Baud rate" and "Menu / User settings / Modbus / Parity".

  • Page 45: Wi-Fi Module

    4.11. Wi-Fi Module Module Name: Symbol: Ordering Code: MAGX2 WiFi Module ******WIFI APPLICATIONS: Wireless communication for short and medium distances. Electrical Specifications VCC to Ground 3.3 VDC Power Supply Current up to 430 mA Baud Rate 4800 - 38400 baud/s 2,400 –...

  • Page 46: Pulse Output Module

    4.12. Pulse Output Module Module Name: Symbol: Ordering Code: MAGX2 Pulse Output Module *****P* APPLICATIONS: Industrial Automation, Industrial Process Control, Test Systems, Smart Transmitter Electrical Specifications VCC to Ground 3.3 VDC Output mode Frequency, Pulse Max Relay Voltage 110VDC/0.5A Output Frequency...

  • Page 47: Pulse 230 Module

    4.13. Pulse 230 Module Module Name: Symbol: Ordering Code: MAGX2 Pulse 230 Module *****P2* APPLICATIONS: Industrial Automation, Industrial Process Control, Test Systems, Smart Transmitter Electrical Specifications VCC to Ground 3.3 VDC Output mode Frequency, Pulse - relay and open collector...

  • Page 48: External Temperature Module

    4.14. External Temperature Module Module Name: Symbol: Ordering Code: MAGX2 External Temperature *****ET* Module APPLICATIONS: Industrial Automation, Industrial Process Control, Test Systems, Smart Transmitter Electrical Specifications VCC to Ground 3.3 VDC RTD Sensor Type Pt100, Pt200, Pt500, Pt1000 Tolerance RTD...

  • Page 49: Current Loop Output Module

    4.15. Current Loop Output Module Module Name: Symbol: Ordering Code: MAGX2 4-20mA Current Loop ****C** Output Module APPLICATIONS: Industrial Automation, Industrial Process Control, Test Systems, Smart Transmitter Electrical Specifications: VCC to Ground 3.3 VDC Type 12-bit DAC 3.9 µA Maximum resolution 4 –...

  • Page 50: External Pressure Module

    4.16. External Pressure Module Module Name: Symbol: Ordering Code: MAGX2 External Pressure Module ****EP** APPLICATIONS: Industrial Automation, Industrial Process Control, Test Systems, Smart Transmitter Electrical Specifications: VCC to Ground 3.3 VDC Output type Pressure passive 4 – 20 mA (ext. power supply from Pressure Module)

  • Page 51: Oiml R49 Certification

    OIML R49 certification MAGX2 have been type tested and internationally proven and endorsed to the highest accuracy class 2 for cold and hot potable water meters – OIML R49-1 (Organisation Internationale de Métrologie Légale). For full details, OIML R49 is available to download from www.oiml.org. Its requirements are in line with other international standards, such as EN14154 and ISO4064.
  • Page 52 Please use the sealing label that is part of the package and add it to the sensor communication module part after installation to the end user. MAGX2 User Guide V2.14 1-2-2017...

  • Page 53: Maintenance

    Maintenance MAGX2 flowmeter does not require any special maintenance. Dependent on the media being measured it is recommended that approximately once a year, to remove the sensor from the pipe and clean the liner. Method of cleaning consists of removing mechanical dirt and any non-conductive coating (like oil film) from the liner. A very dirty liner could cause inaccuracy of the measurement.

  • Page 54: Liner And Electrode Selection

    Arkon can only recommend materials, we cannot guarantee them. Please note that Arkon offer also WRAS approved MAGX2 for DN25,DN50 and DN80 and WRAS approved material for sizes up to DN600. For more info contact our sales department.

  • Page 55: Flowmeter Dimensions

    Flowmeter Dimensions 8.1. IP67 Transmitter Compact version Remote version MAGX2 User Guide V2.14 1-2-2017...
  • Page 56 DN 10 – DN 150 → L ± 5 mm DN 200 – DN 1000 → L ± 10 mm Standard pressure: DN 10 – DN 50 → PN 40 / 150 lbs. DN 65 – DN 150 → PN 16 / 150 lbs MAGX2 User Guide V2.14 1-2-2017...

  • Page 57: Ip68 Transmitter

    8.2. IP68 Transmitter Compact version Remote version MAGX2 User Guide V2.14 1-2-2017...
  • Page 58 DN 10 – DN 150 → L ± 5 mm DN 200 – DN 1000 → L ± 10 mm Standard pressure: DN 10 – DN 50 → PN 40 / 150 lbs. DN 65 – DN 150 → PN 16 / 150 lbs MAGX2 User Guide V2.14 1-2-2017...

  • Page 59: How To Order Your Magx2

    RS485 communication module, distance up to 1km TCP/IP communication module, amplifiers might be necessary GSM-SMS WIFI Wi-Fi * Please note it is not possible to change MAGX2 transmitter settings using GPRS module. Other communication module will be required ** Input Example MAGX2 IP68...
  • Page 60 150 mm / 6” 1000 mm / 40” Liner HARD RUBBER PTFE SOFT RUBBER HYGIENIC RUBBER E-CTFE Pressure 150 psi 300 psi PN10 PN16 PN25 PN40 Electrodes Stainless Steel Hastelloy C Titanium Platinum Example Sensor MAGX2 User Guide V2.14 1-2-2017...

  • Page 61: Magx2 Error Code Table

    MAGX2 Error Code Table Position 0 Position 1 Position 31 MAGX2 can detect and show a number of errors in one error code value. Error position Error Description Empty Pipe (Air Detect) Overloaded Excitation Sensor not responding SD open file...

  • Page 62: Appendix

    The MAGX2 Electromagnetic flowmeter is manufactured conform CE requirements. 11.2. Warranty The warranty conditions are covered by Arkon Flow Systems, s.r.o. Terms & Conditions of Sale and by Arkon Flow Systems, s.r.o Return Regulations and Warranty Conditions. The Arkon Flow Systems, s.r.o Terms &...
  • Page 63 MAGX2 User Guide V2.14 1-2-2017...
