Product Overview - LEGRAND C2G41601 Manual

4-Port HDMI Distribution Amplifier Splitter - 4K 60Hz

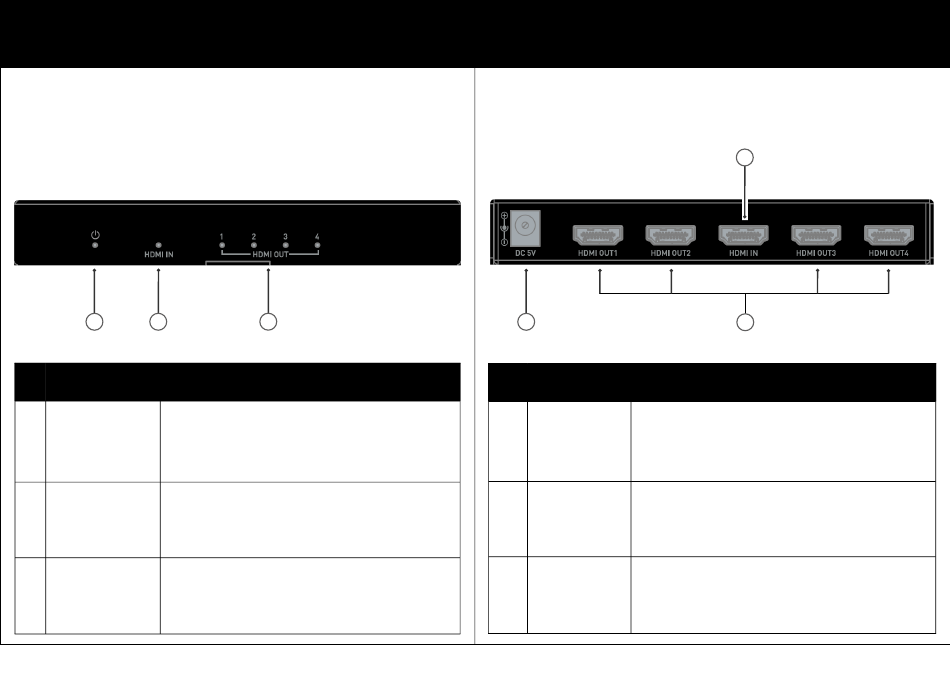

Product Overview

Front Panel
1 2
F P D
RONT ANEL ESCRIPTION
On: Power is applied to the splitter.
1 Power LED (Red)
Off: No power is applied to the splitter.
On: HDMI signal is detected on the HDMI input.
HDMI IN LED
2
(Green)
Off: No HDMI signal is detected on the HDMI input.
On: An HDMI display is connected to the HDMI output.
HDMI OUT LED
3
(1-4) (Green)
Off: No HDMI display is connected to the HDMI output.
3
Rear Panel
4
R P D
EAR ANEL ESCRIPTION
4 DC 5V Connect the power supply provided.
5 HDMI OUT (1-4) Connect to the HDMI display using an HDMI cable.
6 HDMI IN Connect to the HDMI source using an HDMI cable.
2
(us)
6
5
