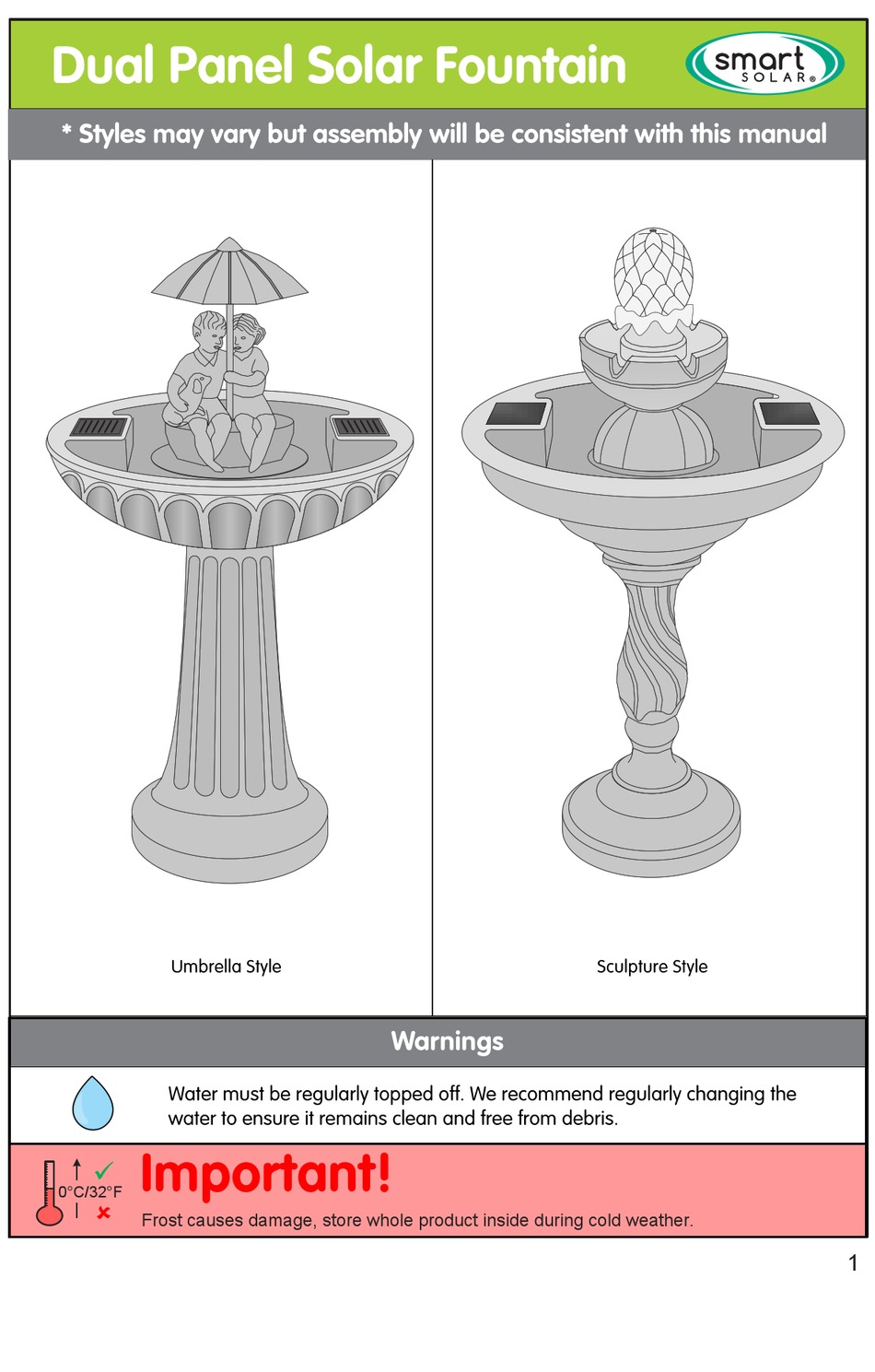

Dual Panel Solar Fountain
* Styles may vary but assembly will be consistent with this manual
4
Umbrella Style
Sculpture Style
Warnings
Water must be regularly topped off. We recommend regularly changing the
water to ensure it remains clean and free from debris.
Important!
0°C/32°F
Frost causes damage, store whole product inside during cold weather.
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Smart Solar 10392M01
Summary of Contents for Smart Solar 10392M01
- Page 1 Dual Panel Solar Fountain * Styles may vary but assembly will be consistent with this manual Umbrella Style Sculpture Style Warnings Water must be regularly topped off. We recommend regularly changing the water to ensure it remains clean and free from debris. Important! ...
- Page 2 Umbrella Style Fountain Assembly 1. Attach the main bowl to the pedestal. Align the marks and turn to lock in place. 2. Place the solar panels in the recesses provided running the cables through the holes in the side. 3. Connect the solar panels to the pump taking care to ensure the connectors are water tight.
- Page 3 Sculpture Style Fountain Assembly 1. Attach the main bowl to the pedestal. Align the marks and turn to lock in place. 2. Place the solar panels in the recesses provided running the cables through the holes in the side. 3. Connect the solar panels to the pump taking care to ensure the connectors are water tight.
- Page 4 Position Position your fountain so that receives direct sunlight. The fountain will NOT work if the solar panels are in a shaded area. In order to minimize the chances of the finial shading one of the solar panels ensure that the fountain is south facing.
- Page 5 Performance This product is designed primarily to operate in summer months but will also work in spring and autumn provided there is good sunshine. Performance is directly related to the amount and strength of sunlight received. Sculpture In bright direct sunlight your pump will work well In slightly cloudy conditions your pump will work with a consistent fountain height and flow rate.
- Page 6 Connections Important Ensure connections from both solar panels to pump are water tight. Pump Cleaning / Troubleshooting Maintenance Remove lter material and rinse in water. Filter cover can simply be pulled apart as shown. Turn o impeller cover to release as shown, impeller Rinse all parts thoroughly in water.
-
Page 7: Maintenance
Maintenance To maintain optimum performance, regularly clean the solar panel using water or glass cleaner in conjunction with a non-abrasive sponge or cloth. Sculpture Umbrella Remove umbrella to access tube. If the tubing If the tubing become blocked, rinse become blocked, rinse through with water. through with water. - Page 8 Please do not discard any damaged parts until instructed to do so by our customer service department. Smart Solar is a Smart Living Home & Garden brand Telephone: + 1 813 343 5775 Email: customerservice@smartlivinghg.com...
