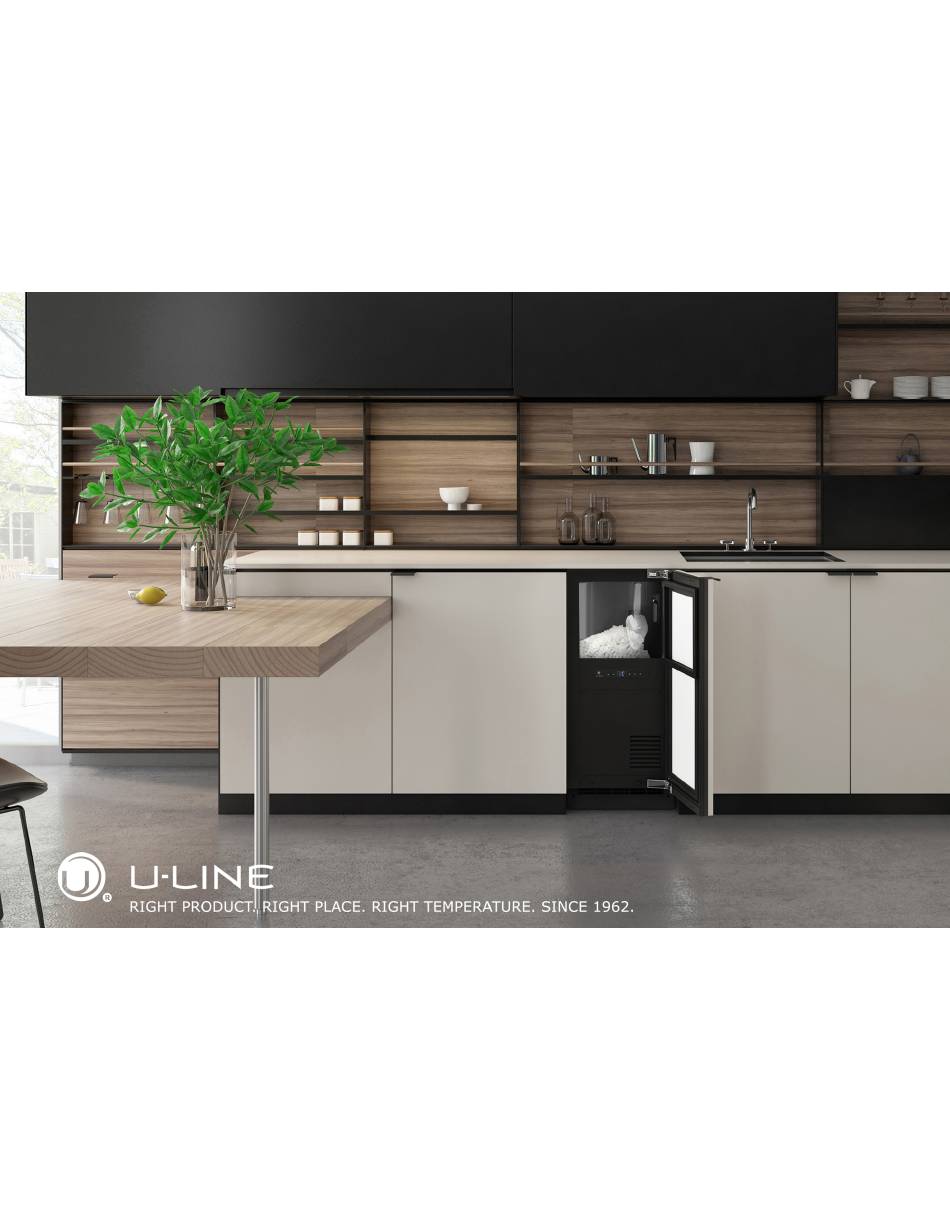

- Page 1 USER GUIDE & SERVICE MANUAL 3 Class UHNB315 / UHNP315 15” Nugget Ice Machine ● ●...
- Page 2 USER GUIDE & SERVICE MANUAL u-line.com Table of Contents Installation Integrated Panel Dimensions Integrated Panel Installation Grille Installation...
- Page 3 ® to preserve the right product, in the right place, at the right temperature. Since 2014, U-Line has been part of the Middleby family of brands. All products are designed, engineered, and assembled in Milwaukee, Wisconsin, USA, and select products are available worldwide.
- Page 4 USER GUIDE u-line.com Integrated Panel Dimensions Integrated Panel Dimensions Metric measurements rounded and optimized. INTEGRATED PANEL BACK SURFACE MUST HAVE AMPLE FLAT SURFACE TO MOUNT OVERLAY PANEL FLAT AND WITHOUT " INTERFERENCE (20 mm) NOTICE Due to differences in surrounding cabinetry the "...
- Page 5 USER GUIDE u-line.com HANDLELESS INTEGRATED DOOR PANEL 3. Prepare the insert(s) that will back up the handleless design. Wooden Insert – Cut 1/8" (3 mm) thick The following procedure is designed to provide a finished, wooden insert(s) to the dimensions below.
- Page 6 USER GUIDE u-line.com Handleless Integrated Panel Dimensions " (3 mm) Top Design " (6 mm) " (22 mm) Ref. " " (R 16 mm) (60 mm) " (379 mm) " (70 mm) Insert Notch " (70 mm) Wooden Insert Notch Depth: "...
- Page 7 USER GUIDE u-line.com EXTENDED INTEGRATED PANEL 3. Optional: Install handles and hardware NOTICE Due to differences in surrounding cabinetry the NOTICE panel may not perfectly align with door. The The door panel must not weigh more than 20 lbs procedure below is designed to provide a (10 kg).
- Page 8 Extended Integrated Panel Dimensions Integrated Grille If you would like to cover the grille with an integrated BACK SURFACE MUST HAVE AMPLE FLAT SURFACE TO MOUNT OVERLAY PANEL FLAT AND WITHOUT panel, purchase U-Line’s adjustable grille accessories. " INTERFERENCE (20 mm) "...
- Page 9 11.Remove clamps from door. panel to door using Clamp clamps. A robust tape may also be NOTICE used. U-Line If panel requires additional adjustment after recommends the removing clamps, slightly loosen each screw and use of bar clamps Door/Drawer adjust panel as necessary. Tighten screws upon to secure the panel completion.
- Page 10 USER GUIDE u-line.com Grille Installation REMOVING AND INSTALLING GRILLE WARNING Disconnect electric power to the unit before removing the grille. When using the unit, the grille must be installed. WARNING DO NOT touch the condenser fins. The condenser fins are SHARP and can be easily damaged.
