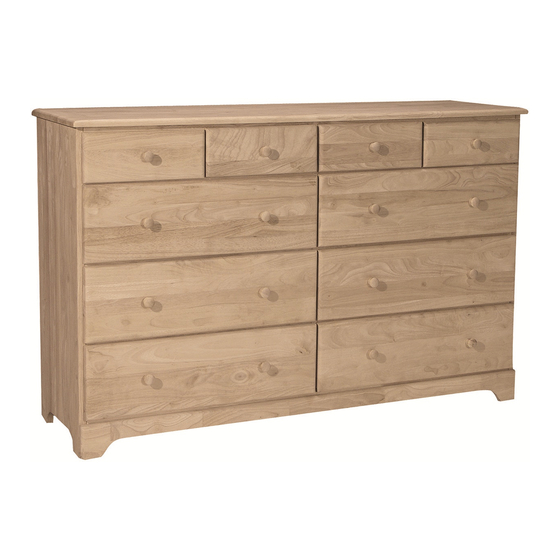

- Page 1 ASSEMBLY INSTRUCTIONS Description : JAMESTOWN DRESSER 10-DRAWER SOLID W Item No. : BD-5010 ITEM NO.: BD-5010 Printed in Vietnam REVISED AUG 09, 2016 - 1 -...
- Page 2 BEFORE ASSEMBLY Thank you for purchasing this quality product. This product has been designed for easy assembly and constructed for durability. All parts were checked prior to packaging to insure quality. Prior to beginning assembly, however, make sure all parts and hardware are included and free of obvious defect.
- Page 3 PART LIST When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have the following parts: Description Sketch 10-DRAWER DRESSER HARDWARE LIST When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have all of the following hardware: Description Sketch...
- Page 4 STEP 1 Attach knobs (1) to front of drawers with pan head screws (2) as shown below. Tighten with a screwdriver. STEP 2 Attach the steel bands (5) to the unit with short screws (4) and attach the steel bands (5) to the wall with long screws (3) as shown below (to secure the product and prevent tipping).
