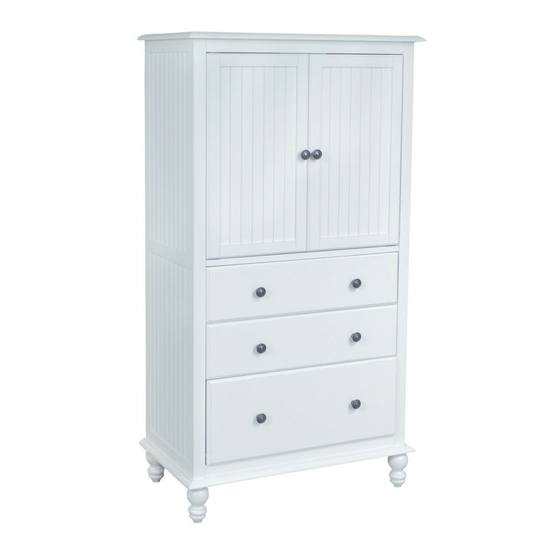

- Page 1 ASSEMBLY INSTRUCTIONS Description : COTTAGE 3 DRAWER ARMOIRE Item No. : BD-2033A ITEM NO:BD-2033A Printed in Vietnam REVISED SEP 20, 2016 - 1 -...
- Page 2 Long exposure to rubber or soft plastic may cause a chemical reaction and damage the finish of your product. Protect the surface of the product with cloth if you are using any product with rubber feet or base. ASSEMBLY TOOLS REQUIRED NOT INCLUDED ITEM NO:BD-2033A Printed in Vietnam REVISED SEP 20, 2016 - 2 -...
- Page 3 Short screw (35x35mm) ( M3.5x15mm) METAL KNOB (35x30mm) Bracket GOES WITH FINISHED ITEM ONLY. Pan head screw *Metal knob: (M4x22mm) Steel band *Wooden knob:(M4x25mm) Long screw Warning label (M4x30mm) ITEM NO:BD-2033A Printed in Vietnam REVISED SEP 20, 2016 - 3 -...
- Page 4 Lift the armoire (A) to attach legs (B) by screwing them into armoire (A), as shown below. STEP 2 Attach brackets (5) to the unit as shown below. Place shelf (C) on the brackets and attach with screws (4). Tighten with a screwdriver. ITEM NO:BD-2033A Printed in Vietnam REVISED SEP 20, 2016 - 4 -...
- Page 5 (3) as shown below (to secure the product and prevent tipping). Tighten with a screwdriver. Stick the warning labels (7) at back side of doors and inside the drawers before use. ITEM NO:BD-2033A Printed in Vietnam REVISED SEP 20, 2016...
