Universal Tool HP17RD Operator Instructions

Operator Instructions
Includes - Foreseen Use, Work Stations, Putting Into Service, Operating,
Dismantling, Assembly and Safety Rules
Manufacturer/Supplier
Universal Air Tool Company Limited
Unit 8
Lane End Industrial Park
High Wycombe
Bucks
HP14 3BY
Tel No (01494) 883300
Product Nett Weight
lbs
10.14
Kg
4.6
Air Pressure
Recommended Working
Recommended Minimum
Maximum
Personal Safety Equipment
Use - Safety Glasses
Use - Safety Gloves
Use - Safety Boots
Use - Breathing Masks
Use - Ear Protectors

Foreseen Use Of Tool

This drill is designed for the purpose of drilling holes in all types of
materials, i.e. metals, wood, stone, plastics etc. using drilling bits
designed for this purpose. It may be used with other forms of cutting
tools, polishing devices or for sanding using coated abrasive products.
Before using any such products first check with the manufacturer their
suitability for use with this type of drill. Do not use bonded abrasive
products (i.e. grinding wheels) or saw blades or any device which has a
permitted safe working speed less than the free speed of the drill.
Do not use this drill for any other purpose than that specified without
consulting the manufacturer or the manufacturer's authorised supplier.

Work Stations

The tool should only be used as a handheld hand operated tool. It is
always recom-
mended that the
tool is used when
standing on the solid
floor. It can be used
in other positions
but before any such
use, the operator
must be in a secure
position having a
firm grip and footing
and be aware that
the drill can develop
a torque reaction
see section
"Operating".
Fax No (01494) 883237
Recommended Use Of
Balancer Or Support
No
6.3 bar 90 PSI
n/a bar n/a PSI
7.0 bar 10.0 PSI
Yes
Yes
Yes
Important
Read these instructions carefully before installing, operating,
servicing or repairing this tool. Keep these instructions in a safe
accessible place.
Product Type

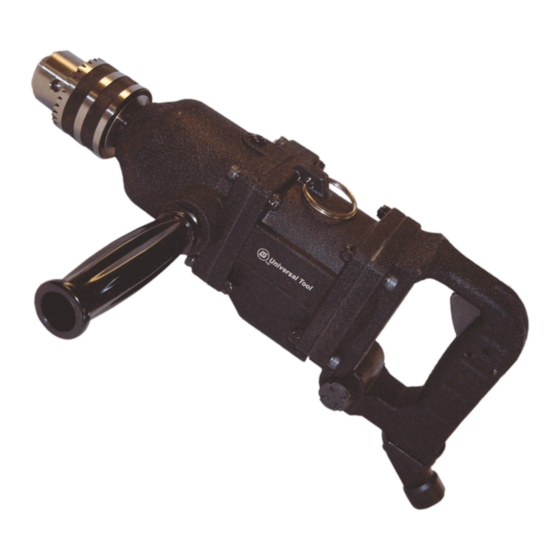

5/8" Reversible Straight
Drill
Model No/Nos
HP17RD
Recommended Hose Bore
Size - Minimum
3/8 Ins 10
Noise Level Sound Pressure Level 90.0 dB(A)
Test Method Tested in accordance with Pneurop
test code PN8NTC1 and ISO Standard 3744
Vibration Level
Test Method Tested in accordance with ISO
standard 8662/1

Putting Into Service

Air Supply
Use a clean lubricated air supply that will give a measured air pressure
at the tool of 90 p.s.i./6.3 bar when the tool is running with the trigger
fully depressed. Use recommended hose size and length. It is

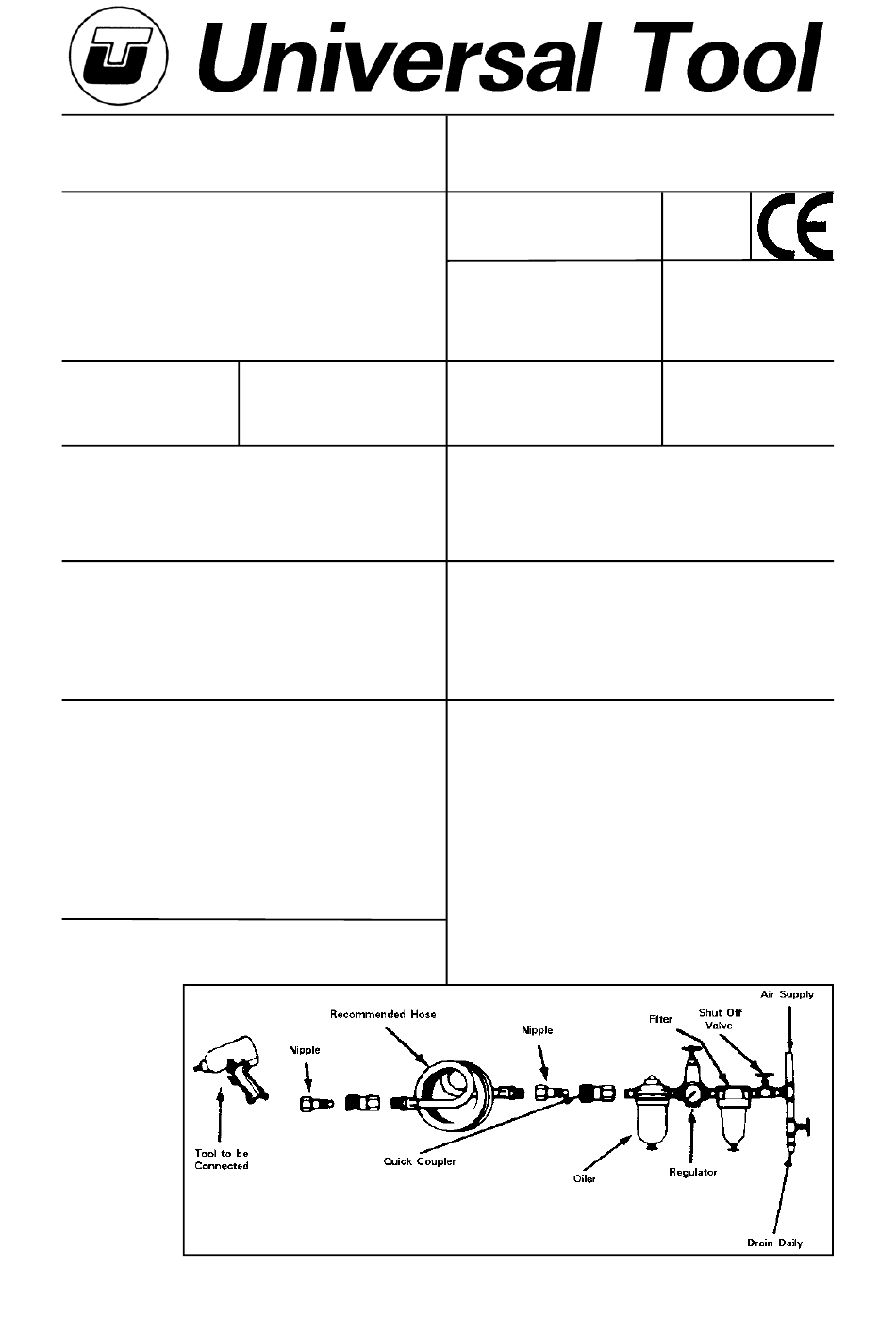

recommended that the tool is connected to the air supply as shown in
figure 1. Do not connect the tool to the air line system without
incorporating an easy to reach and operate air shut off valve. The air
supply should be lubricated. It is strongly recommended that an air filter,
regulator, lubricator (FRL) is used as shown in Figure 1 as this will supply
clean, lubricated air at the correct pressure to the tool. Details of such
equipment can be obtained from your supplier. If such equipment is not
used then the tool should be lubricated by shutting off the air supply to
the tool, depressurising the line by pressing the trigger on the tool.
Disconnect the air line and pour into the intake bushing a teaspoonful
Page No 1
RPM
1,000
Cycles Per Min
Serial No (if any)
Recommended Max.
Hose Length
M/M 30 Ft 10
12.0 Metres / Sec²
M
