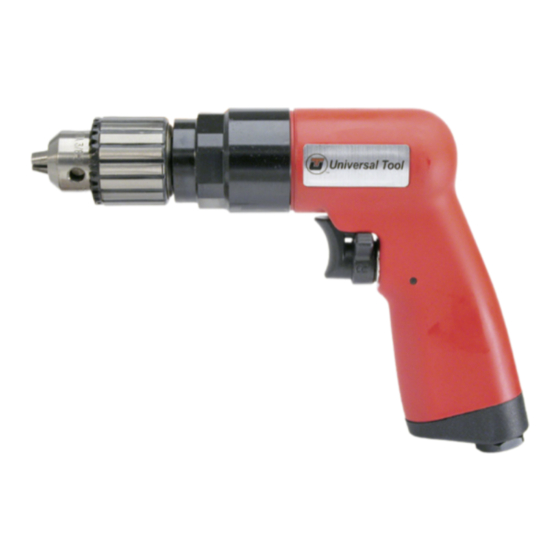

Universal Tool UT8895 General Safety Information & Replacement Parts

3/8-in. drill
Hide thumbs Also See for UT8895:
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
Universal Tool
™
General Safety Information & Replacement Parts

TABLE OF CONTENTS

General Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Air Compressor and Air Tool Safety . . . . . . . . . . . . . . . . . . . 2-3
Tool Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Maintenance / Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Service Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
WARNING: Risk of injury to persons. Read and
understand operation instructions. Always become familiar
with all the instructions and warnings before operating any
pneumatic tool.
UT8895
UT8895R
Reversible
UT8895/ UT8895R
FLORIDA-PNEUMATIC.COM
Please contact 1-800-356-3392 for further assistance.
3/8-IN. DRILL
DRILLS

Advertisement

Table of Contents
loading

Related Manuals for Universal Tool UT8895

Summary of Contents for Universal Tool UT8895

  • Page 1: Table Of Contents

    UT8895/ UT8895R Universal Tool 3/8-IN. DRILL DRILLS ™ General Safety Information & Replacement Parts UT8895 UT8895R Reversible TABLE OF CONTENTS General Safety Information ......2 Air Compressor and Air Tool Safety .

  • Page 2: General Safety Information

    • Whipping hoses can cause severe injury. Always check for dam- power. aged or loose hoses and fittings. • Make sure there are no electrical cables, gas pipes etc. that could • Whenever universal twist couplings (claw couplings) are used, lock cause a hazard if damaged by use of the tool. pins must be installed. • Do not exceed the maximum air pressure stated on the tool. 7.2.2.10 DUST AND FUME HAZARDS • Use whip check safety cables to safeguard against possible hose to • Dust from some work processes can cause cancer, birth defects or tool and hose to hose connection failure. other respiratory diseases. Risk assessment of these hazards and • Never carry an air tool by the hose. implementation of appropriate controls is essential. Universal Tool a Division of Florida-Pneumatic Manufacturing Corporation 851 Jupiter Park Lane, Jupiter FL 33458...

  • Page 3: Air Compressor And Air Tool Safety

    Av. Air Cons Model (HP) (kW) Style (RPM) Exhaust Chuck (lb.) (Kg) (in.) (mm) Pressure (NPT) (I.D. in.) (cfm) (cfm) UT8895 0.66 Ported 2,600 Handle 3/8" 7.75 90 psi-6.2 bar 1/4" 3/8" 18.4 UT8895R 0.59 Ported 1,800 Handle 3/8" 7.75 90 psi-6.2 bar...

  • Page 4: Installation

    □ Recommended lubricants: Air tool oil or any other high grade turbine oil containing moisture absorbent, rust inhibitors, metal wetting agents, and an EP (extreme pressure) additive. Universal Tool a Division of Florida-Pneumatic Manufacturing Corporation 851 Jupiter Park Lane, Jupiter FL 33458...

  • Page 5: Operation

    Operation Operating the drill Changing the rotation direction □ This 3/8" Pistol Grip Drill is designed to operate on 90 PSIG. □ The direction of the bit rotation is reversible. Lower pressure (below 90 PSIG) will reduce performance □ Control the rotation direction by moving the side-mounted of the tool.

  • Page 6: Troubleshooting

    Warranty Limited Warranty: Universal Tool warrants its tools to be free from defects in material and workmanship for one year from the date of purchase. This warranty does not apply to tools which have been abused, misused, modified or repaired by someone other than Universal Tool or its authorized service centers.

  • Page 7: Service Parts

    UT8895/ UT8895R Service Parts / Exploded View Drawing 3/8-IN. DRILL Part Number Description Part Number Description Qty. 9389501 AIR INLET 9389517 ROTOR BLADES 9389502 DEFLECTOR 9389518 BALL BEARING 9389502-1 GASKET 9389519 REAR PLATE 9389503 SPRING 9389520 ROTOR 9328804VN VALVE 9389521...
  • Page 8 Universal Tool ™ Questions, problems, missing parts? Call Customer Service 8 a.m.-5 p.m., EST, Monday-Friday 1-800-356-3392 FLORIDA-PNEUMATIC.COM Retain this manual for future use. Universal Tool a Division of Florida-Pneumatic Manufacturing Corporation 851 Jupiter Park Lane, Jupiter FL 33458...
