Universal Tool UT8741A Operator Instructions

Operator Instructions
Includes - Foreseen Use, Work Stations, Putting Into Service,
Operating, Dismantling, Assembly and Safety Rules
Manufacturer/Supplier
Universal Air Tool Company Limited
Unit 8
Lane End Industrial Park
High Wycombe
Bucks
HP14 3BY
Tel No (01494) 883300
Product Nett Weight
2.20 lbs
1.0 Kg
Air Pressure
Recommended Working
Recommended Minimum
Maximum
Personal Safety Equipment
Use - Safety Glasses
Use - Safety Gloves
Use - Safety Boots
Use - Breathing Masks
Use - Ear Protectors
Foreseen Use Of Tool
This drill is designed for the purpose of drilling holes in all types
of materials, i.e. metals, wood, stone, plastics etc. using drilling
bits designed for this purpose. It may be used with other forms
of cutting tools, polishing devices or for sanding using coated
abrasive products. Before using any such products first check
with the manufacturer their suitability for use with this type of
drill. Do not use bonded abrasive products (i.e. grinding wheels)
or saw blades or any device which has a permitted safe working
speed less than the free speed of the drill.
Do not use this drill for any other purpose than that specified
without consulting the manufacturer or the manufacturer's
authorised supplier.
Work Stations
The tool should only be
used as a handheld hand
operated tool. It is always
recommended that the
tool is used when
standing on the solid floor.
It can be used in other
positions but before any
such use, the operator
must be in a secure
position having a firm grip
and footing and be aware
that the drill can develop a
torque reaction see
section "Operating".
Fax No (01494) 883237
Recommended Use Of
Balancer Or Support
No
6.3 bar 90 PSI
n/a n/a
bar PSI
7.0 bar 10.0 PSI
Yes
Important
Read these instructions carefully before installing, operating,
servicing or repairing this tool. Keep these instructions in a safe
accessible place.
Product Type

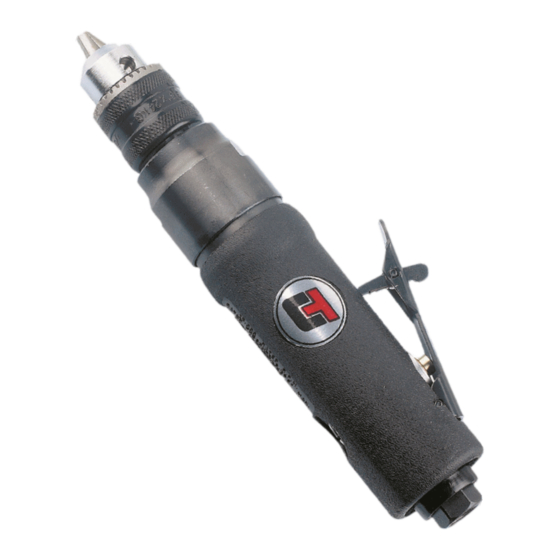

Straight Lever Type Drill
Model No/Nos
UT8741A
Recommended Hose Bore
Size - Minimum
3/8 Ins 10
Noise Level Sound Pressure Level 91.9 dB(A)
Sound Power Level 104.5 dB(A)
Test Method Tested in accordance with Pneurop
test code PN8NTC1 and ISO Standard 3744
Vibration Level
Test Method Tested in accordance with ISO
standard 8662/1
Putting Into Service
Air Supply
Use a clean lubricated air supply that will give a measured air
pressure at the tool of 90 p.s.i./6.3 bar when the tool is running
with the trigger fully depressed. Use recommended hose size
and length. It is recommended that the tool is connected to the

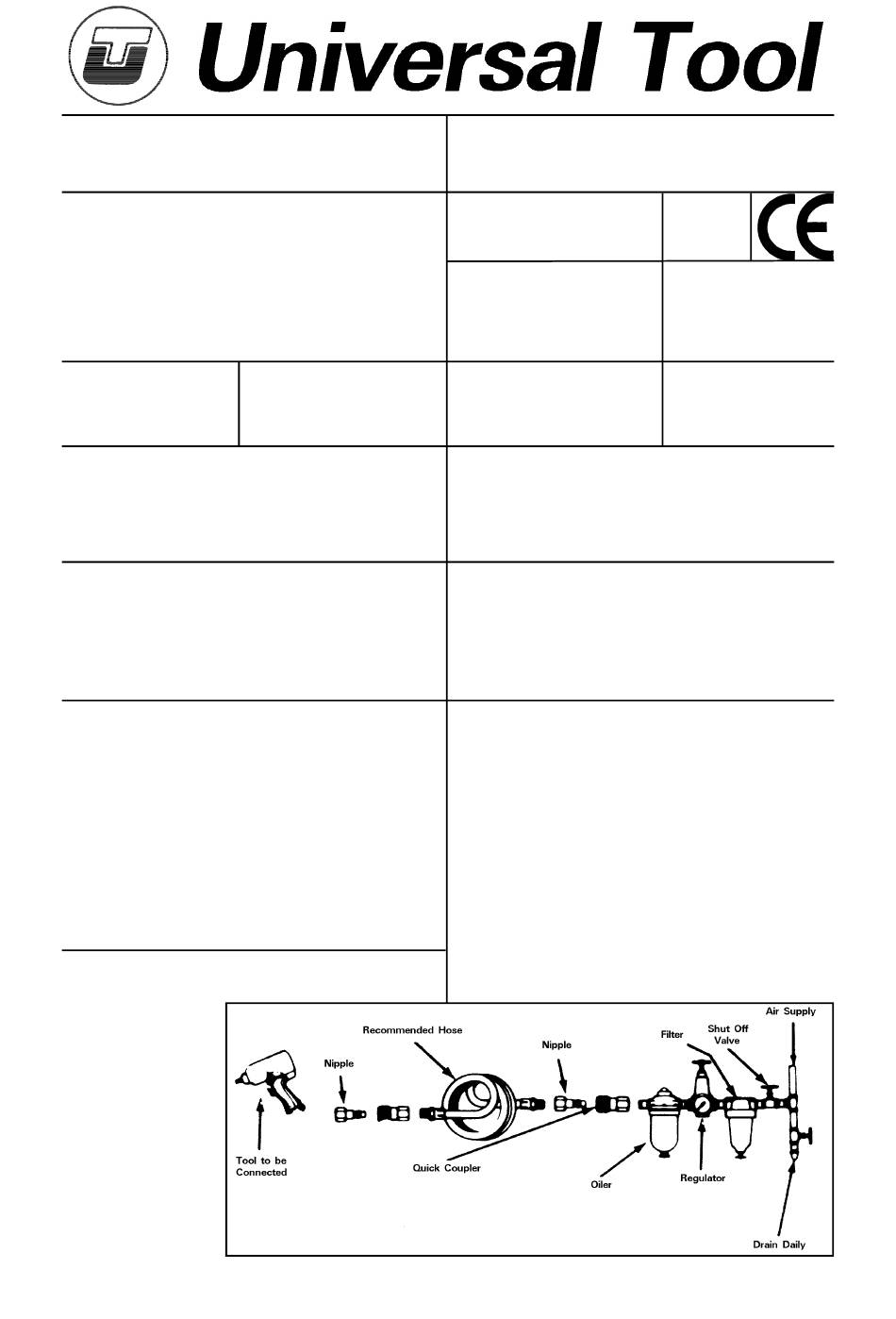

air supply as shown in figure 1. Do not connect the tool to the
air line system without incorporating an easy to reach and
operate air shut off valve. The air supply should be lubricated. It
is strongly recommended that an air filter, regulator, lubricator
(FRL) is used as shown in Figure 1 as this will supply clean,
lubricated air at the correct pressure to the tool. Details of such
equipment can be obtained from your supplier. If such
equipment is not used then the tool should be lubricated by
shutting off the air supply to the tool, depressurising the line by
pressing the trigger on the tool. Disconnect the air line and pour
Page No 1
RPM
4,500
Cycles Per Min
Serial No (if any)
Recommended Max.
Hose Length
M/M 30 Ft 10
Less than 2.5 Metres / Sec²
M
