Elcomponent SPCMini USB Quick Start Manual

SPCMini
QUICK START GUIDE
Large 3 ½ digit display shows load in
amps
Selector switch for display current
range
'Survey Running' indicator and data
overwrite warning indicator
SETTING THE UNIT UP
Note: For detailed PC Specification and Full User
Manual please see
www.spcloggers.com download
i. Install the PowerPackPro software onto your PC.
ii. Install a PP3 battery into the SPC Mini.
iii. Switch the SPC Mini on by briefly pressing the 'On/Off' button.
Both LEDs will flash twice to indicate that the logger is powered
up, and the digital display will be energised. The blue LED will
continue to flash to indicate that the unit is in Standby (no
logging) mode. The logger is switched off by briefly pressing
the 'on/off' button. Both LEDs will flash once and the digital
display will be extinguished.
Connect the SPC Mini in standby mode to an unused USB port
on your PC. Windows will configure the USB interface from
first time use. A "Found New Hardware" dialogue box at the
bottom left of the screen will confirm "Your New Hardware is
now ready for use".
successfully loaded, windows may ask for a disk, or for
permission to carry out a web search or the relevant driver.
The driver is present on the CD supplied with the product
under the "Drivers" Folder.
In rare cases, particularly on Windows 7 machines, the PC may
not recognise that the SPC Pro has been connected. See
Additional Notes.

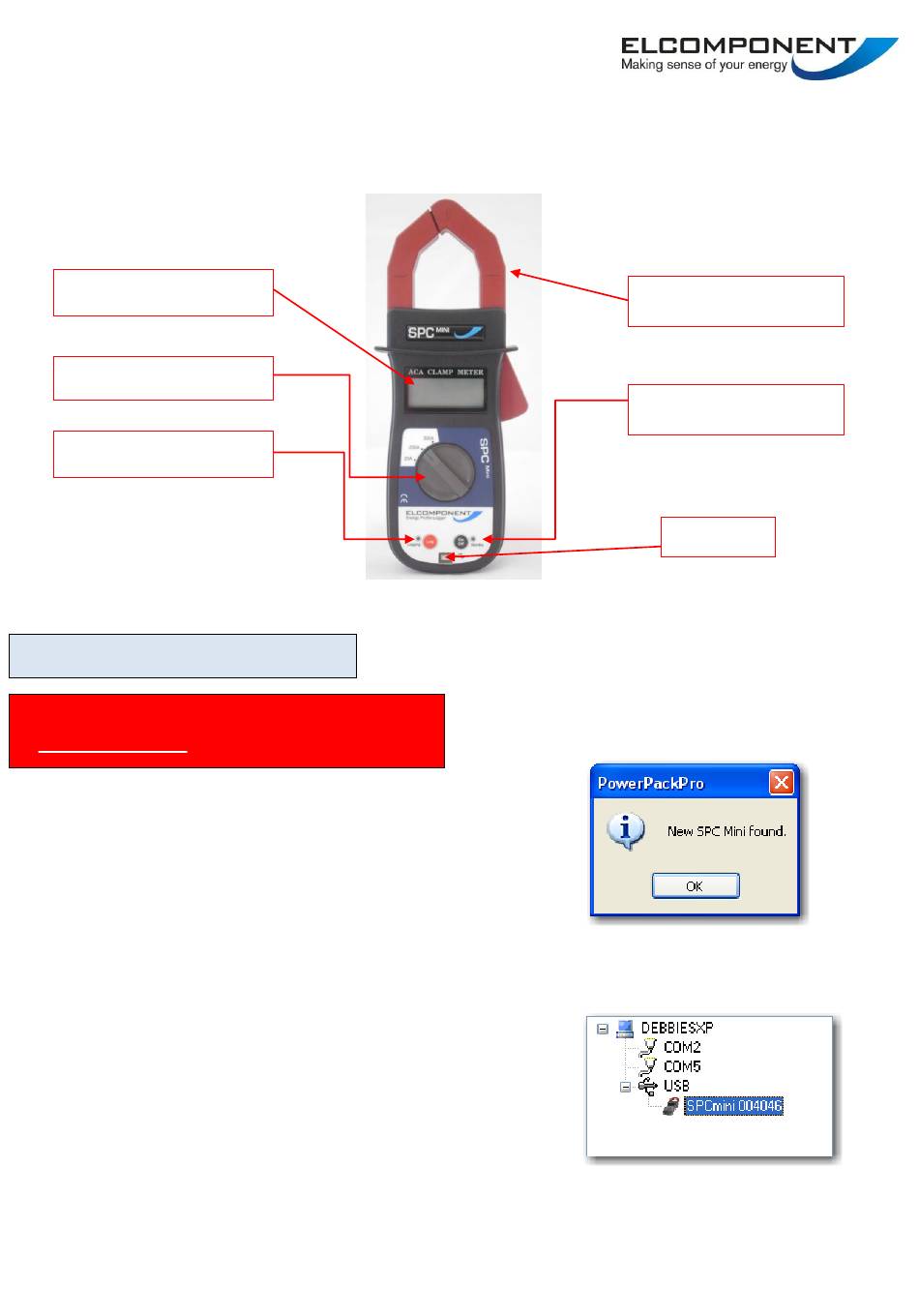

SPCMini USB - 'At A Glance'
PowerPackPro Disk
If the hardware interface is not
iv. With the logger connected to the USB port of your PC, open
PowerPackPro. If a 'Bluetooth Scan' window appears, this
should be cancelled. Within a few seconds the logger will be
found by the PC.
or
v. Press OK and the logger will be added to the tree on the upper
left hand side of the desktop.
www.spcmini.com
Large jaw provides access for cables
up to 40mm diameter
On/Off / Digital Display Switch
USB Socket
Example of typical tree diagram
