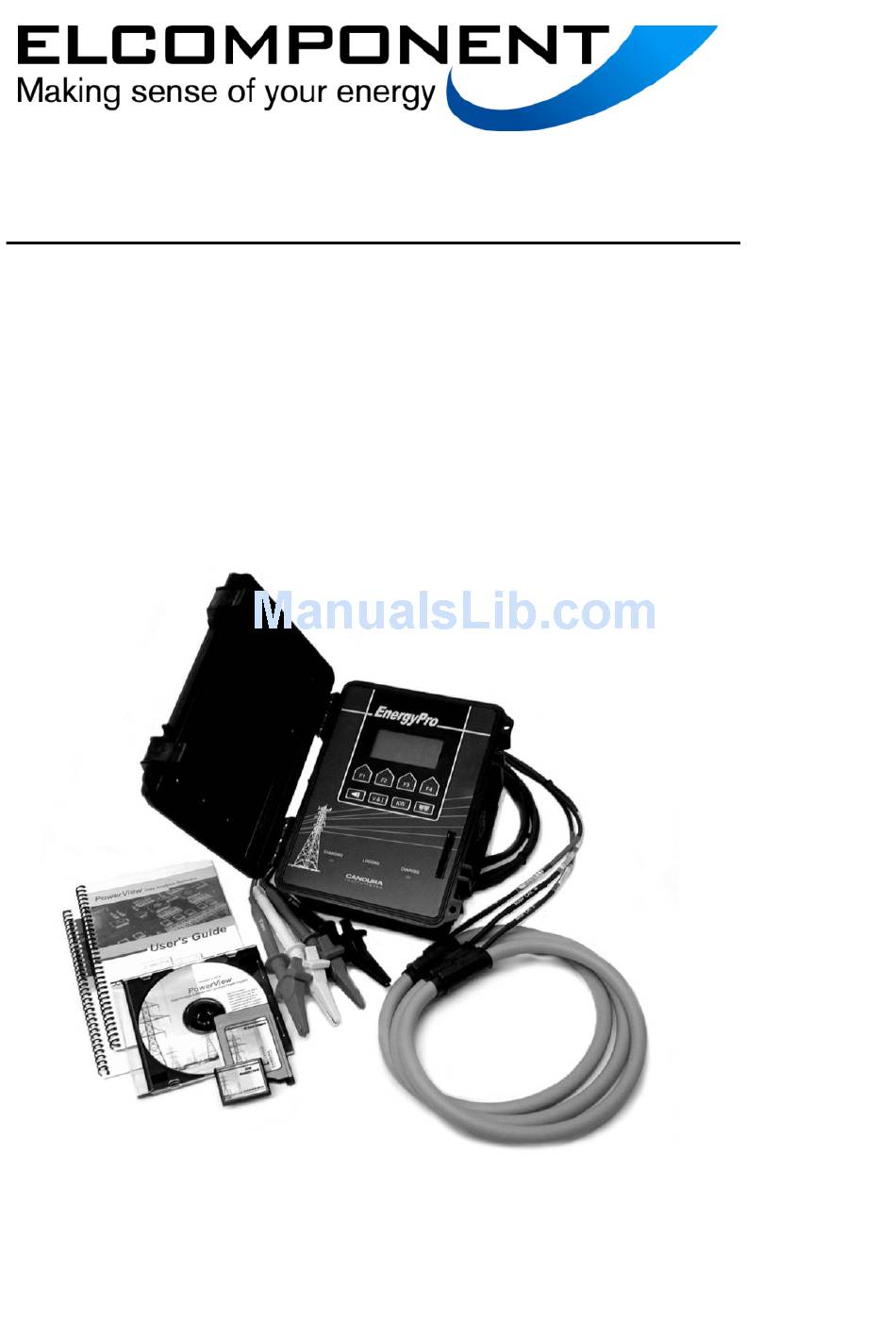

- Page 1 EnergyPro 6 channel Energy Datalogger User's Guide...
- Page 2 All Rights Reserved. The information in this document is subject to change without notice. Elcomponent Ltd has made every effort to ensure the accuracy of this manual. However, Elcomponent Ltd makes no warranties with respect to this documentation and disclaims any implied warranties of merchantability and fitness for a particular purpose.
-
Page 3: Table Of Contents
Table of contents Introduction ....................1 Safety ......................2 Firmware Feature ..................3 Connection Check .................. 3 RMS Data Storage .................. 3 Power Calculations ................3 Frequency ....................3 Energy Usage Display ................3 Logger Connection ..................4 Connection panel ................... 4 LED Indicators .................... -
Page 4: Introduction
▪ Is designed to IEC 1010 specifications. The EnergyPro is a 6 channel energy data logger. It monitors 3 phases of voltage and current and calculates the neutral current. A memory card interface is used to store recorded data on a removable memory card. -
Page 5: Safety
Please read and UNDERSTAND the following information before operating this instrument ▪ The EnergyPro uses a membrane keypad that could be damaged if a sharp object is brought into contact with it. This may expose the operator to potentially hazardous voltages. -
Page 6: Firmware Feature
RMS Data Storage The EnergyPro stores RMS data at set intervals which can be adjusted from 1 second to 30 minutes. The minimum, maximum and average values are stored at the end of each storage interval. -
Page 7: Logger Connection
EnergyPro Datalogger Logger Connection Connection panel The voltage and current connections are colour coded according to individual phases. Either clamp CT’s or a three phase Flex CT may be used to monitor current. The FlexCT has three colour coded connectors for the three currents and a black connector for power. -
Page 8: Logger Operation
Logger Operation Main Screen The main screen of the EnergyPro is a collection of icons that provide access to various configuration setup screens. It also displays general status of the logger such as battery charge state, available memory, and logging status. - Page 9 ▪ Clamp icon - Set CT range. The icon is different depending on whether a clamp CT or FlexCT is used. EnergyPro automatically detects the Flex CT range. ▪ Filing cabinet icon - Set storage rate, The main screen displays the CT range and storage rate beside their respective icons.
-
Page 10: Turning On And Off
Memory Card If there is no memory card the EnergyPro will not record data and the ‘running’ icon will not appear on the main screen. When a memory card is inserted the ‘running’ icon will appear and the EnergyPro is ready to record data. When recording is started the EnergyPro reformats the memory card and any data from a previous survey will be erased. -
Page 11: Clock Setup
EnergyPro Datalogger Logger Operation Clock Setup The clock setup screen will appear when the clock icon on the main screen has been selected. The scroll key (F4) is used to scroll through the fields: year, month, day, hour, minute or second. The + and - signs (F1 and F2) are used to increase or decrease the value. -
Page 12: Clamp Setup
The scroll function key (F4) is used to select the desired clamp range. The checkmark key (F3) is used to confirm the selection and return to the main screen. For Flex CT range selection the switch on the Flex interface box is used. The EnergyPro automatically detects the Flex CT range. -
Page 13: Storage Rate Setup
EnergyPro Datalogger Logger Operation Storage Rate Setup The storage rate setup screen will appear when the filing cabinet icon on the main screen has been selected. The scroll key (F4) is used to select the storage rate for the survey. The maximum survey duration, displayed in the lower drawer of the filing cabinet, will change when the storage rate is changed. -
Page 14: Voltage / Current / Power Factor Display
EnergyPro Datalogger Logger Operation Voltage / Current / Power Factor Display The voltage/current/power factor screen will appear after pressing the button. It displays RMS voltage, RMS current, and power factor for each phase. Leading power factor is displayed with “LD” and lagging power factor is displayed with “LG”. It... -
Page 15: Power Display
EnergyPro Datalogger Logger Operation Power Display The Power screen will appear when the button is pressed. It displays real, apparent and reactive power for each phase. The KWHR key (F3) selects the total energy consumption screen. The total energy consumption screen is zeroed at the start of each survey. -
Page 16: Hook-Up Configurations
1V1I This is for a single phase circuit. The EnergyPro assumes that V1 and CT1 are connected to the same phase. The EnergyPro can detect and automatically correct for a reversed CT clamp. -
Page 17: 1V3I
The power factor is greater than 0.5, leading or lagging The difference in power factor between any of the phases is +/- 30 degrees Automatic Configuration When the “auto” icon is pressed the EnergyPro will examine the voltage and current inputs to... -
Page 18: Connection Icons
EnergyPro Datalogger Logger Operation If the EnergyPro cannot identify the connection type or compensate for a misconnection then the voltage lead and CT icons will be rearranged according to the EnergyPro determinations but there will be no configuration description highlighted. -
Page 19: Start And Stop Logging
Start and Stop logging Before logging, make sure that all connections from the voltage leads and current clamps are secured to the EnergyPro. Remember to insert a memory card and make sure all configurations are set properly. To start recording press and hold the F2 key while in the main screen (under the ‘running’... -
Page 20: Data Download
EnergyPro Datalogger Data Download Recorded data is transferred from EnergyPro to a computer using the memory card. When logging has been stopped the memory card can be removed from the logger. The memory card can be inserted directly into a card reader or, with a... -
Page 21: Notes
