Summary of Contents for Boult Audio ANCHOR

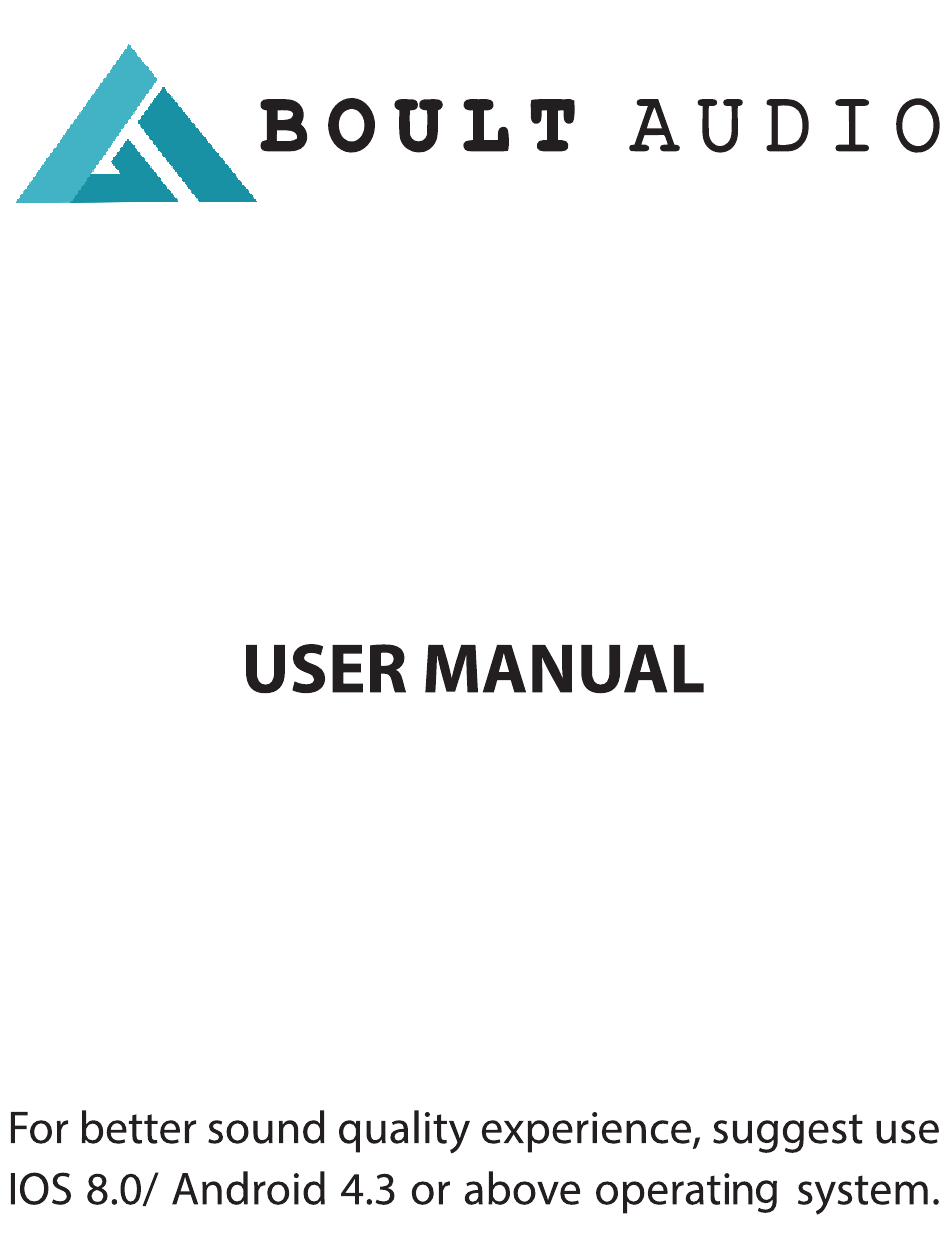

- Page 1 ANCHOR...
-
Page 2: Bluetooth Connection
Please refer to the Safety Precautions mentioned on the last page of this manual before operating this device. BLUETOOTH CONNECTION Pairing You need to pair a BT device with the headphones in advance in order to enjoy listening to wireless music or make phone calls. You can connect to a BT device any time after it has been paired. - Page 3 1- Select “Boult Audio ANCHOR” from the list of devices displayed on the screen of your BT device. - When pairing is complete and a BT connection is established, the status indicator LED on the headphones lights blue for approximately 5 seconds.
- Page 4 Opening The Box Audio Cable USB Charging Cable User Manual Headphones...
-
Page 5: Turning The Power On/Off
Turning The Power ON/OFF Turn on the BT function of the BT device that you want to connect to before hand. Press and hold the headphones' Power on/off button for approximately 3 second. - A beep sound is heard and the status indicator LED lights red for approximately 1 second. - Page 6 Turning the power off Press and hold the Power on/off button for approximately 5 seconds. - “Power off” is heard and the status indicator LED lights purple for approximately 1 second. Note - A small amount of power is consumed even when the power is off.
-
Page 7: Product Introduction
Product Introduction LED Light Volume+/Next ANC On/OFF Button Volume-/Previous 3.5mm line-in Female USB charging port Power On/OFF... -
Page 8: Charging & Battery
Charging & Battery Connect the headphones to a computer or USB AC adapter to Charge the battery. The charging status can be checked from the status indicator LED on the headphones. Charging Status Status Indicator LED color Charging Red Light Red Light Off Fully Charged... - Page 9 - When using the headphones for the first time after purchase or when the remaining power of the rechargeable battery is low charge the battery. Note - When the dedicated charging cable is connected to the headphones, the power of the headphones turns off and the mode becomes charging mode.
- Page 10 Features Boult Audio ANCHOR has BT version 5.0 chip which supports Headset, Handsfree, HSP HFP A2DP and AVRCP protocols. That chip ensures the best possible connection between your earphones and the audio source. SOUND Boult Audio ANCHOR has 40mm sound optimized high quality drivers which provides deep bass frequencies and crisp clear trebles.
-
Page 11: Listening Music
Listening Music Press the key to play/stop music Play / Pause Short press to increase the volume and top volume. Long press to move to the next Volume + / next music Short press to decrease the volume and it will have reminding invoice when it get to top volume Volume - / Previous Long Press to move to the previous... -
Page 12: Troubleshooting
Trouble Shooting The BT function of the headphones does not switch on: -When the rechargeable battery has no power remaining, connect the headphones to a computer using the supplied dedicated charging cable to charge the battery. When the dedicated charging cable is connected to the headphones, the power of the headphones turns off and the mode becomes charging mode. - Page 13 - Check that audio is being played back on the BT device. - Increase the volume. Increase the volume on the BT device if it is necessary to adjust the volume on the BT device. - Pair the devices again. Cannot hear the caller's voice: - Check that the power of the headphones is switched on.
-
Page 14: Specifications
Specifications BT Version Transforming distance Mic Frequency Driver Frequency Compatible Agreement Working voltage 400mA Charging Electric current Hours Charging time last 30Hours (wireless connecting only) 30Hours (ANC function only) Playing time (Volume at 60%) 20Hours (with both Wireless connecting and ANC) -
Page 15: Precautions For Use
Precautions for Use Be sure to read the Owner’s Manual of the device that want to connect. - Check the volume settings when using the headphone on public transport or in public places and make sure you do not disturb people around you. - Page 16 Disposal of Electrical Items Disposal Of Electrical ltems This marking shown on the product or its literature indicates that it should not be disposed with other household waste at the end of the lifespan. To prevent possible harm to the environment or human health from in controlled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.
