Summary of Contents for TECOM BT3070
- Page 1 User Manual for BT3070 Bluetooth Stereo Headphone BT3070 Bluetooth Stereo Headphone User's Guide...
- Page 2 CAUTION: Avoid using BT3070 headphone with the volume turned up for a long time. Doing so can damage your hearing. It is advisable to keep the volume at a moderate level at all times. Copyright © 2005, TECOM Co., Ltd All rights reserved.
-
Page 3: Table Of Contents
II. Setup BT3070 Headphone..................6 2.1、 Turn on/off stereo headphone ..............6 2.2、 Pairing with devices..................6 2.3、 Connecting BT3070 headphone with multiple devices ......11 2.4、 Charging headphone ................. 11 III. Play Music with BT3070 Headphone ..............13 IV. Make/Answer Calls with BT3070 Headphone ........... 15 V. -

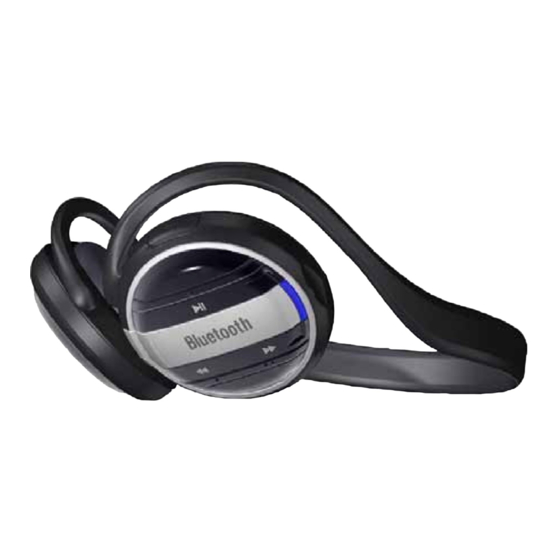

Page 4: About Bt3070 Stereo Headphone
Volume Up Play/ Pause/ Stop/ Pairing Button Blue/ Red Status LED Indicator Retractable Microphone Forward Backward Volume Down < Right side > Orange LED Charging Indicator Power On/ Off Floating Slider Mini USB Charging Socket BT3070 Bluetooth Stereo Headphone User's Guide... -
Page 5: General Features
1.2、 General Features BT3070 is equipped with a retractable microphone and Phone Call: supports Bluetooth hand-free profile for wireless phone call. Music Streaming: BT3070 supports Bluetooth A2DP (Advanced Audio Distribution Profile). User can enjoy omni-direction high quality wireless music play up to 15 meters away. -
Page 6: Setup Bt3070 Headphone
LED indicator flash blue and red alternately – 2 short tones will be heard. Set your Dongle or mobile phone or other device to “discover” the BT3070 headphone and then pair with it. Please follow Dongle /or phone or other devices instruction guide. - Page 7 Dongle will find the BT3070 headphone, right click to find out its related services. It will require the PIN code, please confirm with PIN = 0000 (4 zero’s). In case of unsuccessful pairing please repeat above steps. BT3070 Bluetooth Stereo Headphone User's Guide...
- Page 8 Nokia 6230 for example: Steps Actions Illustration Click “Menu” button first. Select “Settings”. Select “Connectivity” BT3070 Bluetooth Stereo Headphone User's Guide...
- Page 9 Select “Bluetooth” Select “Paired devices” Please click “New” to search for the BT3070 headphone. BT3070 Bluetooth Stereo Headphone User's Guide...
- Page 10 Click “Connect” to connect with the BT3070 headphone. When connected, mobile phone’s operating tone will automatically be transferred to your headphone.(Depend on mobile’s type, some of mobiles may be fail to hear operate tone from BT3070 after connected.) BT3070 Bluetooth Stereo Headphone User's Guide...
-
Page 11: Connecting Bt3070 Headphone With Multiple Devices
If you hear warning tone regularly (every 10 seconds), it stands for BT3070 in the low battery mode. Try to charge the headphone as below:... - Page 12 AC adaptor to charge. When the LED indicator turns to solid orange, headphone is charging. When the LED indicator goes off, the headphone is fully charged. The headphone may take 2.5 hours to fully charge. BT3070 Bluetooth Stereo Headphone User's Guide...
-
Page 13: Play Music With Bt3070 Headphone
III. Play Music with BT3070 Headphone To play music or other audio file, ensure that BT3070 headphone is connected with another device (PC, MP3-player etc.). The left side of BT3070 headphone is used for remote control the stereo music. Functions... - Page 14 Microphone to end an music active call. Reconnect Tap the Play button once A short tone reconnect stereo service with paired audio source. (Dongle etc.) * When achieve maximum volume, a warning tone will be heard. BT3070 Bluetooth Stereo Headphone User's Guide...
-
Page 15: Make/Answer Calls With Bt3070 Headphone
IV. Make/Answer Calls with BT3070 Headphone To make/answer a call with BT3070 headphone, please make sure headphone has connected to the mobile phone. Actions Remote control Tone Illustration commands Make a call with Before making a call from A short tone... - Page 16 Retractable Microphone. Cancel an Press and hold the Play A short tone outgoing call button 1 second during dialing cancel outgoing call. ** When achieve maximum volume, a warning tone will be heard. BT3070 Bluetooth Stereo Headphone User's Guide...
-
Page 17: The Led Indicator Mean
Regularly consecutive flashing 3 times every 10 seconds – Low battery warning Flashing blue and red light Flashing every 0.6 second – In pairing/ Incoming call/ alternately Outgoing call Solid orange light Charging (light switch off when fully charge) BT3070 Bluetooth Stereo Headphone User's Guide...
