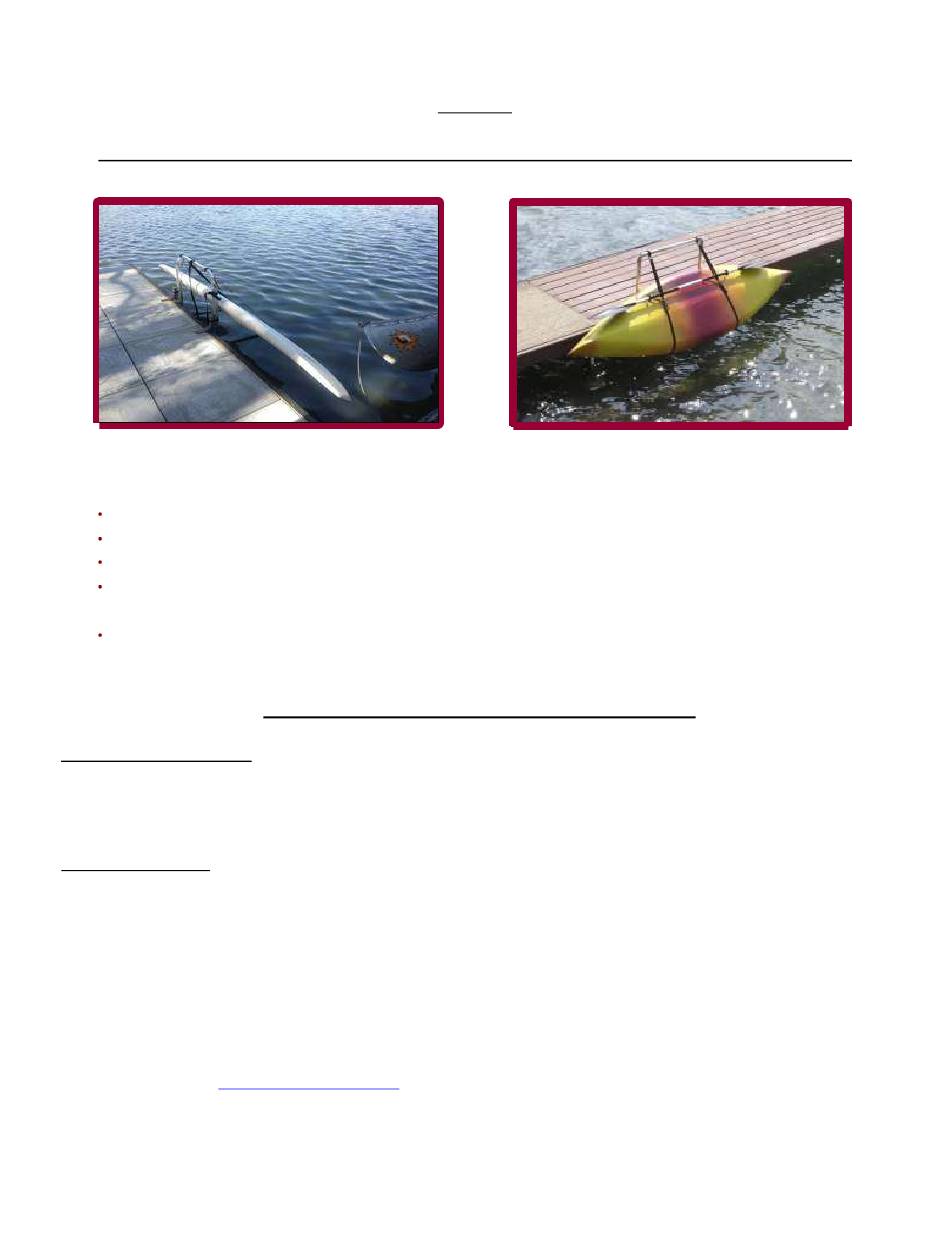

Assembly, Installation, Setup, and Operating Instruction
- ShoreMaster Mount Models; Series 300 -
Holds Kayaks / Paddleboards up to 100 pounds.
For ShoreMaster Infinity Docks RS4 and RS7
Mounts to the Dock Siderail
ShoreMaster Connectors (qty 2) must be purchased from your
ShoreMaster Dealer prior to installation.
Tools are required (7/16 & 9/16) Open End Wrenches) for initial
installation.
Dock Model DS300 - Aluminum Dockside Operation
- Operates from the Dockside Only.
- Holds your Kayak / Paddleboard 5 to 17 inches below the dock surface.
- Accommodates Freeboard (Dock Surface to Water Level) height up to 30 inches.
Model WS300 - Aluminum Waterside Operation
- Operates from the Waterside Only.
- Holds your Kayak / Paddleboard 5 to 17 inches below the dock surface.
- Accommodates Freeboard (Dock Surface to Water Level) height up to 36 inches.
Please read these instructions carefully before using this product and save this
manual for future use.
For assistance, please call: 585 - 734 - 7374
Or send email to:
info@DockCraft.com
"
The DockSider"
Patented
OM300 - 072121
A Kayak / Paddleboard Lift and Dock Storage Rack
DockCraft Industries LLC
3694 Nibawauka Beach
Canandaigua, New York 14424
Page 1 of 12
TM
Some
Assembly
Required
SM
Advertisement
Related Manuals for DockCraft DockSider
Summary of Contents for DockCraft DockSider
- Page 1 “ The DockSider” Patented Assembly, Installation, Setup, and Operating Instruction OM300 - 072121 - ShoreMaster Mount Models; Series 300 - Holds Kayaks / Paddleboards up to 100 pounds. Some For ShoreMaster Infinity Docks RS4 and RS7 Assembly Mounts to the Dock Siderail...
- Page 2 11. Do not enter or exit your Kayak / Paddleboard when your kayak is engaged within “The DockSider” ; in the loading or storage position. 12. Do not install your Kayak / Paddleboard Storage Rack such that “The DockSider” is near or in contact with any electrical or Dock Structural components.
- Page 3 Remove all parts from the box and remove the dock mount from the pivot lateral by unwrapping the mini wrap. If any parts are missing from the package (in type or quantity), do not assemble and contact DockCraft Industries immediately.
- Page 4 Assembly Instruction Attach Cradle Handle : 1 - Position Handle over Cradle. 2 - Slide the Handle over extension on Cradle. 3 - Depress Snap Button on Cradle. 4 - Seat Handle until Snap Button pops through the Handle hole. 5 - Repeat process for the other side of the Cradle.
- Page 5 Insert Clevis Pins to set height of rack from water - continued Waterside Rack Hole 4 Hole 4 Hole 2 Circular Retaining Ring Hole 2 Clevis Pin Circular Retaining Ring Head Clevis Pin Head Thread Webbing through Cam Buckle : 8 –...
- Page 6 Completed Assemblies Dockside Operation Model - DS100 Waterside Operation Model - WS100 Shore Master Mount Installation With the Purchase the Series 300 ShoreMaster Mount You also have to purchase the ShoreMaster With your Lift and Dock Storage Rack Connector (Qty 2) from you ShoreMaster Dealer Accessory Connector Nuts And Handle 3/8 Screws, Lock Washers, Flat Washers...
- Page 7 Shore Master Mount Installation - continued Then attach the mount from above to the RS 4 or 7 (depending on your Infinity Dock) – Accessory Bracket with the hardware provided to the Accessory Connector purchased from your ShoreMaster Dealer. Insert the Lock Washer then Flat Washer on the Screw, then insert the screw through the mounting angle and Connector Bracket and secure with Flange nut provided with the Connector Bracket.
- Page 8 Installation Procedure for Your - Series 100 Docksider Kayak Storage Rack to Water Level Adjustment: Now that the Mounts are in place; Mount the Cradle Assembly to them. If the distance to the water from the dock decking is: 10 to 22 inches: insert clevis pin in the 2nd hole of the pivot lateral into the top Slot of the mounting bracket.
- Page 9 Pivot Lateral and Dock Mount Latch Plate The Installation is Complete SETUP of “The DockSider” Now that the installation is complete, it is now time to SETUP your Kayak Rack to “fit” your Kayak. Webbing Length Adjustment : As a result of the assembly procedure, the mark on the webbing should be located at the cam buckle.
- Page 10 SETUP of “The DockSider” - continued 3 - Load your Kayak into your rack and rotate to the Kayak Storage Position by: a: Rotating the Cradle toward the water such that the handle is parallel with the water. With the Dockside Operation model do this using the tether strap.
- Page 11 Now that the webbing length is set, Secure Loose end of webbing length as follows: Position the 1st Webbing Keeper approximately 12 to 15 inches down from the cradle handle; on each web strap. Thread the loose end of webbing through Webbing Keeper (each side of unit) Cam Buckle Loose End of Webbing Cam Buckle Kayak End of Webbing...
- Page 12 You’re DONE - just Load / Latch / and walk away! WE SINCERLY HOPE YOU ENJOY THE CONVENIENCE OF DockCraft Industries LLC “The DockSider” 3694 Nibawauka Beach For assistance, please call: 585 – 734 – 7374...
