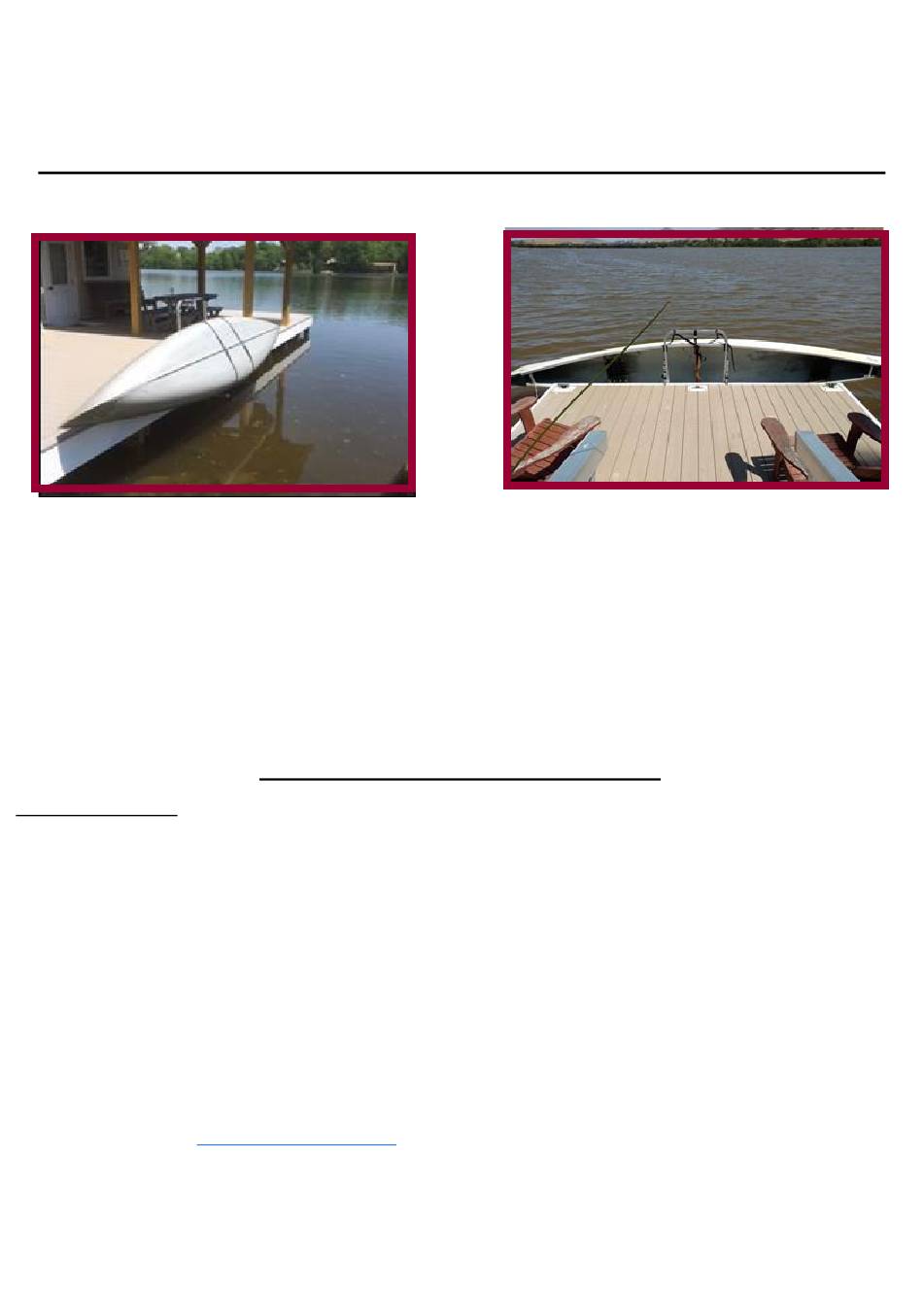

Assembly, Installation, Setup, and Operating Instruction
- Canoe Rack Bolt On Model; Series 100 -
• Holds Canoes up to 100 pounds.
• For Docks with Wood or Composite Wood Decking.
• Docks with Aluminum or Vinyl Decking need added support
• Designed for standard dock decking thickness of up to 1 ½ inches.
• Tools are required (Drill with 1/2 drill bit) for initial installation
Model CR 100 - Bolt On Mount
- Holds your Canoe 5 to 17 inches below the dock surface.
- Includes a Pulley System which reduces the Pull required to Lift
- Accommodates Freeboard (Dock Surface to Water Level) height up to 36 inches.
Please read these instructions carefully before using this product and save this
manual for future use.
For assistance, please call: 585 – 734 – 7374
Or send email to:
"The DockSider"
OM CR 100 – 7-11-2021
A Canoe Lift and Dock Storage Rack
info@DockCraft.com
DockCraft Industries LLC
3694 Nibawauka Beach
Canandaigua, New York 14424
Patented
Page 1 of 15
TM
Some
Assembly
Required
Advertisement
Related Manuals for DockCraft 100 Series
Summary of Contents for DockCraft 100 Series
- Page 1 Please read these instructions carefully before using this product and save this manual for future use. For assistance, please call: 585 – 734 – 7374 Or send email to: info@DockCraft.com DockCraft Industries LLC 3694 Nibawauka Beach Canandaigua, New York 14424 Page 1 of 15...
- Page 2 6. To ensure proper use, do not attempt to modify this product in any manner. Please refer to the manual if questions arise. 7. If further assistance is needed, please contact DockCraft Industries prior to use. 8. Do not allow children or adults to lean on, play on, around, or with the “The DockSider”...
- Page 3 How do you make a warranty claim? • Please contact DockCraft Industries for a Return Material Authorization (RMA) number before returning items. A shipping address will be provided at that time. What does your warranty not cover? •...
- Page 4 Assembly Instructions Attach Cradle Handle : 1 - Position Handle over Cradle. 2 - Slide the Handle over extension on Cradle. 3 - Depress Snap Button on Cradle. 4 - Seat Handle until Snap Button pops through the Handle hole. 5 - Repeat process for the other side Cradle.
- Page 5 Assembly Instructions - continued Thread Webbing through Cam Buckle : 8 – Obtain one of the Cam Buckles and Depress Lever 9 – Thread Webbing through opening in the Cam Buckle Ensure that the Single Bar on the Web Keeper is positioned as shown. 10 –...
- Page 6 Assembly Instructions – continued Attach the rope to the Pulley System. This Can be done now or after the unit is assembled to the dock. Get the rope and tie two half knot next to the pulley assembly on the cradle handle. The knot should be on the side of the pulley handle that has the head of the screw mounting the pullies.
- Page 7 Installation Procedure for Your - Series 100 Docksider Series 100 – Bolt On Dock Mount Installation 1 - Select a position on your dock where you choose to mount your Kayak Storage Rack. Ensure there are not any electrical or structural components in the area. 2 - The Docksider should be mounted on 1 section of your dock.
- Page 8 Installation - Continued 7 –Similarly to Step #6, Mount the second Dock Mount Canoe Rack Position the second dock mount as shown above Mark and drill as described in Step 6 Install Snaptogglers and secure mount to dock with screws. Align Cradle Assembly with the installed Dock Mounts Engage the pins on the Pivot Laterals in top slot of the Dock Mounts and seat.
- Page 9 SETUP of “The DockSider” TM - continued To “Lock” the Brackets and Pivot Laterals together insert “Locking Pin” on both sides of unit. If Clevis Pin with Circular Retaining Ring in Hole 2 or 4 of Pivot Lateral is seated in the Top Slot. Insert 2 Clevis Pin through hole in bracket and secure with...
- Page 10 SETUP of “The DockSider” - continued Webbing Length Adjustment : continued 3 – Continued b: Float your kayak into the rack (between the handle and the webbing) such that the cockpit seat is centered in the cradle. c: Lift your kayak just out of the water. If your kayak wants to lean to the right or left, check the straps to see if there is an excessive amount of strap on the side that’s leaning, if so shorten.
- Page 11 Now that the webbing length is set, Secure Loose end of webbing length as follows: Position the 1st Webbing Keeper approximately 12 to 15 inches down from the cradle handle; on each web strap. Thread the loose end of webbing through Webbing Keeper (each side of unit) Cam Buckle Loose End of Webbing Cam Buckle Kayak End of Webbing...
- Page 12 9 - If you choose, store your paddle between the webbing under the cam buckle. You’re DONE - just Load / Latch / and walk away! WE SINCERELY HOPE YOU ENJOY THE CONVIENIENCE OF DockCraft Industries LLC “The DockSider” 3694 Nibawauka Beach For assistance, please call: 585 –...
- Page 13 “The DockSider” Mounting Options DockCraft Industries Bolt On Mount for “The DockSider” - Canoe Dock Lift - Canoe Dock Rack Location #2 - 5 inches Bolt on Mount Location #1 - 2 1/4 inches - Bolts in 2 locations per Mount...
- Page 14 Wood Dock with Decking Flush with Side Board Location #2 - 5 inches Location #1 - 2 1/4 inches Hardware - Standard Hardware - 1/4 x 2 ½ inch Stainless Steel lag Screw – location #1, not included - ¼ inch Stainless Steel washer, each location Wood Decking Support Ideal for situations when the Installation Requirements...
- Page 15 Aluminum / Vinyl Decking directly We do not recommend attaching the Bolt On Kayak / Paddle board Surface Mount to Aluminum / Vinyl decking as the Decking material is thin, however supported by 3 vertical members. Given you choose to mount the Surface (Bolt On) Mount to Aluminum or Vinyl Decking; it is highly recommended that you install a backer board in the area of the mounting positions.
