FAQ
Q:
Rear-view mirror is not powered.
A:
Make sure that ACC, B+, GND are well connected, and that the filter box's fuse is burnt out.
Q:
The video displayed on the screen is overlapped by the rolling shadow of another video.
A:

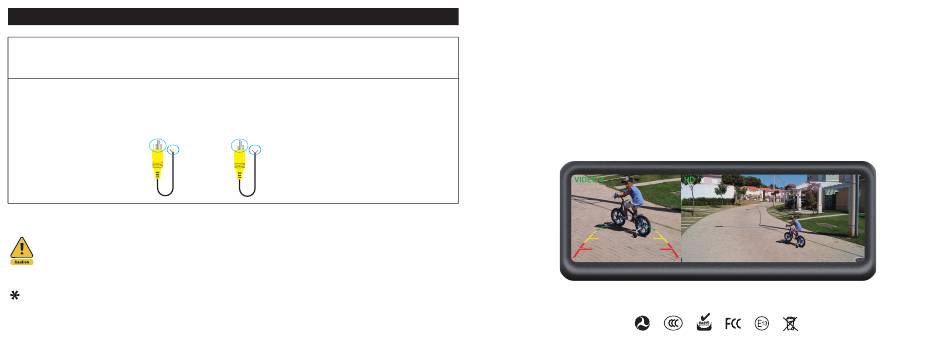

Make sure that the video extension interface is in good condition. If this still exists, it is recommended to use
a video extension line with a shielding layer, as shown in the following picture.
NG
No entertainment video is permit when driving except the demo for navigation and backup camera
display!
This manual is only for your reference, please check the actual product as the standard!
Serial No.: 2018QK073A1H4WT230315
OK
7.2 Inch Rear View Mirror Monitor
with Full Display Screen
U S E R M A N U A L
Advertisement
Table of Contents
Related Manuals for Germid QK-073A-1H4W-T23
Summary of Contents for Germid QK-073A-1H4W-T23
- Page 1 7.2 Inch Rear View Mirror Monitor Rear-view mirror is not powered. with Full Display Screen Make sure that ACC, B+, GND are well connected, and that the filter box's fuse is burnt out. The video displayed on the screen is overlapped by the rolling shadow of another video. Make sure that the video extension interface is in good condition.
-
Page 2: Table Of Contents
TABLE OF CONTENTS CONTENTS The package contains the following: 01 Rearview mirror monitor 05 Wire control 02 Wire harness 06 HD camera 03 User manual 07 Extension cable 01 CONTENTS 04 Wire cover 08 Adapter cable 02 FEATURES 03 SPECIFICATIONS 04 HOW TO INSTALL REVERSE CAMERA 05 HOW TO INSTALL MIRROR MONITOR 06 HOW TO WIRE... -
Page 3: Features
FEATURES 7.2 inch wide LCD display screen Back-up camera display 1 HD and 4 analog video inputs Automatic brightness adjustment Adjustable Back up guide lines Channel switch among VIDEO1, VIDEO2, VIDEO3, VIDEO4, HD Split screen Trigger wires for reverse/turn left/turn right Touch screen button SPECIFICATIONS Screen size: 7.2 inch... -
Page 4: How To Install Mirror Monitor
NOTE: Always use caution, DO NOT force the mount. We will not be responsible for broken windshields. If you HOW TO INSTALL MIRROR MONITOR are not sure how to remove or re-install the mirror seek trained, qualified help. Remove the original mirror Different cars have different brackets. -
Page 5: How To Wire
HOW TO WIRE How to install wire harness, wire cover, cable cover and connector cable on the mirror? NOTE: The picture may not be in line with this type of mirror, just to demonstrate the installation method. to left camera to right camera to front camera to back up camera... -
Page 6: Channel Switch
CHANNEL SWITCH This mirror can be switched on the following 9 display modes through the CH key or the wire control. VIDEO 1 VIDEO 1 VIDEO 4 VIDEO 4 VIDEO 4 mode VIDEO 4+HD mode VIDEO 1 mode VIDEO 1+HD mode VIDEO 3 VIDEO 3 VIDEO 3 mode... -
Page 7: Touch Buttons Operation
TOUCH BUTTONS OPERATION MENU SETTING In “ full display screen” state, short press “ “ ” to enter into menu setting interface .“ ” ” and “ ” are to change the figure of each setting. BRIGHTNESS Non-trigger and reversing trigger state:Turn on/off screen In menu setting state: Parameter down The others state: unusable short press to enter into “menu setting”... -
Page 8: Back Up Camera Display
BACK UP CAMERA DISPLAY REAR CAR DISTANCE JUDGEMENT ASSIST When the car is in reverse, the monitor will automatically display back up camera. Why must adjust the outline line in the back car? By ordinary rearview mirror, the driver can see only one rear lane. However, 3 rear lanes's image can be showed in our long strip screen, which widen the driver's viewing angle greatly. - Page 9 Specific instruction 3. Watch the picture in the phone, compare with the Type A: rear car window is fan-shaped, as shown in the fugure 1: iamge in rearview mirror screen. 1. Turn on rearview mirror, make it display the image in the back of car.
-
Page 10: Adjustable Guide Line
How to adjust the guide line ADJUSTABLE GUIDE LINE Angle-L: 25 H-L: 91 V-L: 210 According to the site of standard reference line, we can put references such Angle-R: 27 H-R: 95 V-R: 210 About guide line as desks in the back side of the car. Compared with the marked references, Generally, to help drivers estimate the we can adjust the sites and angles of two guide lines displayed on the distance from obstacles, there are three...
