Summary of Contents for Keypad KP250

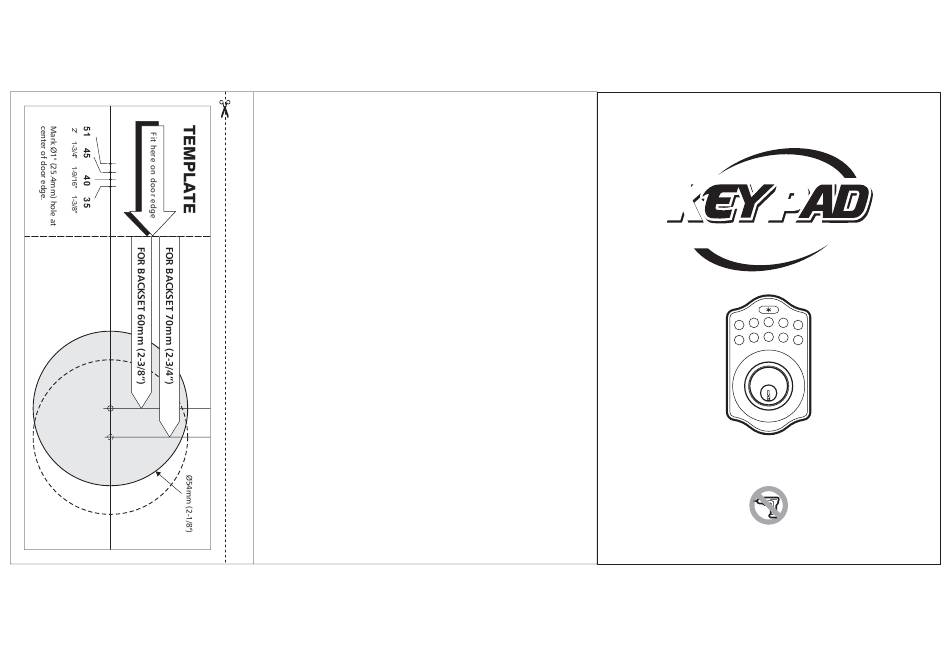

- Page 1 ELECTRONIC DEADB LT LOCK USER MANUAL Attention : Please do not use the "electronic" screwdriver for installation.
- Page 2 3. Install Latch KEYPAD ELECTRONIC DEADBOLT a. Insert the latch and ensure it is paralleled to INSTALLATION INSTRUCTIONS the door face. Mark the outline of the faceplate, then take out the latch. The BACKSET is the distance between the center of cross bore and edge bore of the door.
- Page 3 Please refer to the diagram below for Cylinder Installation. Turn the turn piece to right for 45 degrees Place deadbolt against keypad with tailpiece in horizontal when it's left handed door. Turn Piece position inserted through hub of the latch.
- Page 4 ■ Specification Function 1.Battery Four AA 1.5V Alkaline batteries. 2.Low Battery 2-1 The batteries should be changed immediately once you see the LED flashes in red and hear constant beep sounds for about 10 seconds when press programming button. 2-2 All settings are retained in the memory and will not be affected even if the battery is completely dead.
- Page 5 12.Unlock the door 6-1 The preset User Code is 1234. Please delete it and create your personal code 12-1 The door will be unlocked by key or pressing User Code on keypad from outside when first time operation. or by interior turn-piece.
-
Page 6: Function Programming
Detect Left / Right Hand Door Installation 18.Illumination Enter PC The LED Keypad will light up when pressing any button for ease of operating in the dark. Remark : Please run the door-handing identifying process before function set up when first time installation or default setting restore. - Page 7 If so, please re-install or change the battery. If not, please check if the cable is appropriately connected. Remark : Auto-locking and Keypad locking function will be invalid when User Codes are disabled. The lock can only be operated by key during the time.
- Page 8 Situation 5 The functioning has been normal, but suddenly, the latch bolt locks up, and the turn piece inside cannot be rotated, not even with the key. Causes : The detection of latch bolt position is abnormal. Solutions : Please take out one battery first, then press any button on the front panel for electric discharge, and put the battery back next.
