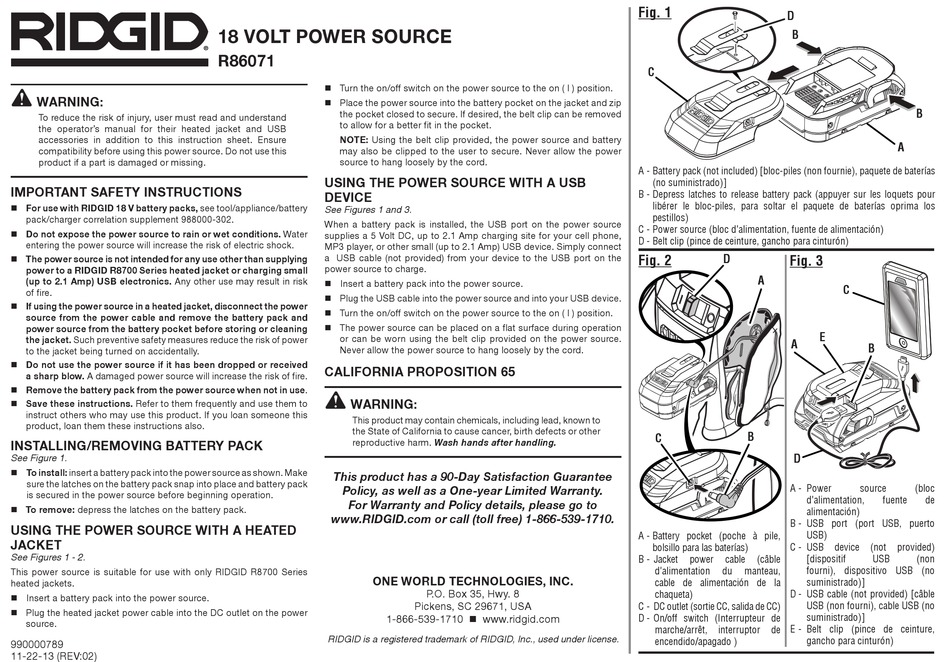

RIDGID R86071 Operator's Manual

WARNING:
To reduce the risk of injury, user must read and understand
the operator's manual for their heated jacket and USB
accessories in addition to this instruction sheet. Ensure
compatibility before using this power source. Do not use this
product if a part is damaged or missing.
IMPORTANT SAFETY INSTRUCTIONS
 For use with RIDGID 18 V battery packs, see tool/appliance/battery
pack/charger correlation supplement 988000-302.
 Do not expose the power source to rain or wet conditions. Water
entering the power source will increase the risk of electric shock.
 The power source is not intended for any use other than supplying
power to a RIDGID R8700 Series heated jacket or charging small
(up to 2.1 Amp) USB electronics. Any other use may result in risk
of fire.
 If using the power source in a heated jacket, disconnect the power
source from the power cable and remove the battery pack and
power source from the battery pocket before storing or cleaning
the jacket. Such preventive safety measures reduce the risk of power
to the jacket being turned on accidentally.
 Do not use the power source if it has been dropped or received
a sharp blow. A damaged power source will increase the risk of fire.
 Remove the battery pack from the power source when not in use.
 Save these instructions. Refer to them frequently and use them to
instruct others who may use this product. If you loan someone this
product, loan them these instructions also.
INSTALLING/REMOVING BATTERY PACK
See Figure 1.
 To install: insert a battery pack into the power source as shown. Make
sure the latches on the battery pack snap into place and battery pack
is secured in the power source before beginning operation.
 To remove: depress the latches on the battery pack.
USING THE POWER SOURCE WITH A HEATED
JACKET
See Figures 1 - 2.
This power source is suitable for use with only RIDGID R8700 Series
heated jackets.
 Insert a battery pack into the power source.
 Plug the heated jacket power cable into the DC outlet on the power
source.
990000789
11-22-13 (REV:02)
18 VOLT POWER SOURCE
R86071
 Turn the on/off switch on the power source to the on ( l ) position.
 Place the power source into the battery pocket on the jacket and zip
the pocket closed to secure. If desired, the belt clip can be removed
to allow for a better fit in the pocket.
NOTE: Using the belt clip provided, the power source and battery
may also be clipped to the user to secure. Never allow the power
source to hang loosely by the cord.
USING THE POWER SOURCE WITH A USB
DEVICE
See Figures 1 and 3.
When a battery pack is installed, the USB port on the power source
supplies a 5 Volt DC, up to 2.1 Amp charging site for your cell phone,
MP3 player, or other small (up to 2.1 Amp) USB device. Simply connect
a USB cable (not provided) from your device to the USB port on the
power source to charge.
 Insert a battery pack into the power source.
 Plug the USB cable into the power source and into your USB device.
 Turn the on/off switch on the power source to the on ( l ) position.
 The power source can be placed on a flat surface during operation
or can be worn using the belt clip provided on the power source.
Never allow the power source to hang loosely by the cord.
CALIFORNIA PROPOSITION 65
WARNING:
This product may contain chemicals, including lead, known to
the State of California to cause cancer, birth defects or other
reproductive harm. Wash hands after handling.
This product has a 90-Day Satisfaction Guarantee
Policy, as well as a One-year Limited Warranty.
For Warranty and Policy details, please go to
www.RIDGID.com or call (toll free) 1-866-539-1710.
ONE WORLD TECHNOLOGIES, INC.
1-866-539-1710  www.ridgid.com
RIDGID is a registered trademark of RIDGID, Inc., used under license.
P.O. Box 35, Hwy. 8
Pickens, SC 29671, USA
Fig. 1
D
B
C
A - Battery pack (not included) [bloc-piles (non fournie), paquete de baterías
(no suministrado)]
B - Depress latches to release battery pack (appuyer sur les loquets pour
libérer le bloc-piles, para soltar el paquete de baterías oprima los
pestillos)
C - Power source (bloc d'alimentation, fuente de alimentación)
D - Belt clip (pince de ceinture, gancho para cinturón)
Fig. 2 D
Fig. 3
A
A
B
C
D
A - Power
d'alimentation,
alimentación)
B - USB port (port USB, puerto
USB)
A - Battery pocket (poche à pile,
bolsillo para las baterías) C - USB
B - Jacket power cable (câble [dispositif
fourni), dispositivo USB (no
d'alimentation du manteau,
suministrado)]
cable de alimentación de la
chaqueta) D - USB cable (not provided) [câble
C - DC outlet (sortie CC, salida de CC) USB (non fourni), cable USB (no
suministrado)]
D - On/off switch (Interrupteur de
E - Belt clip (pince de ceinture,
marche/arrêt, interruptor de
encendido/apagado ) gancho para cinturón)
B
A
C
E
B
source (bloc
fuente de
device (not provided)
USB (non
