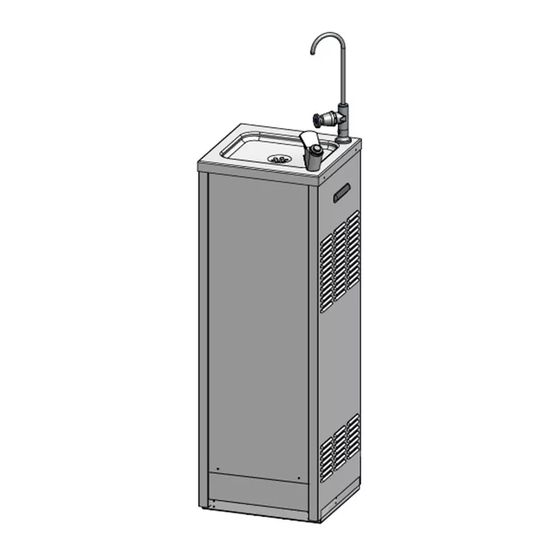

- Page 1 Freestanding Water Chiller with Hands-Free Bottle Filler Installation and Maintenance Instructions DFSA121-PBBF I00443_Dec 21 1300 369 273 | info@enware.com.au enware.com.au...
-
Page 2: Product Description
Enware water chillers supply chilled water on demand. Supplied with heavy duty bottle filler - to fill a bottle push the bottle against the button and hold. Drinking bubbler can be removed, to optimise hygiene, with supplied deletion kit. Suitable for public areas such as gyms, building sites and office buildings. -
Page 3: Technical Data
IMPORTANT - This must be read before proceeding with installation 1. Enware products are to be installed in accordance with the Plumbing Code of Australia (PCA) and AS/NZS3500. Installations not complying with PCA and AS/NZS 3500 may void the product and performance warranty provisions. Reference should also be made to the ABCB and Local Government regulations when considering the choice of, and the installation of these products. - Page 4 WARNING: • Enware water chillers are not suitable for outdoor use. The appliance must not be exposed to rain. • Stainless steel panel (non-powder coated) chillers are not designed or recommended for use in corrosive environments such as enclosed chlorinated pool areas.
-
Page 5: Installation
DFSA121-PBBF water chiller is ready for final assembly on site. Remove water chiller and bottle filler from the packaging. FRONT PANEL Remove the front panel of the chiller unit by unscrewing FIXING SCREWS the two fixing screws. Pull panel forward and slide down to remove the front panel. -
Page 6: Water Chiller Installation
Flush all foreign matter from the water supply line, then connect water supply to the 1/2” BSP male inlet fitting located at the rear of unit. SEE IMAGE 5 Call 1300 369 273 www.enware.com.au... - Page 7 9. Replace front panel of the water chiller and secure the panel using screws provided. Connect power cable and turn power back on. Remove protective film from stainless steel panels. www.enware.com.au Call 1300 369 27...
-
Page 8: Operation
Push Button. Water flow stops automatically. Pull Away to Stop Water Flow BUBBLER To turn on water flow, push button down. PUSH To turn off water flow, let go of button. Water flow stops automatically. Call 1300 369 273 www.enware.com.au... -
Page 9: Flow Adjustment
SPOUT 3. Replace the push button and hex cover nut and tighten. BODY 4. Re-test bubbler fountain for correct operation. TYPE 61 SPANNER FOR CARTRIDGE RETAINING NUT (892530) INLET SCREEN MESH (892531) www.enware.com.au Call 1300 369 27... - Page 10 (BUB260L) Backnut Spacer Push Knob Button Spacer Backnut Dome Push Button 1/2” BSP x Grub Screw 1/4” tube adaptor ENWARE ENWARE PART PART SALES CODE SALES CODE Top assembly - bottle filler push Spout O-ring 672357 BUB267 button Regulator O-ring BS008...
-
Page 11: Water Chiller
CARTRIDGE (BUB294) SPOUT BODY TYPE 61 SPANNER FOR CARTRIDGE RETAINING NUT (892530) INLET SCREEN MESH (892531) PART ENWARE SALES CODE Cartridge BUB294 Bubbler complete BUB290 WATER CHILLER REFRIGERATION SYSTEM - The entire refrigeration system is hermetically sealed. Should the system fail to operate, contact the manufacturer immediately. -
Page 12: Service And Maintenance
The internal condenser and fans should be kept free of dust/ lint. It should be checked periodically and cleaned with a brush or vacuum cleaner. Water cooler must be disconnected from the power supply before following this procedure. Call 1300 369 273 www.enware.com.au... - Page 13 5. Once the correct dome position is achieved, install the grub screw ensuring it is tightened square against one of the SBA flats underneath to maximize vandal resistance. 6. Re-test the tap for correct operation. 7. If problems persist, refer to TROUBLESHOOTING. www.enware.com.au Call 1300 369 27...
- Page 14 5. Depress the piston to start water flow. Release the piston to stop the flow and check for leakage. If a leak is present refer to Troubleshooting to identify cause of leakage and rectify before proceeding. Call 1300 369 273 www.enware.com.au...
- Page 15 SBA. Refit the seat o-ring and seating washer. Push the piston into the SBA. RE-FITTING THE TOP ASSEMBLY 1. Grease the inside of the dome around spindle mechanism 2. Fit the dome and push button assembly. 3. Adjust the position of dome. SEE DOME ADJUSTMENT www.enware.com.au Call 1300 369 27...
- Page 16 Enware product should be cleaned with a soft damp cloth using only mild liquid detergent or soap and water. Do not use cleaning agents containing a corrosive acid, scouring agent or solvent chemicals. Do not use cream cleaners, as they are abrasive. Epoxy coated surfaces should only be cleaned with a cloth and clear water or mild detergent.
-
Page 17: Troubleshooting
Water supply turned off Turn water on outlet Debris fouling inlet or outlet Remove blockage ports of cartridge Rubbish/debris fouling outlet Remove blockage Water discharge from top Cartridge is damaged Replace cartridge BUB294 of bubbler www.enware.com.au Call 1300 369 27... - Page 18 Use SBA service kit BUB289. (See service and maintenance) Water discharge from top Piston O-rings are worn Replace O-rings using SBA service of dome/ SBA kit BUB289. Re-grease piston (See service and maintenance) Call 1300 369 273 www.enware.com.au...
-
Page 19: Making A Claim
All notifications and accompanying forms must be sent to us marked for the attention of the Enware Australia Pty Except as provided or referred to in this document, we Limited, 9 Endeavour Road, Caringbah NSW 2229. We... - Page 20 ADDRESS: 9 Endeavour Rd Caringbah NSW 2229 Australia POSTAL ADDRESS: P.O. Box 2545, Taren Point NSW 2229 Australia 1300 369 273 (AUS) WWW.ENWARE.COM.AU INFO@ENWARE.COM.AU ABN 23 003 988 314...
