- Page 1 HDFM-1 HIGH DEFINITION CAMERA FOCUS METER INSTRUCTION MANUAL IB-647701 ALL RIGHTS RESERVED...
- Page 2 HDFM-1 TABLE OF CONTENTS DESCRIPTION METER OPERATION INPUT SIGNALS AND CONNECTORS DISPLAY FORMAT DISPLAY FOCUS CARE AND MAINTENANCE BATTERIES ENCLOSURE AUXILIARY EQUIPMENT HDFM-1isb PAGE 1 OF 5...

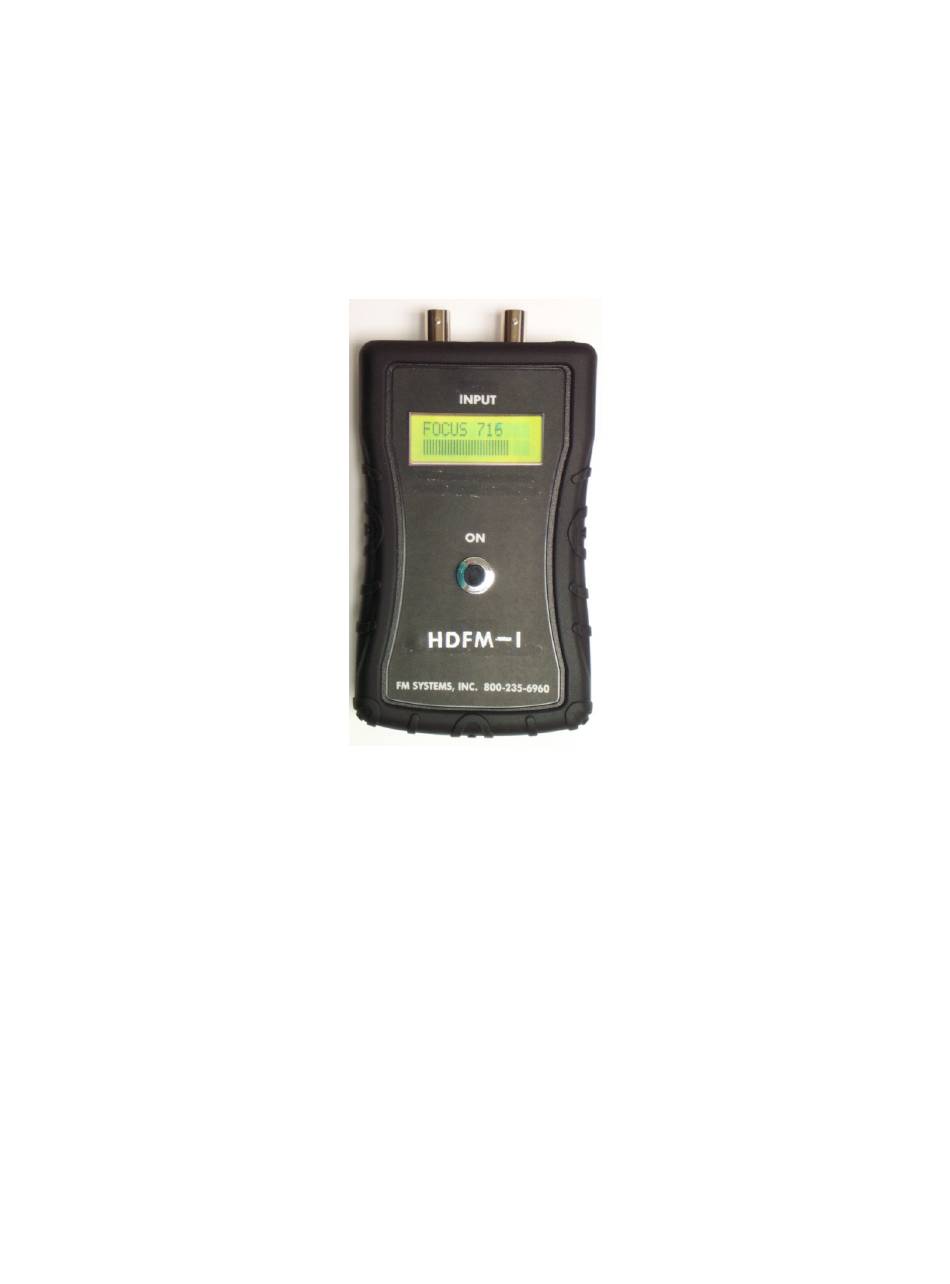

- Page 3 DESCRIPTION: The HDFM-1 is a handheld camera focus meter you can use to set the maximum focus of any TVI, CVI High Definition cameras and any analog cameras without the need for a monitor or the subjective nature of "eyeballing" the cameras image on a small screen. Trying to see the maximum focus point of a High Definition image on a small test monitor in full sun light is all but impossible and leads to many cameras being set to less than the maximum focus point.
- Page 4 If there is no video connected to the unit or the camera is disconnected from the unit during test the display will read “INPUT VIDEO FOCUS MAX #” indicating the video camera needs to be connected to the unit. If video is connected to the use at power up you will not see this display When a video camera is connected to the unit it will test for the Video Format and display one of the following displays indicating the video format being input.
- Page 5 Replace batteries at least once a year even if ordinary use does not discharge the battery because old batteries may leak and cause corrosion damage. If the HDFM-1 fails to operate even after battery replacement, or does not read a known video signal correctly, call the factory for a Return Authorization Number and return it to the factory for repair.
- Page 6 The meter comes with an impact resistant rubber boot to protect it during daily use. AUXILIARY EQUIPMENT: The MC1, MC2, and MC3 are Protective Carry Cases to house and protect the HDFM-1 and your other test meters while being transported. These are very rugged water resistant ABS cases with foam-lined interiors suitable for transporting this meter and other test equipment.
