Telpro PARAGON PRO TROLL 112 Manual

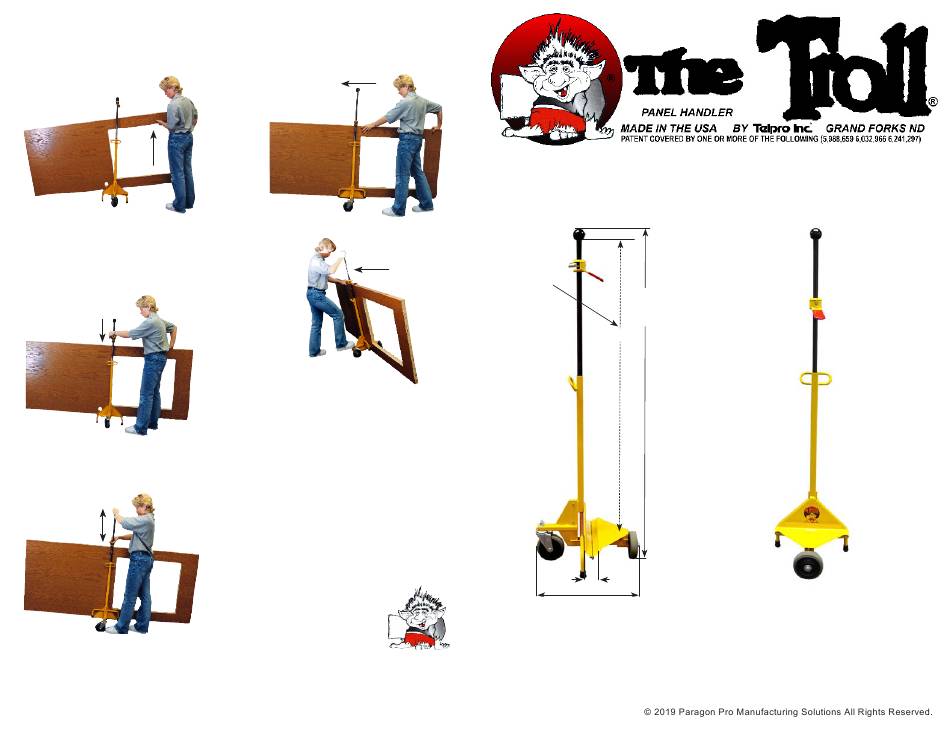

Using the Troll
Step 1
Position the Troll in the middle of the
®
load with the SLIDE CLAMP up and
the LEG PIPE down. Lift one end of the
and place it in the shoe of The
load
®
Troll .
Step 2
Move the SLIDE CLAMP down on the
SLIDE POLE to secure the load.
Step 3
Hold the SLIDE CLAMP down with
one hand and use your other hand
to pull up on the SLIDE POLE. This
raises the stand.
Model 112
®
Step 4
You're now ready to roll.
Step 5
Just tilt the Troll back on the swivel
®
caster, pull it away from the wall and
you're off. You can use this same tilting
®
for easy
action to position the Troll
off-loading when you reach your
destination.
If you have questions about your Troll
Model 112, please call us toll free at 1-
800-448-0222. We can also be reached
on the web at www.telproinc.com or by
mail at Telpro Inc., 7251 South 42nd
Street, Grand Forks, ND 58201. Thank
you for choosing the Troll ® ,
we hope you're happy with
your purchase.
SAVES YOUR BACK +
SPEEDS YOUR WORK =
MAKES YOU MONEY!
Slide clamp will
handle a load
size from 28.5
to 51 inches.
28.5 - 51 In.
®
2 Inch shoe
18 In. overall width
®

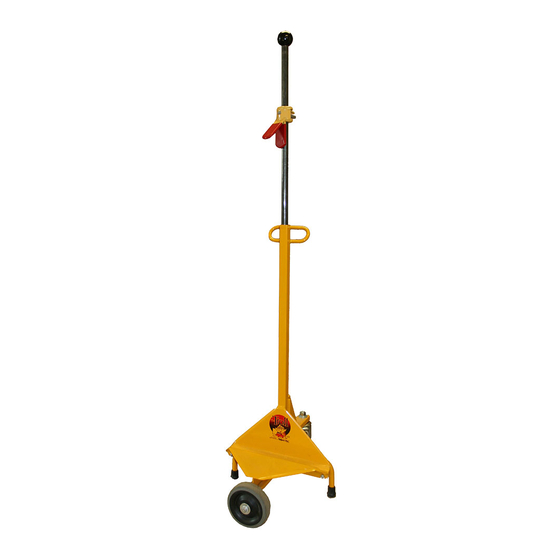

The Troll Panel Handler Model 112 makes light work of hustling drywall,
plywood and other heavy building panels around the work site. Its unigue
design locks the load vertically for easy mobility. Patented omni-directional
design makes fast, safe handling of building loads in tight quarters a snap.
The 250 lb. capacity hauls 4 sheets of half-inch board as well as large
banquet tables and solid core doors.
Form 42-12-00-00.07-10-02
Model 112
53.5 In.
overall
height
