Drywall Lift Storage &
Patents Pending
Model 110
Transportation Cart
WARNING: When transporting, ALWAYS secure the PANELLIFT

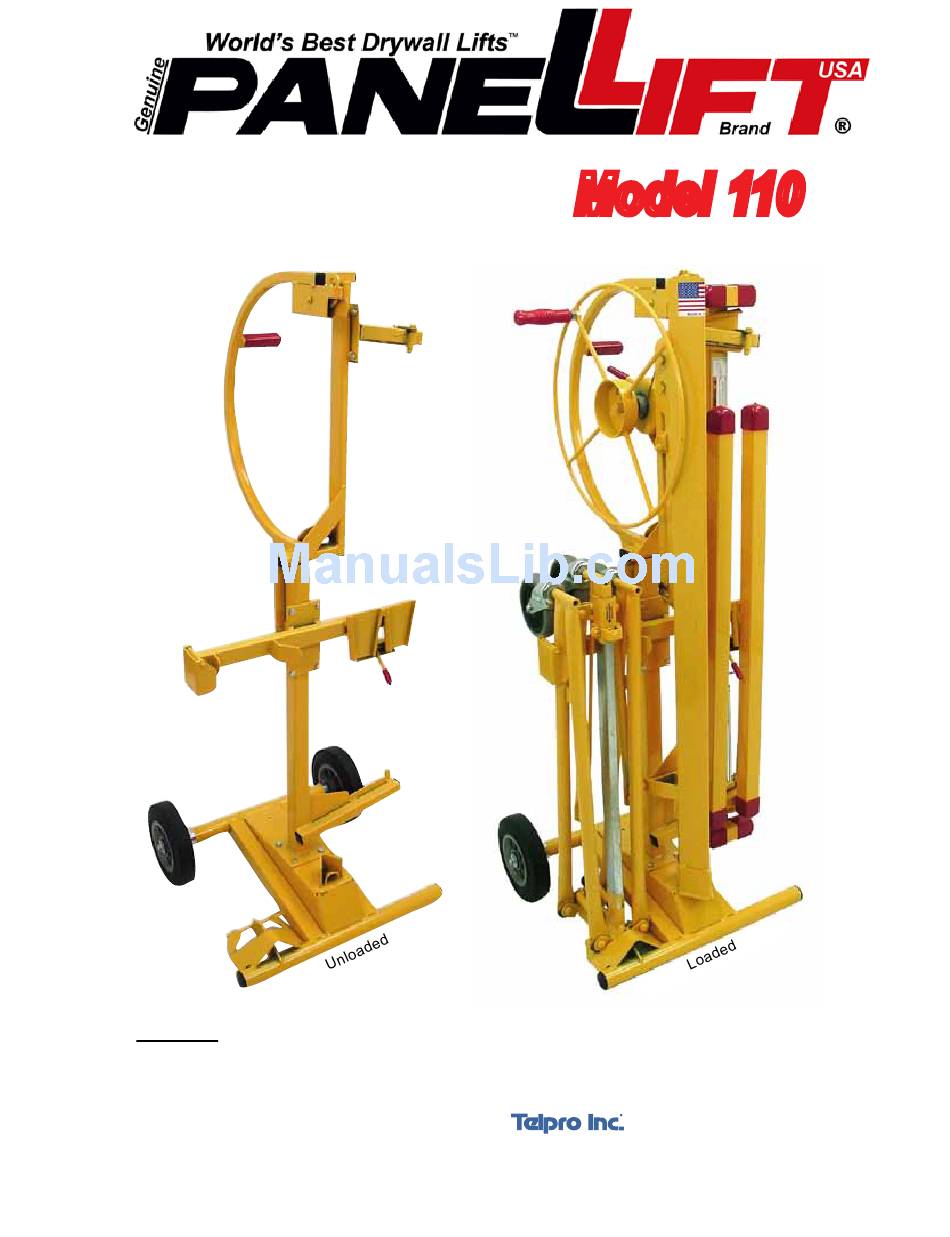

Model 110 Drywall Lift Cart
®
in the vehicle to prevent shifting of the load while in transit. An unsecured load can shift,
possibly resulting in property damage and/or personal injury.
Made in U.S.A by
7251 S 42nd St • Grand Forks, ND • 58201
701-775-0551
www.worldsbestequipment.com
© 2010 Telpro Inc. All Rights Reserved
Form 42-44-00-00 Version 3
Advertisement
Related Manuals for Telpro Panel Lift 110
Summary of Contents for Telpro Panel Lift 110
- Page 1 An unsecured load can shift, possibly resulting in property damage and/or personal injury. Made in U.S.A by 7251 S 42nd St • Grand Forks, ND • 58201 701-775-0551 www.worldsbestequipment.com © 2010 Telpro Inc. All Rights Reserved Form 42-44-00-00 Version 3...
-
Page 2: Initial Assembly
Complete Unit Consists Of: 47-03 47-00 47-05 47-01 47-02 47-06 47-00: Complete Upper Frame Section 47-01: Complete Mid Frame Section 47-02: Complete Cross Section 47-03: Complete Base Section 47-05: Upper Cradle Holder Assembly 47-06: Hardware Kit: -1/4” X 1/2” Hex Bolt: -1/4”... - Page 3 Adjusting Upper Cradle Holder Assem. After hand tightening the fasteners on the Upper Cradle Holding Assembly you will need to adjust the Support to prop- erly fit the Cradle of the PANELLIFT Model 138-2 that will be ® stored there. Narrow ends of tapered pockets must be down...
- Page 4 Mount the lower tapered Cross Arm pocket on the Lower Securely tighten the bolt/lock nut assembly. Start with the Cradle Support as shown above. The narrow end of the Cross lower bolts to minimize movement of the Upper Cradle Support Arm pocket should face to the right toward the center of the Arm while tightening.
- Page 5 Loading the PANELLIFT Model ® 138-2 Drywall Lift onto the Cart Begin with the Cross Arms. Fold the Support Hook back- wards. This will prevent it from rubbing on the other compo- nents when the Cross Arm is stored. Insert the Cross Arm fully into the tapered pocket on the Cross Section until the spring tab on the Cross Arm locks into place.
- Page 6 To load the Frame Assembly, start by mounting the foot of the Frame on the cart Base Section as shown. Angle “C” fits OVER angle “B” and inside angle “A”. Store the Tripod Base Assembly as shown above. Angle “A” inserts beneath angle “C” while sliding over ridge “B”. The Outer leg hinge points “D”...
- Page 7 Handle the loaded PANELLIFT Model 110 Drywall Lift ® Cart as you would any two wheel material handling dolly. Your PANELLIFT Model 138-2 is now securely loaded for con- ® venient transportation or compact storage. When possible, transport the Loaded PANELLIFT ®...
- Page 8 uestions about assembly? Can’t find a part? Need some other help? Call us: 1(800)448.0822 (701)775.0551 We’ll get you set up!
