Summary of Contents for Lilliput PC-701 Pro

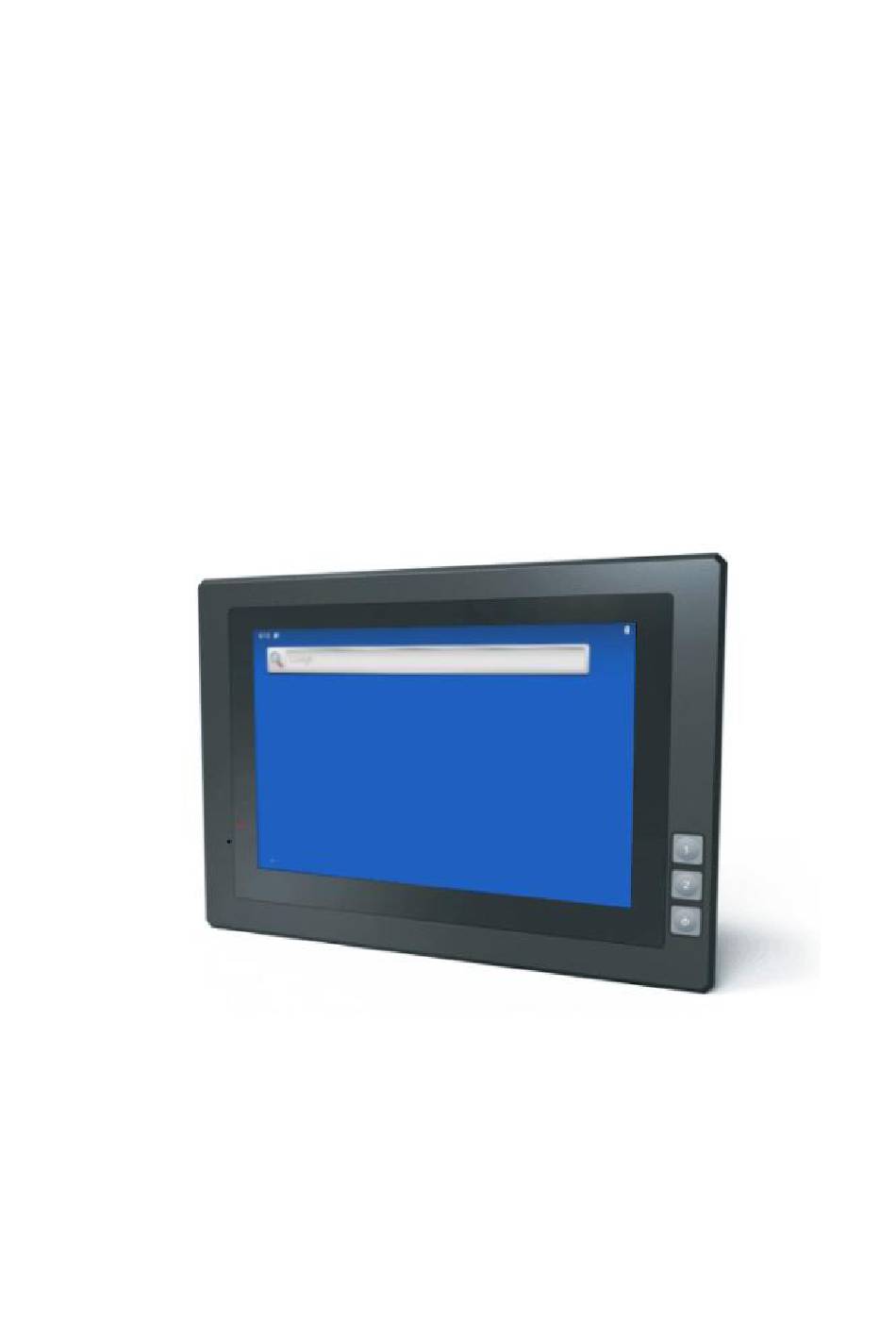

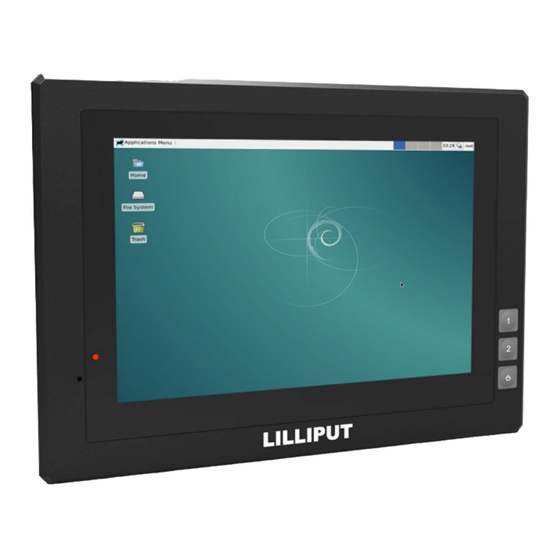

  • Page 1 Embedded Computer User Manual...
  • Page 2: Table Of Contents

    Content Safety maintenance: ..................3 1. Product Description ................4 1.1 Brief Introduction ....................4 1.2 Optional Functions ....................4 1.3. Basic Parameters ....................4 1.4. 3G / 4G Support Parameter & Switch ..............5 2.Structure Function Explanation ..............7 3.
  • Page 3: Safety Maintenance

    Safety maintenance:  It should avoid the humidity and extreme temperature when being used.  Please maintain your system properly to make sure its service life and reduce the damage risk.  Avoid prolonged exposure of the unit to direct sunlight or strong ultraviolet light.
  • Page 4: Product Description

    1. Product Description 1.1 Brief Introduction  7" 16:10 five point capacitive touch screen , 1280×800 physical resolution;  IMX8M mini, Arm Cortex-A53 Quad-Core 1.6GHz, 2G RAM , 16G ROM;  Android 9.0 OS;  RS232/RS485/GPIO/CAN BUS/WLAN/BT/4G/LAN/USB/POE;  Micro SD (TF) card storage, SIM card slot. 1.2 Optional Functions ...
  • Page 5: 4G Support Parameter & Switch

    TF card 1.8V/2.95V, up to 512G USB host 2.0×2 USB Device 2.0×1 CAN2.0B×2 8 (Input and output can be customized by GPIO software, see section 3. Extended Cable Definition for details.) 100M×1, 1000M*1 ( Note: LAN1 port is for Intranet, LAN 2 port is for Internet, both of them are defaulted) RS232×4, or RS232×3 and RS485×1,...
  • Page 6 EMEA/South / Band 5 / Band 7/ Band 8 / Band 20 America WCDMA / HSDPA / HSUPA / HSPA+: Band 1 / Band 2 / Band 5 / Band 8 GSM / GPRS / EDGE: 850 / 900 / 1800 / 1900 LTE: FDD Band 2 / Band 4 / Band 5 / Band Version 3: 12/ Band 13 / Band 17...
  • Page 7: Structure Function Explanation

    2. Structure Function Explanation a. Reset & burn button. b. User-definable button 1 (Default as return). c. User-definable button 2 (Default as home). d. Power on/off button. a. SIM card slot. b. (TF) card slot. c. USB Device(TYPE-C) d. IOIO 2: (RS232 standard interface, connecting with DB9 optional cable to convert to RS232×1 and RS422×1 ports or RS232×1 and RS485×2 ).
  • Page 8: Extended Cable Definition

    100M LAN. 1000M WAN, POE function for optional. Ear jack.(Doesn’t support microphone input) Power interface.(ACC for optional) 3. Extended Cable Definition DB9 standard cable DB9 optional cable Item Definition COM 1 RS232 /dev/ttymxc1;...
  • Page 9 COM 2 RS232 /dev/ttymxc3; COM 4 RS232 /dev/ttymxc2; COM 5 RS232 /dev/ttymxc0; RS422 Red A white Z /dev/ttymxc3; Black B Green Y The first Red A /dev/ttymxc3; RS485 Black B Note: The Y(green) and Z(white) of RS422 can be configured as A and B of second RS485 port, which corresponds to the serial port /dev/ttymxc2.
  • Page 10: Serial Port

    3.1 Serial Port Click Icon to activate ComAssistant Serial port ID: COM1, COM2, COM4 and COM5 Correspondence between RS232 tail line ports and device nodes COM1=/dev/ttymxc1 (print port) COM2=/dev/ttymxc3 (RS232/RS422/The first RS485 optional) COM4=/dev/ttymxc2 (RS232/second RS485 optional) COM5=/dev/ttymxc0 (RS232/Bluetooth optional) RS232×4: Bluetooth is invalid, RS485, RS422 is invalid RS232×3 and RS485×1: Bluetooth is invalid, COM2 is invalid RS232×3 and RS422×1: Bluetooth is invalid, COM2 is invalid...
  • Page 11 1. The boxes in red means the text box for the COM port information received, to display information received by corresponding COM port. 2. The boxes in red means the text input box for the COM port information sent, to edit information sent by corresponding COM port.
  • Page 12: Can Bus Interface

    3.2 CAN BUS Interface adb command: Set the bitrate ( baud rate ) before all operations Example: Set the bitrate of the can0 interface to 125kbps: # ip link set can0 up type can bitrate 125000 Quick test Once the driver is installed and the bitrate is set, the CAN interface has to be started like a standard net interface: # ifconfig can0 up and can be stopped like that:...
  • Page 13 2. How to read or set the value of the gpio GPIO0~7 (IO number) a)When the software configures the IO port as input, (Negative trigger). Configuration command: gpiocontrol read [gpio number] For example: Setting gpio 0 as the input state, and read the input level diamond:/ # gpiocontrol read 0 diamond:/ # Trigger voltage: The logic level is ‘0’, 0~1.5V.
  • Page 14: Acc Setting Path

    When the output IO is disabled, the logic level is ‘1’, and the rated voltage of the IO must be less than 50V. 3.4 ACC Setting Path ACC settings located in ACC Settings under the category of System in the Settings of Android OS.
  • Page 16 ACC settings as shown in Figure 3-4 & Figure 3-5. Mark 1: The main switch of the three functions controlled by ACC, namely, light up the screen, close the screen and shut down. Mark 2: The switch of close screen function controlled by ACC. Mark 3: Click to pop-up dialog box as shown in Figure 3-5, to edit the screen off delay time after ACC outage.
  • Page 17: Meory Card Instructions

    4. Meory Card Instructions  The memory card and the card slot on the device are precision electronic components. Please align to the position accurately when inserting the memory card into the card slot to avoid of damage. Please slightly push the upper edge of the card to loosen it when removing the memory card, then pull it out.
  • Page 18: Operation Guide

    5. Operation Guide 5.1 Basic Operation 5.1.1 Click, Double-click and Slide 5.1.2 Long-press and Drag 5.1.3 Delete...
  • Page 19: Applied

    Long-press the application icon, and drag it to the recycle bin on the top left corner of screen, then press OK to uninstall this app. 5.2 Applied Scroll up to the“ ” icon in the lower side to see all the apps on the device Icon Name Description...
  • Page 20: Mounting Methods

    Icon Name Description Wi-Fi Wi-Fi signal connection and status SIM card No SIM card Network available but not surf the Internet via 2G/3G/4G Mobile Network Signal connection and status Time Current time WI-F Wi-Fi Hotspot available Hotspot Bluetooth Bluetooth available Flight Mode Flight mode status 6.
  • Page 21: Accessories

    Embedded mount 7. Accessories Standard accessories: 1. DC 12V adapter 1 piece 2. CAN/GPIO cable 1 piece 3. DB9 cable(RS232x3) 1 piece 4. Fixed screw 4 pieces...
  • Page 22: Trouble Shootings

    Optional accessories: 1. DB9 cable (RS232x1, RS485, RS422) 1 piece 2. Micro SD card 1 piece 3. 75mm VESA rail slot 1 piece 8. Trouble Shootings · Power Problem 1. Cannot boot up Wrong cable connection a) Connect Extended cable with device first, and connect the AC end of DC adapter with DC input port of Extended cable, then the other end of DC adapter connect with power plug socket.
  • Page 23 Please restart your system if the device has any problem as described above. 4. Incorrect responding to the touch click on screen a) Please calibrate the touch screen. 5. Display screen is misty a) Please check whether the display screen surface has dust filth or not. Please simply wipe with clean and soft cloth.
