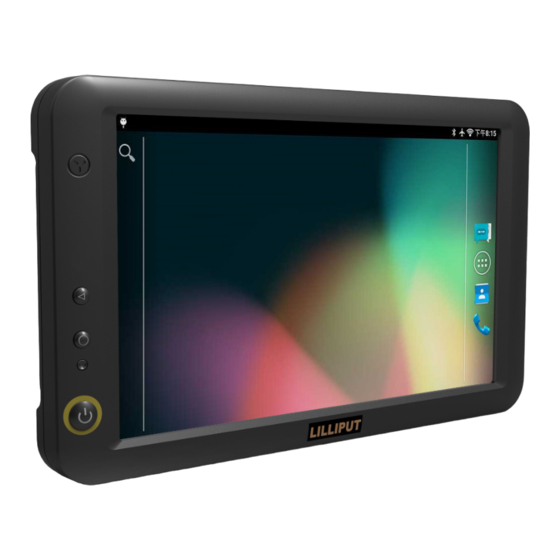

Lilliput PC-7145 User Manual
  1. Manuals
  2. Brands
  3. Lilliput Manuals
  4. Industrial PC
  5. PC-7145
  6. User manual

Lilliput PC-7145 User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Industrial
Computer
User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the PC-7145 and is the answer not in the manual?

Questions and answers

Related Manuals for Lilliput PC-7145

Summary of Contents for Lilliput PC-7145

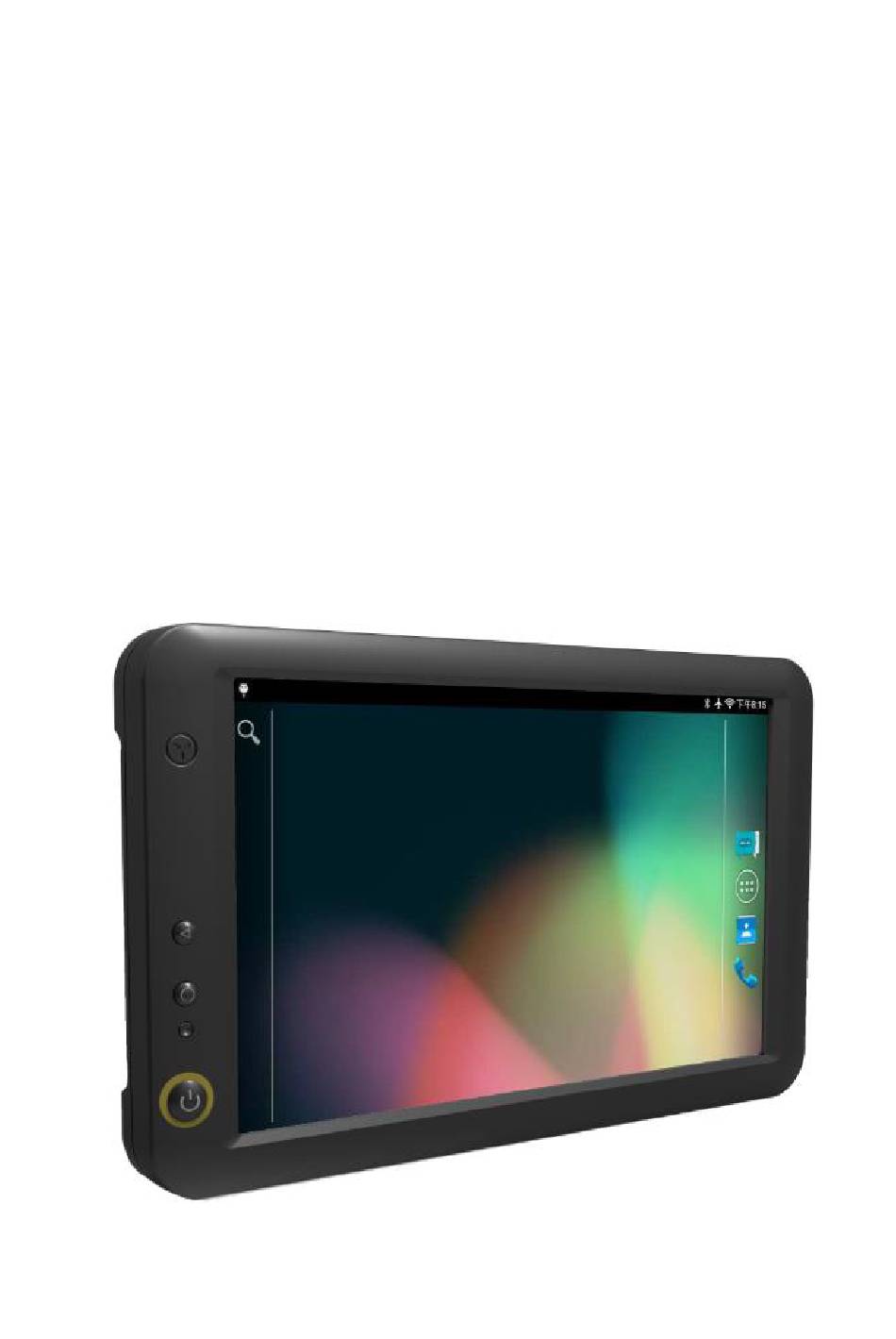

  • Page 1 Industrial Computer User Manual...

  • Page 2: Table Of Contents

    Safety defended: Properly maintain your system to guarantee its service life and reduce the damage risk. ● It should avoid the humidity and extreme temperature when using. ● Avoid being revealed making equipment for a long time under shoot straight at sunlight or intense ultraviolet ray lamp light.

  • Page 3: Product Description

    Product description Power Connection Features ◆ 7" 16:9, 800 480 high resolution; × ◆ OS: Android 5.1.1; ◆ Touch screen control; ◆ 450cd/㎡ high brightness; ◆ Micro SD card storage makes the data reliable, convenient and easy for expansion;...

  • Page 4: Parameter

    Parameter Configuration Parameter CPU Qualcomm Quad core 1.1GHz System configuration Flash 1GB DDR3 Micro SD card , SIM card USB OTG Interface Earphone jack DC power input 2×RS232 interface Wi-Fi version: Wi-Fi + Bluetooth Optional: ACC/GPIO Function 4G version: wi-fi+Bluetooth+3G+4G+GPS Optional: ACC/GPIO Touch Panel Capacitive...
  • Page 5 Description of each part Front Microphone. Back: return to the previous menu. Home: return to the home screen; Long-press and double-click functions can be customized. Reset: to restart system. Power: power on / off. Side Mini USB port: to connect with USB cable.

  • Page 6: Micro Sim Card & Memory Card Instructions

    Earphone jack. 5. G-mouse: serial signal input port. 6. DC power jack 13-Pin to RS232 line 1. Signal input interfaces 2. RS232 interfaces×2 Micro SIM Card & Memory Card Instructions ♦ In order to avoid damaging of the 3G/4G card & memory card, please insert the card smoothly and push slightly before you draw it out.

  • Page 7: Basic Operation

    Insert the memory card as shown as follows, ◆ Find the location of the 3G/4G card or memory card slot, part of the metal contacts facing down forward until it snaps into place. ◆ Insert the 3G/4G card or memory card smoothly to avoid of damaging. ◆...

  • Page 8: Menu

    Delete Long-press the application icon, and drag to the Home screen, then drop to the recycle bin on the right to delete this app. Menu Icon Bar Icon bar shows on the top of screen. Icon Name Description Wi-Fi signal connection and status of signal Wi-Fi weakness or strength.
  • Page 9 Signal connection and status. Time Current time Wi-Fi Wi-Fi Hotspot available Hotspot Bluetooth Bluetooth available Position GPS positioning Flight Flight mode status Mode Menu Setting 2. Press menu on screen to pop-up options, click “Manage apps” to manage applications. 2-1. Click “ALL” applications: to view and manage all applications.
  • Page 10 2-3. Slide to “RUNNING”: to view and manage running applications. 3. Click “Wallpaper” to launch wallpaper. 3-1. Choose favorite wallpaper. 4. Click to enter application list.
  • Page 11 4-1. Apps will be displayed in the application list after installed. Click related icon to enter application. 5. Drop down from the top of the screen to enter notification bar. 5-1. The notification bar shows system, running and error notice.
  • Page 12 6. Click to launch setting in the application list. 6-1. Setting according to users’ needs. Click search icon to search function options on the upper right corner of screen. 6-1-1. To set Wi-Fi, Bluetooth, mobile network and other functions in “Wireless & networks” option.
  • Page 13 6-1-4. When unrecovered problems occurred, try to click “Backup & reset” and “Factory data reset” then follow the instructions. Device will delete settings and applications after restart, and restore to factory defaults. (Please backup all important files before reset. Otherwise files will be deleted automatically and restore to factory defaults.) 6-1-5.
  • Page 14 7-1. Network IP default for dynamic IP access or DHCP. 7-2. Optional static IP access to the static IP.

  • Page 15: Accessories

    Accessories DC adapter 1 piece P/S 2 to RS232 cable 1 piece Mini USB cable 1 piece OTG to USB 1 piece CD drive 1 piece Manual 1 copy GPS (4G version only) 1 piece Trouble shooting * System problem ·...
  • Page 16 1. The screen has no picture 2. Click function, the implementation time is too long but unable to activate. 3. In the switching process the image appears defer and standstill, and unable to switch image smoothly. If the unit has any above-mentioned problem, please restart your system.
