Broadcom Symantec MC-S400 Quick Start Manual

Management Center Quick Start Guide
MC-S400 Appliance

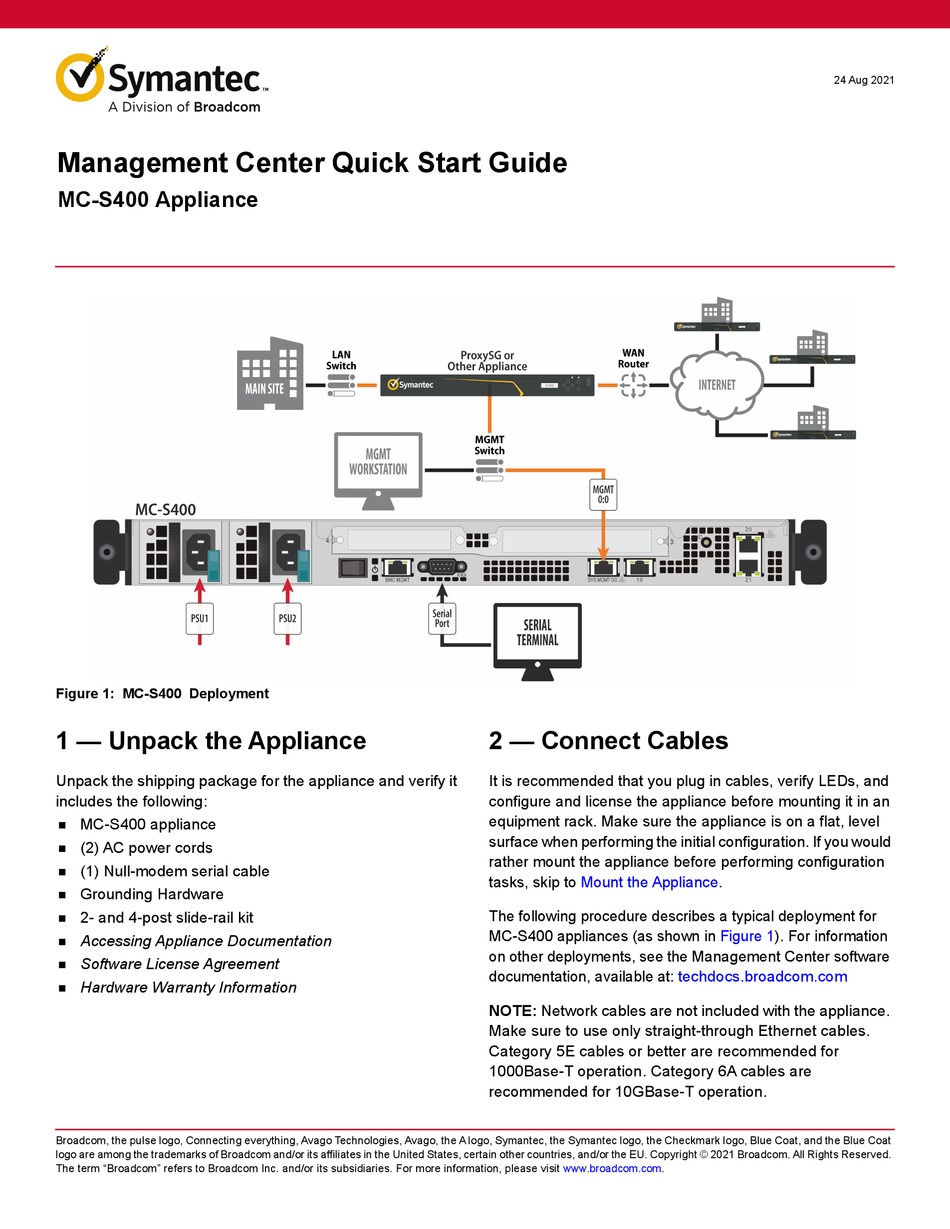

Figure 1: MC-S400 Deployment
1 — Unpack the Appliance
Unpack the shipping package for the appliance and verify it
includes the following:
MC-S400 appliance

(2) AC power cords

(1) Null-modem serial cable

Grounding Hardware

2- and 4-post slide-rail kit

Accessing Appliance Documentation

Software License Agreement

Hardware Warranty Information

Broadcom, the pulse logo, Connecting everything, Avago Technologies, Avago, the A logo, Symantec, the Symantec logo, the Checkmark logo, Blue Coat, and the Blue Coat
logo are among the trademarks of Broadcom and/or its affiliates in the United States, certain other countries, and/or the EU. Copyright © 2021 Broadcom. All Rights Reserved.
The term "Broadcom" refers to Broadcom Inc. and/or its subsidiaries. For more information, please visit www.broadcom.com.
2 — Connect Cables
It is recommended that you plug in cables, verify LEDs, and
configure and license the appliance before mounting it in an
equipment rack. Make sure the appliance is on a flat, level
surface when performing the initial configuration. If you would
rather mount the appliance before performing configuration
tasks, skip to Mount the Appliance.
The following procedure describes a typical deployment for
MC-S400 appliances (as shown in
on other deployments, see the Management Center software
documentation, available at:
NOTE: Network cables are not included with the appliance.
Make sure to use only straight-through Ethernet cables.
Category 5E cables or better are recommended for
1000Base-T operation. Category 6A cables are
recommended for 10GBase-T operation.
24 Aug 2021
Figure 1). For information
techdocs.broadcom.com
