Guest Internet GIS-R80 Quick Start Manual

The Guest Internet Hotspot Internet gateway products have Ethernet LAN ports
that are used to connect wireless access points, Internet café kiosk computers,
wired hotel rooms and business center computers. The Internet (WAN) ports
must be connected to the DSL or cable modem, or to a T3 or fiber circuit.
First connect the gateway as shown in the
diagram to configure it using the setup wizard.
Connect your computer
Ethernet connector to the
LAN1 connector of the
gateway. Your computer
Internet
Ethernet connector should be
configured for dynamic IP or
as a DHCP client. It cannot be
used with a fixed IP.
Connect the Internet connector of the
gateway to the DSL or cable modem LAN
Ethernet connector. The DSL of cable
modem should have the LAN network
connector configured as a DNCP server.
Check with the equipment manual to verify
the LAN connector configuration.

Default Port Configuration

For operation the WiFi Hotspot users will
use the wireless network or kiosk
computers. Connect wireless access
points and kiosk computers to the
gateway LAN ports.
USE ONLY
If you wish to connect
THE POWER
more devices then connect
SUPPLY
an Ethernet switch to one
SHIPPED
of the LAN ports.
WITH THE
UNIT TO
DO NOT DISCONNECT
POWER DURING RESET
PREVENT
TO AVOID DAMAGE
DAMAGE

Reset to Factory Defaults

: Connect the Ethernet cable of the WAN1 port to the computer
Ethernet port. Set the computer IP: 192.168.200.2
The browser will open a box then enter
The screen will show a reset button which must be clicked to reset the unit to factory default settings
Hotspot Gateway Product Setup - Quick Start Guide 1
Download the product manual at: http://www.guest-internet.com/gateway
WAN1 port
DSL or Cable
Configuration
LAN1 to LAN4
WAN1 to WAN4
12 volt 3Amp Power, 12volts, 3A
power supply for
110/220volts
Open the browser at http://192.168.200.1
Username: reset Password: reset

First Time Product Configuration

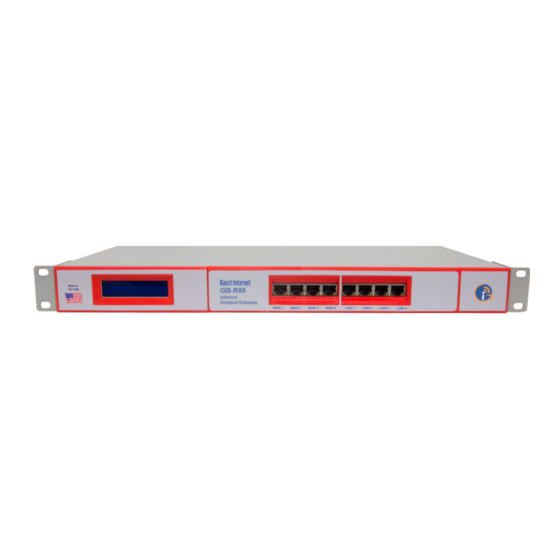

GIS-R80
Connect your laptop computer to one of the LAN ports of the gateway.
Connect the Internet port to your DSL router.
Open your computer browser. Instead of your login page you will see the
page shown below. This page is the SETUP WIZARD.
computer
The setup process has four steps. Follow the instructions to type in the
information requested on each page. Then click on the button to go to the
next page. When the setup process is completed your personalized
wireless Internet service will be ready for your guests to start using. The
setup process is shown overleaf: flip this page over to start the setup
process.
Login to the Admin pages at any time. Connect your computer to the
gateway via an Ethernet cable to the LAN port. Then open your browser
and type in the URL:
The username is
with the wizard.
When the page opens select the option you need in the menu. See the
manual for more information about configuration.
Support@guest-internet.com
http://aplogin.com/admin
admin , and the password is the one that you entered
Copyright © Fire4 Systems Inc., 2014. All rights reserved.
