Foreword
Thanks for purchasing a Godox product.

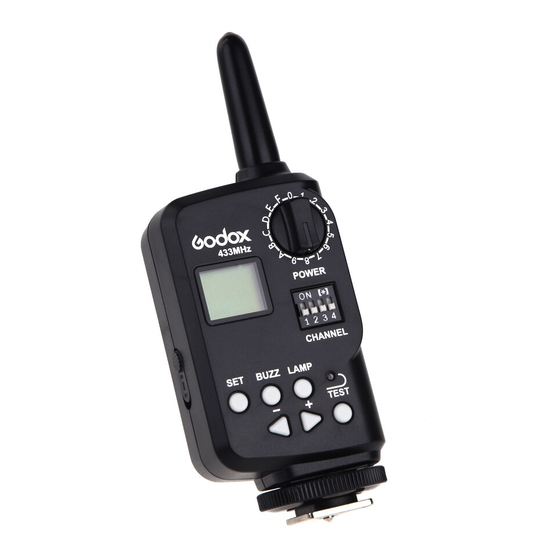

The wireless power-control flash trigger FT-16 is designed for versatile use. When used on Godox
flashes (with wireless control port), it is not only a flash trigger, but also incorporates multiple functions,
such as, adjusting power ratio, controlling the on-or-off of the buzzer and the modeling lamp or the
AF-assist beam. The trigger set consists of a transmitter (on-camera) and a receiver (on-flash).
Contents
Foreword
For your safety
Parts
ON/OFF Switch
Adjusting Flash Settings
Triggering Flash
For your safety
Before using this product, please read the following safety instructions carefully in order to ensure your
GODOX PHOTO EQUIPMENT CO.LTD
Wireless Power-Control Flash Trigger
Instruction Manual
FT-16
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Godox FT-16
Summary of Contents for Godox FT-16
-
Page 1: Table Of Contents
Foreword Thanks for purchasing a Godox product. The wireless power-control flash trigger FT-16 is designed for versatile use. When used on Godox flashes (with wireless control port), it is not only a flash trigger, but also incorporates multiple functions, such as, adjusting power ratio, controlling the on-or-off of the buzzer and the modeling lamp or the AF-assist beam. - Page 2 safety and the proper operation of this product. Keep for future reference. Failure to observe the following precautions marked by could result in product damages. The icon indicates warnings that should be read beforehand to avoid any possible damage or injury. Do not disassemble or modify.
-
Page 3: Body
11. Hot shoe 12. Indicator 13. Antenna 14. Battery Compartment 15. Wireless Control Plug Transmitter FT-16 Receiver FTR-16 Battery The transmitter needs two size-AA batteries (not provided). The receiver draws power from a flash through the flash’s Wireless Control Port. -
Page 4: Power-Ratio Display Mode
Power Switch Turn the transmitter on by sliding the ON/OFF Switch to ON. The LCD display will then light up. Note: Turn the transmitter off to save power if it will not be used for an extended period. Power-Ratio Display Mode The trigger set has two modes to display a flash’s power ratio. -
Page 5: Other Buttons
Note: 1. The Dial of the transmitter and the receiver must be set to the same grade. Otherwise, the receiver does not response. 2. Flash triggering is only related with Channel Select Switch. The Power-Control Group Select Dial only decides which flash or flash group to be controlled. Other Buttons 1. -
Page 6: Technical Data
■ Wireless Triggering the Flash 1. On the transmitter and the receiver, set the Channel Select Switch to the same position. 2. Insert the receiver into the Wireless Control Port of the flash unit. Then power the flash on. 3. Press the Test Button to fire a flash. Alternatively, you can set the transmitter onto the camera’s hot shoe and press the camera’s shutter-release button to fire a flash. -
Page 7: Maintenance
Maintenance 1. Avoid sudden drops. The device may malfunction after strong shocks or impacts. 2. Keep dry. The device is not water-proof. Malfunction, rust, and corrosion may occur and the device may go beyond repair if immersed in water or expose to high humidity. 3. - Page 8 FCC ID: 2AAJJFT-16 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment。...
