Terra Universal Smart ECM Quick Start Manual

IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
Proprietary Notice
This manual pertains to A thorough familiarity with all operating guidelines is
proprietary devices manufactured essential to safe operation of the product. Failure to
by Terra Universal, Inc. Neither observe safety precautions could result in poor
this document nor any portion of it performance, damage to the system or other
may be reproduced in any way property, or serious bodily injury or death. The
without prior written permission following symbols are intended to call your attention
from Terra Universal. to two levels of hazard involved in operation.
Terra Universal makes no
warranties applying to information
contained in this manual or its
suitability for any implied or
inferred purpose. Terra Universal
shall not be held liable for any
errors this manual contains or for
any damages that result from its
use.
The information presented here is subject to change without notice.
FFU Specifications
Size: 2'x4'
Housing: White powder coated cold-rolled steel or 304 stainless steel
HEPA Filter: 99.97% efficient on removal of particles 0.3 microns and larger.
Pre-Filter: 20" x 20" x 1" – 30% efficient ASHRAE rated.
Forward-curved centrifugal type factory balanced. Entire
Impeller:
motor/blower assembly is removable from top of housing for service.
Face Grille: Perforated anodized aluminum or 304 stainless steel
Velocity: 90 FPM or higher
Noise Level: 40 dBA (measured at 30" from filter face)
Weight: 170 lbs. shipping weight
Power: 1/3 HP motor; 120V/230V, 50/60Hz, 4.128 Amps
Specification Notes:
• All FFU data is based on a standalone unit using 1" prefilter and clean filters.
• Data will vary depending on filter media and configurations with other
products/systems, such as ductwork or hoods.
1.0 Installation
The Fan/Filter Unit is designed to fit on top of a Terra standard 2' x 4' clean room ceiling
grid. It includes a threaded fixture at each corner to accommodate four eye-bolts (not
provided) that can be used to assist in positioning the unit.
WARNING: To reduce the risk of fire, electric shock, or injury to persons,
observe the following:
A) Use this unit only in the manner intended by the manufacturer. If you have
questions, contact the manufacturer.
B) Before servicing or cleaning unit, or replacing a filter, switch power OFF at the
service panel and lock the service disconnecting means to prevent power from
being accidentally switched on. When the service disconnecting means cannot be
locked, securely fasten a prominent warning device, such as a tag, to the service
panel.
C) When the removal/disconnection of either filter is required due to service or
component replacement, the replacements are to be remounted as previously
installed.
D) Installation work and electrical wiring must be done by qualified person(s) in
accordance with all applicable codes and standards, including fire-rated
construction. All metal components must be properly grounded.
E) When cutting or drilling into a wall or ceiling, do not damage electrical wiring and
other hidden utilities.
Terra Universal, Inc. • TerraUniversal.com • 800 S. Raymond Ave. • Fullerton, CA 92831 • TEL: (714) 578-6000 • FAX: (714) 578-6020
Smart® ECM Fan/Filter Unit
with Integrated UPS Battery
Quick Start Guide
© Copyright 2021 Terra Universal Inc.
All rights reserved
Safety Notice
Cautions are used when failure to
observe instructions could result
in significant damage
equipment.
CAUTION
Warnings are used when failure to
observe instructions
precautions could result in injury
or death.
WARNING
Doc. 1788-47

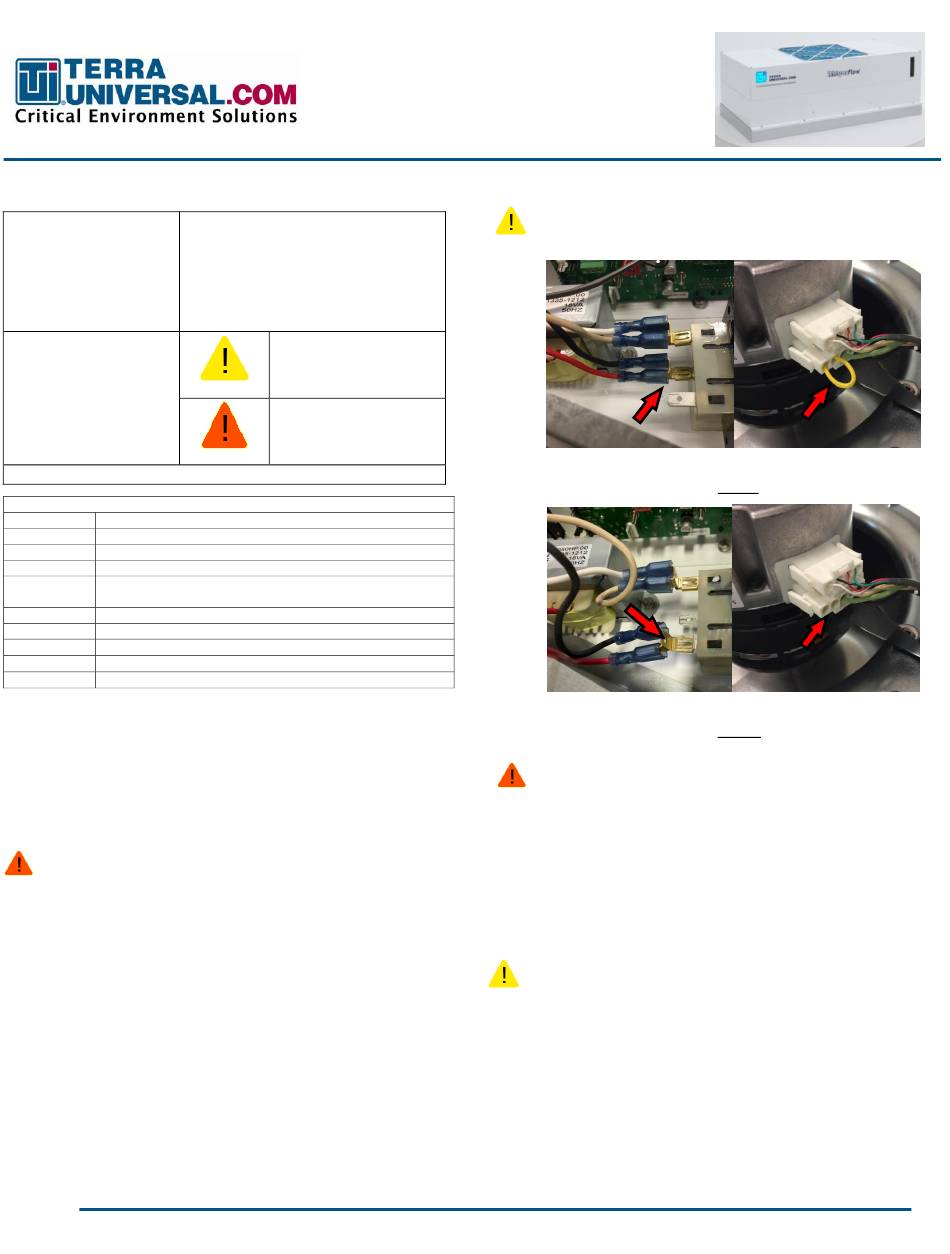

2.0 120V vs. 220V Configuration
CAUTION: Double check your FFU is configured for the correct voltage.
Connecting the motor to the wrong voltage can permanently damage and
break the motor. The FFU is pre-configured for 120V. It can be easily
reconfigured to 230V.
to
or
1. Black and
2. Yellow Jumper Cable is installed.
1. Black and
2. Yellow Jumper Cable is removed.
3.0 Initial Start-Up
WARNING: Keep unit disconnected from power supply during inspection.
Prior to providing power to the unit, check that no damage has occurred during shipping.
Conduct a visual check to make sure there are no visible dents or penetrations. If the
unit is intact, remove the pre-filter and fan guard screen. Once the battery is plugged in,
it will automatically start charging and take 1.5 – 2 days to fully charge.
To start unit, plug the UPS into a live AC wall outlet and then press and hold the
POWER button for about one second. If there is no utility power, you can "cold-start" the
UPS (turn it ON and supply power for a limited time from its batteries) by pressing and
holding the POWER button for about two seconds (alarm will beep once after interval
has passed).
Do not unplug the UPS to test its batteries. This will remove safe electrical
grounding and may introduce a damaging surge into the network
connections.
4.0 Operation
The unit consists of a 1/3-HP electronically commutative motor driving a forward-curved
centrifugal impeller. Air is drawn into the unit through a pleated pre-filter and in turn to
an insulated chamber where it is then directed to an exit HEPA filter with a built-in
diffuser. The battery system provides approximately 1-2 hours runtime depending
on FFU speed setting. The external battery can be "hot-swapped" (safely removed or
swapped without shutting down the UPS).
The unit can also be equipped with a 3/8"-diameter challenge port, which can be used to
take differential pressure measurements to monitor filter performance or insert aerosols
for leak-test certification. Port is capped when not in use.
120V Configuration
Red wires are connected to the same terminal.
220V Configuration
Red wires connect to the upper terminal as shown.
