Summary of Contents for Beta Three T4.6

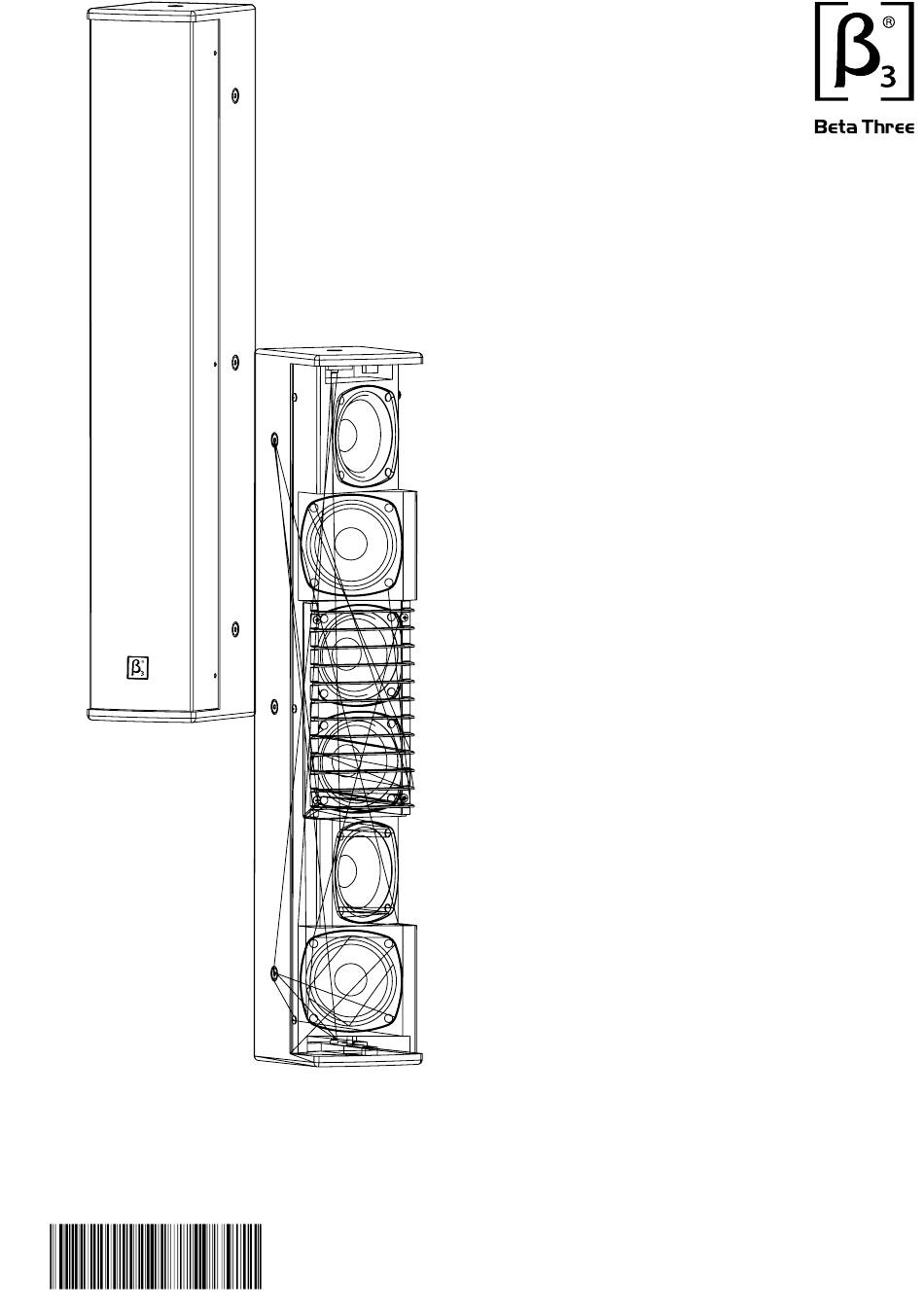

- Page 1 T4.6 4 x 6 full line array range column speaker User Manual UM - T 4 . 6 - 2 0 0 9 0 5 0 7 v e r A...
- Page 2 SAFETY INSTRUCTIONS PLEASE READ THIS MANUAL FIRST Thank you for a buying product. Read this manual first as it will help you operate the system properly. Please keep this manual for future reference. WARNING: This product must be installed by professionals. When using hanging brackets or rigging other than those supplied with the product, please ensure they comply with the local safety codes.
-
Page 3: Table Of Contents
T4.6 CONTENT T series line array full range column speaker CONTENT PRODUCT INTRODUCTION Main Features Product Description Applications CONNECTION Push Terminals System Reference Diagram INSTALLATION Optional Installation Accessories Installation Options TECHNICAL SPECIFICATIONS Specifications Frequency Response and Impedance Curve Dimensions Product information... -
Page 4: Product Introduction
Product Description Adding the optional line transformer accessory makes the The β3 T4.6 line array full range column speaker is one T4.6 line array speaker very versatile in 70/100v systems. o three speakers in the T Series. This attractively designed, 180W RMS, innovative speaker delivers high speech To enhance the already great performance of the T4.6 you... -
Page 5: Connection
The T4.6 rear panel has two input connectors. You can choose to use either the 4 way push terminal connector or the NL4 speakon connector. The two connectors are paralleled for through connection. Push Terminals 1+ 1- INPUT... -
Page 6: Installation
Optional Installation Accessories Installation Options 1.Flying The T4.6 cabinet has 3 flying points, plus a stand mount adaptor to ensure fast and easy installation. To install stacked speakers there are an optional coupling brackets. 1.Wall bracket Ceiling mount... -
Page 7: Technical Specifications
T4.6 TECHNICAL SPECIFICATIONS T series line array full range column speaker Specifications Speaker Testing Method 1. Frequency Response Product: Passive Wooden Speaker Use Pink noise to test the speaker in the anechoic chamber, adjust the Transducer: 6 x 4'' Full range transducers... -
Page 8: Dimensions
T4.6 TECHNICAL SPECIFICATIONS T series line array full range column speaker Dimensions Top view 135mm [5.32in] Side view Front view Back view 52mm [2.05in] Bottom view... - Page 9 Notes:...
- Page 10 www.beta3pro.com...
