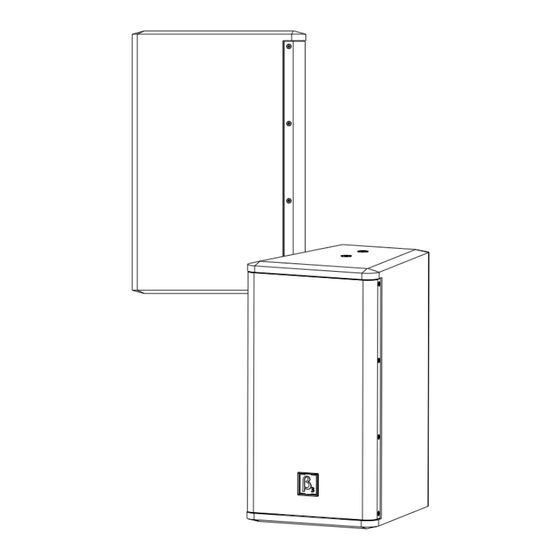

- Page 1 TW8a Two Way 8" Full Range Active Speaker User Manual U M - T W 8 a - 2 0 1 8 0 9 0 1 v e r A...
- Page 2 SAFETY INSTRUCTIONS PLEASE READ THIS MANUAL FIRST Thank you for a buyin product. Read this manual first as it will help you operate the system properly. Please keep this manual for future reference. WARNING: This product must be installed by professionals. When using hanging brackets or rigging other than those supplied with the product, please ensure they comply with the local safety codes.
-
Page 3: Table Of Contents
TW8a CONTENT TW Series Pro Loudspeaker System CONTENT INTRODUCTION Features Description Applications AMPLIFIER MODULE Amplifier Module INSTALLATION Mounting Accessories Installation Reference TECHNICAL SPECIFICATION Technical Sheet Frequency Response Curve and THD Curve 2D Dimension Product information is subject to change without prior notification. -
Page 4: Introduction
TW8a INTRODUCTION TW Series Pro Loudspeaker System TW8a Two Way 8" Full Range Active Speaker Features Compact lightweight design with unique appearance. New generation Class D amplifier, durable and reliable. Performance enhanced with built-in DSP. High output SPL and sensitivity. -
Page 5: Amplifier Module
TW8a AMPLIFIER MODULE TW Series Pro Loudspeaker System Amplifier Module MIC/LINE IN A LINE IN B LINE LINE OUT B LINE OUT A MUSIC FLAT LOW CUT CLIP 0 dB MIX OUT VOLUME TW8a 8" ACTIVE LOUDSPEAKER 450W WARNING -... -
Page 6: Installation
TW8a INSTALLATION TW Series Pro Loudspeaker System Installation Accessories Installation Reference The standard flying mounting hardware is very convenient 1. Hanging for different installations and application. 1. U-Bracket horizontal (101.06.0020.00018/Along with speaker) 2. Support 2. Speaker stand(101.06.0006.00029/Optional) 3. Speaker stand(101.06.0036.00085/Optional) -
Page 7: Technical Specification
TW8a TECHNICAL SPECIFICATION TW Series Pro Loudspeaker System Specification Frequency response(-3dB): 85Hz-18kHz 112dB/118dB(PEAK) Max.SPL: Dispersion(H×V): 130 ×140 Transducer: 1× 8" LF 1× 1" HF Rated impedance: 8 Ohms Rated power: LF: 100W HF: 20W XL/TRS, RCA, Mixed male output Connector:... -
Page 8: 2D Dimension
TW8a TECHNICAL SPECIFICATION TW Series Pro Loudspeaker System 2D Dimension Top view 225mm [8.9in] Side view Front view Back view Bottom view... - Page 9 Notes:...
