MODEL
SPECIFIC
OPERATION
MANUAL

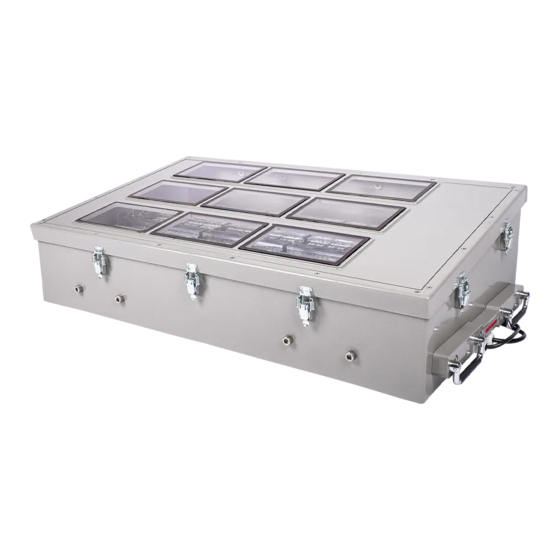

Architect series

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Architect Series and is the answer not in the manual?

Questions and answers

Related Manuals for KVANT Architect Series

Summary of Contents for KVANT Architect Series

  • Page 1 MODEL SPECIFIC OPERATION MANUAL Architect series...

  • Page 2: Table Of Contents

    Table of Contents 1. Introduction ..............01 2.

  • Page 3: Introduction

    Introduction Thank you for purchasing this KVANT product. To ensure proper operation, please read this manual carefully before using the product. After reading it, keep it in a safe place for future reference. Architect series - v221220 Kvant Lasers s.r.o.

  • Page 4: General Information

    This Architect laser system is rated as a Class IV laser product and manufactured in accordance to EN 60825-1:2014. Avoid eye or skin exposure to direct or scattered radiation. Wear protective goggles of suitable optical density if necessary. Architect series - v221220 Kvant Lasers s.r.o.
  • Page 5 The manufacturer and its distributors cannot be held responsible for any damages caused by improper use or misuse of this KVANT Architect laser system. The owner/user is fully responsible for using this product in accordance to laser safety regulations of the country or state where the system is being used.

  • Page 6: What Is A Laser And How Does It Work

    – that is why we need to be cautious about aircrafts. And if you get a system that is powerful enough then yes, it can reach the Moon. Architect series - v221220 Kvant Lasers s.r.o.
  • Page 7 With the DMX control it is possible to reach up to 16.7 million of different of R-G-B combinations. Of course the number and precision of the colours is determined by the modulation, stability and linearity of the system. Architect series - v221220 Kvant Lasers s.r.o.

  • Page 8: Laser Safety First

    Always check for reflective surfaces within the laser range – these can be very dangerous. 8. Never hesitate to use the Emergency STOP if you think there’s a fault within the laser system or a potential danger to a person/object caused by the laser beam. Architect series - v221220 Kvant Lasers s.r.o.

  • Page 9: Installation Of The System

    Due to character and power level of the Architect laser systems, we strongly recommend to user to install the fixture into a protective metal cage that will provide barrier and safe distance between the device and surrounding area. Architect series - v221220 Kvant Lasers s.r.o.

  • Page 10: Control System

    Kvant Architect laser system is supplied with one of two control system options. Either DMX 512 control option (DMX 512 signal input) or analog control option (remote controller included). Please make sure all the laser settings in your control system are set correctly before you start using your Kvant Architect laser system.

  • Page 11: Control Options

    Modulation frequency can be up to 100 kHz. DMX 512 control option Kvant Architect laser system with DMX 512 control option is dedicated to display static beams with remotely adjustable dynamic brightness for each of R, G or B colour.

  • Page 12: Connection Diagram

    Shutter key must be inserted and switched to ON position in order to enable laser emission. Door interlock switch circuitry must be inserted in the E-STOP Remote interlock connector as well in order to disable the interlock. Architect series - v221220 Kvant Lasers s.r.o.

  • Page 13: Multiple System Interlock

    Interlock Multiple Kvant Architect laser systems may be operated and controlled by a single E-STOP Remote. In order to do this, the remote cables from all Architect laser systems must be plugged into E-STOP outputs of the E-STOP splitter (either 8 or 12 channel output version).

  • Page 14: Switching On Sequence And User Interlock

    User Interlock Please make sure that all laser safety requirements and other related requirements are fulfilled in accordance with laws of the country where this KVANT laser lighting system is being used before switching the system ON. Connect the system as showed on Connection Diagram.
  • Page 15 Interlock Connection Diagram Architect series - v221220 Kvant Lasers s.r.o.
  • Page 16 The E-STOP Remote is an integral part of the laser projector. It is there for the safety of the public as well as the operator. Modifying or using anything other than the E-STOP Remote provided, in the manner it was intended, may invalidate your KVANT laser system’s variance. Architect series - v221220...

  • Page 17: Maintenance

    Architect laser system and clean the inside of the window as well. Outdoor installation and also interior operation of KVANT laser system requires special care of cleanness of the output windows. Dried rain drops and all kind of dirt brought by wind or gravity to the window surface can decrease the visual brightness of the output beam or even destroy the output windows due to high visible power density.
  • Page 18 That way, it will absorb the maximum amount of moisture from the inside of the optical section. If the granules don’t turn brown during this process, they must be replaced with new ones. Architect series - v221220 Kvant Lasers s.r.o.

  • Page 19: Item Checklist

    Before starting, check that all the following items have been included with your laser system. If anything is missing, contact your supplier. Item Number of units Description KVANT Architect Laser System E-STOP remote and Remote Controller Remote Interlock Bypass Safety and Shutter Keys Architect series - v221220 Kvant Lasers s.r.o.
  • Page 20 Item Number of units Description User manual USB drive Heavy duty flight case Architect series - v221220 Kvant Lasers s.r.o.

  • Page 21: System Overview

    When operated correctly and in the right conditions the Kvant Architect laser system is able to deliver astonishing visual effects in both outdoor and indoor installations and venues. The Architect laser system can create beam with virtually any colour within the basic RGB palette, secondary mixed colours and white.

  • Page 22: Top View

    3. 10pcs top cover fast access fasteners. To access the optical compartment of the laser system pull up the fasteners and release the clamps from hooks and carefully remove the top cover. 4. 4pcs transportation handles. 5. Cooling fluid tank. 6. Cooling fluid level indicator. Architect series - v221220 Kvant Lasers s.r.o.

  • Page 23: Side View

    E-STOP Remote interlock connector as well in order to disable the interlock and enable emission. 3. Input signal cable. Kvant Architect systems use either analog input levels 0-5V or DMX siglnal to control the output power. This is model specific.

  • Page 24: Beam Alignment

    EN 60825-1:2014. Avoid eye or skin exposure to direct or scattered radiation. Wear protective goggles of suitable optical density if necessary. Be cautious when aligning the beams and wear sufficient laser safety protection to avoid accidental exposure to Class 4 laser radiation. Architect series - v221220 Kvant Lasers s.r.o.

  • Page 25: Architect Beam Alignment

    Architect Beam Alignment Although KVANT uses the latest technology to protect all the critical components inside this laser system against Electrostatic Discharge, the semiconductor laser diodes within this system are extremely vulnerable to it. This is due to some of the electronic components being exposed when the top cover is taken off.
  • Page 26 Set the position of reflection mirror’s mount that reflects misaligned laser beam with metric hex key #1,5mm according following picture. 8. After the setting is done, service technician must verify the functionality of both interlock microswitches and close the top cover of Architect laser system. Architect series - v221220 Kvant Lasers s.r.o.

  • Page 27: Technical Specifications

    Technical Specifications All the technical specifications are subject to change without prior notice. Architect series - v221220 Kvant Lasers s.r.o.

  • Page 28: Technical Specification [Architect A270B - White Balanced]

    Analog 0 – 5 V or DMX Total electrical power consumption 200-240VAC, 50-60Hz, <2.5kVA Dimensions (LxWxH) 1062 x 917 x 312 incl. rain protection Weight (kg) ~ 80 kg * according to human photopic eye response Architect series - v221220 Kvant Lasers s.r.o.

  • Page 29: Technical Specification [Architect W270B - White Balanced]

    Analog 0 – 5 V or DMX Total electrical power consumption 200-240VAC, 50-60Hz, <2kVA Dimensions (LxWxH) 1022 x 540 x 277 mm (without water tank) Weight (kg) ~ 60 kg * according to human photopic eye response Architect series - v221220 Kvant Lasers s.r.o.

  • Page 30: Technical Specification [Architect A300]

    Analog 0 – 5 V or DMX Total electrical power consumption 200-240VAC, 50-60Hz, <2.5kVA Dimensions (LxWxH) 1062 x 917 x 312 incl. rain protection Weight (kg) ~ 80 kg * according to human photopic eye response Architect series - v221220 Kvant Lasers s.r.o.

  • Page 31: Technical Specification [Architect W300]

    Analog 0 – 5 V or DMX Total electrical power consumption 200-240VAC, 50-60Hz, <2kVA Dimensions (LxWxH) 1022 x 540 x 277 mm (without water tank) Weight (kg) ~ 60 kg * according to human photopic eye response Architect series - v221220 Kvant Lasers s.r.o.

  • Page 32: Technical Specification [Architect W660B - White Balanced]

    2 x 200 - 240VAC, 50-60Hz, <5kVA (1 phase 230VAC for optical unit <3kVA, Total electrical power consumption 1 phase for chiller <2kVA) Dimensions (LxWxH) ~ 550 x 1550 x 500 mm Weight (kg) ~ 130 kg * according to human photopic eye response Architect series - v221220 Kvant Lasers s.r.o.

  • Page 33: Technical Specification [Architect W900B - White Balanced]

    Total electrical power consumption 3rd phase for chiller <2kVA) Dimensions (LxWxH) ~ 650 x 1700 x 520 mm Weight (kg) ~ 160 kg (optical unit), ~80 kg (chiller) * according to human photopic eye response Architect series - v221220 Kvant Lasers s.r.o.

This manual is also suitable for:

Architect 55Architect 300Architect 600Architect 1000
