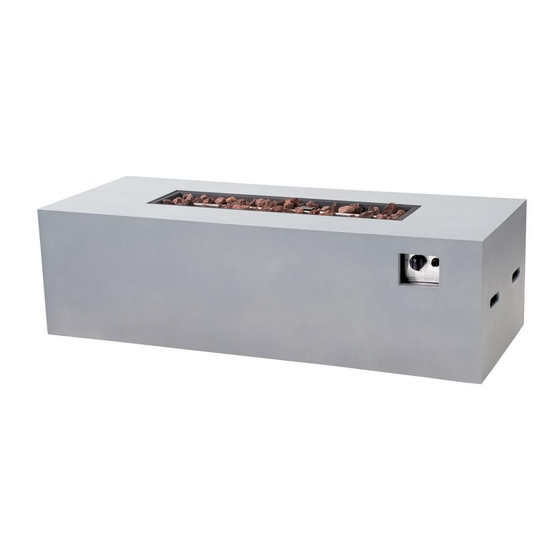

Item Number:
A302004100
Model No.:S5-005
Normal Hourly Input: 50,000 BTU/hr (14.65 kw)
Manifold Pressure: 11 inch w.c. (2.74 kpa)
WARNING
For outdoor use only.
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from
the appliance and immediately call
your gas supplier or fire department.
Complies with ANS Z21.97-2014 CSA 2.41-2014,
Outdoor Decorative Gas Appliance Standards.

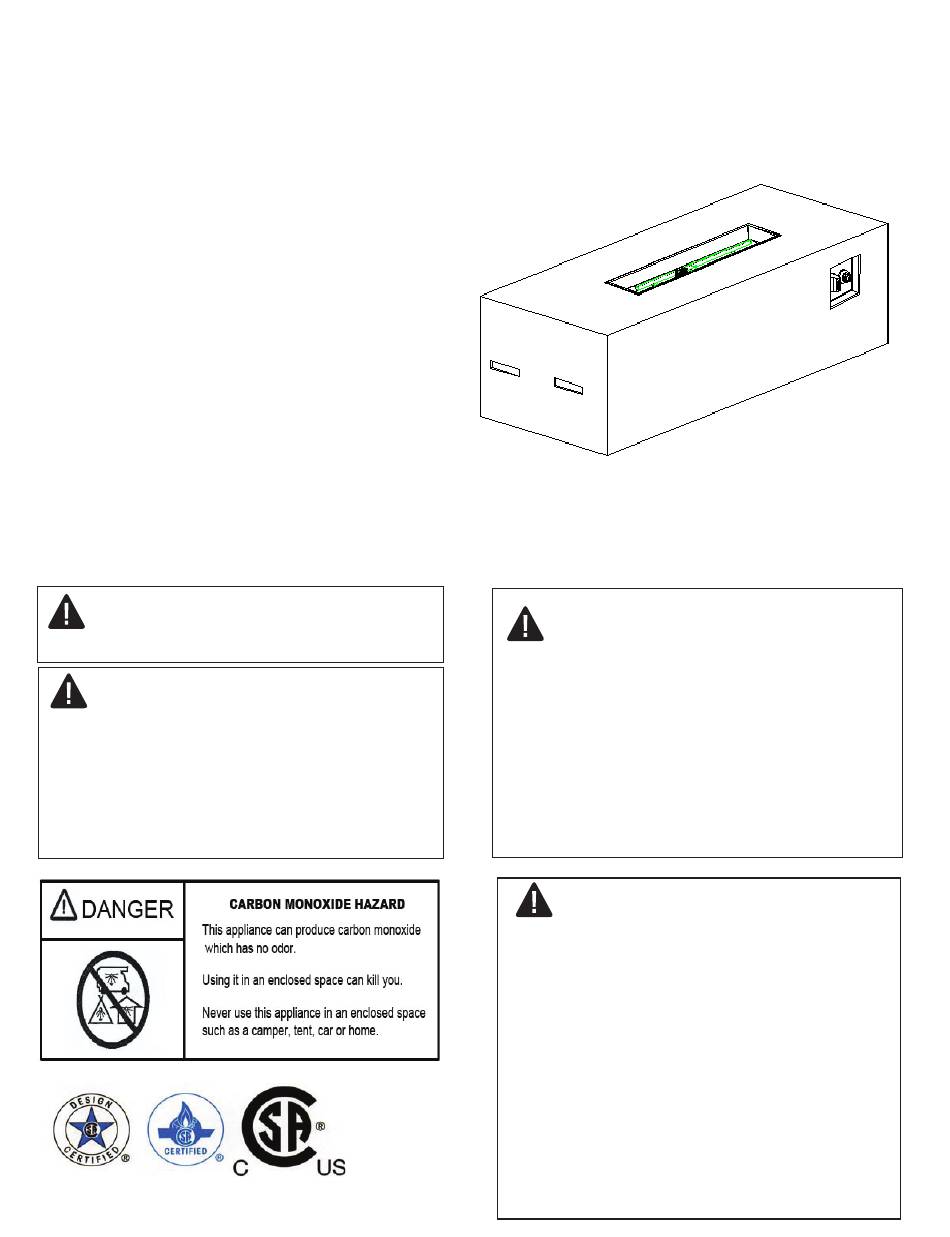

Fire Table User Guide
.
WARNING
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
An LP-cylinder not connected for use
shall not be stored in the vicinity of
this or any other appliance.
WARNING
Improper installation, adjustment,
alteration, service or maintenance can
cause injury or property damage. Read
the owner's manual thoroughly before
installing or servicing this equipment. If
the information in this manual is not
followed exactly, a fire or explosion
may result causing property damage,
personal injury or loss of life.
Save these instructions for future use. If you are
assembling this unit for someone else, give this manual
to him or her and read and save for the future.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Home Depot S5-005
Summary of Contents for Home Depot S5-005
- Page 1 Fire Table User Guide Item Number: A302004100 Model No.:S5-005 Normal Hourly Input: 50,000 BTU/hr (14.65 kw) Manifold Pressure: 11 inch w.c. (2.74 kpa) WARNING WARNING For outdoor use only. Do not store or use gasoline or other flammable vapors and liquids in the DANGER vicinity of this or any other appliance.
-
Page 2: Safety Information
SAFETY INFORMATION Before you assemble or operate this unit, please carefully read this entire manual. Failure to do so may result in a fire, explosion, injury or death. WARNING • The installation of this unit must adhere to local codes or either the National Fuel Gas Code, ANSI Z223. - Page 3 • Combustible material should not be within 72 inches of the top of the unit, or within 48 inches around the entire unit. • Keep the appliance area clear and free from combustible material, gasoline and other flammable vapors and liquids. •...
- Page 4 SAFETY INFORMATION Only use the regulator and hose assembly provided with this unit. Replacement parts must be supplied directly by the manufacturer. Inspect the burner before use of this unit. If the burner shows any kind of damage, do not operate the appliance.
- Page 5 CONTENTS Item Description Lava Rocks 2 boxes Burner (preassembled) Body Tank Holder Guard (preassembled) Control Knob (preassembled) Electronic Igniter (preassembled) Page 5...
- Page 6 ASSEMBLY INSTRUCTIONS 1. Check that the control knob (F) for the gas supply system is turned to the “OFF” position before starting any assembly. 2. Put the 20 lb. propane gas tank (not included) into the tank holder (D). Turn the wing screw on the outside of the tank holder (D) clockwise to tighten the tank into the tank holder.
- Page 7 4. Remove the rubber cap on the electronic igniter (G) by unscrewing and slide AAA-1.5V battery (not included) into the battery slot. Make sure the positive side of the battery faces outwards. Screw the igniter cap (G) over the battery tightly. electronic 5.
-
Page 8: Operation
OPERATION Before performing a leak test, be sure that no sparks can occur and you are in a spacious outdoor area. Connect the propane gas tank to the regulator and turn the valve on the unit to the “off” position. Brush a soap and water mixture on all connections. Turn the gas supply on; if bubbles occur on any connection there may be a leak. -
Page 9: Maintenance
MAINTENANCE • Before performing any maintenance always disconnect propane gas tank. • Keep the heating item free and clear from combustible materials. • Visually inspect burner for obstructions and keep tank enclosure free and clear from debris. • Use a soft brush to get rid of the mild stains, loose dirt and soil after the burner and pumice stones/ lava rocks/LavaGlass are completely cooled down. -
Page 10: Troubleshooting
TROUBLESHOOTING Problem Cause Solution Igniter pin and burner are wet Dry off with a soft cloth Igniter battery is incorrectly inserted Check which direction the battery is inserted Contact for a replacement Igniter pin is broken Heating unit won’t light part Electrode wire is loose or disconnected Reconnect wire to the igniter box located...
