Owner's Manual

HW9315SMQR

HW9315HSMQR

IMPORTANT SAFETY INFORMATION:

ety, always comply with all warnings and safety instructions contained in this manual to prevent personal

injury or property damage.

Table of Contents

Need help?

Do you have a question about the HW9315SMQR and is the answer not in the manual?

Questions and answers

Summary of Contents for Home Depot HW9315SMQR

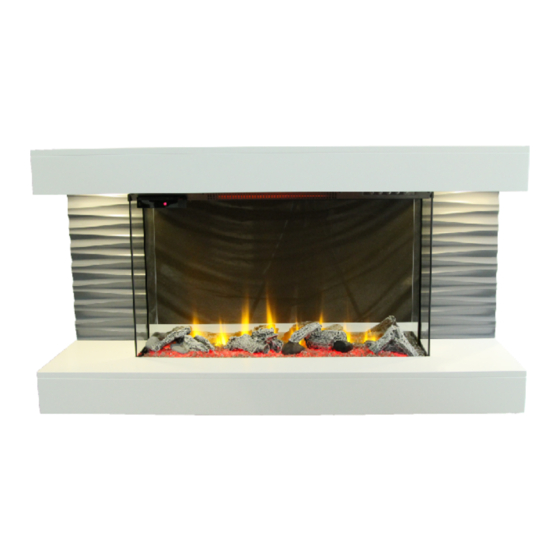

Page 1 Owner’s Manual HW9315SMQR HW9315HSMQR IMPORTANT SAFETY INFORMATION: ety, always comply with all warnings and safety instructions contained in this manual to prevent personal injury or property damage.
Page 2: Table Of Contents
Table of Contents IMPORTANT INSTRUCTIONS ....3 Fireplace Installation ......5 Operation .
Page 3: Important Instructions
IMPORTANT INSTRUCTIONS When using electrical appliances, Do not use outdoors. ⑤ basic precautions should always To disconnect heater, turn ⑥ be followed to reduce the risk of controls to off, and then remove fire, electric shock, and injury to plug from outlet. persons, including the following: ① Read all instructions before Do not insert or allow foreign...
Page 4 IMPORTANT INSTRUCTIONS vibration and store so as to avoid Do not burn wood or other ⑫ damage. WARNING: Remote control Do not strike the front glass. ⑬ contains a small battery. Keep ⑭ away from children. If swallowed, cian should new circuits or outlets seek medical attention immedi- be required.
Page 5: Fireplace Installation
Fireplace Installation WARNING: Ensure the power High temperature, CAUTION: cord is not installed so that it is pinched or against a sharp edge drapery, furnishings, and other and ensure that the power cord is combustibles at least 3 ft (0.9 m) stored or secured to avoid tripping from the front of the heater.
Page 6 Fireplace Installation WHAT’S IN THE BOX NOTE: Hardware not shown to actual size. Ref. Description Quantity Fireplace HW9315SMQR or HW9315HSMQR Top Wall bracket (A) Bottom Wall bracket (B) Long Screw (CC) 6pcs Short Screw (DD) 2pcs Wall Anthors (EE) 6pcs...
Page 7 Fireplace Installation WARNING: This product must be installed correctly, failure to do so may result in injury, electric shock to the user or damage to your product and your Property. Tools Required for Assembly (not included): 2mm pilot drill bit & 8mm drill bit (the 8mm drill bit may need to be a masonry bit) Philips screw driver Power drill Level vial...
Page 8 (7 mm) drill bit. Use a level to align the bracket and mark the four holes Insert the Wall Anchors (EE) into the holes by using with a pencil. a hammer. HW9315SMQR 15.4inch (39cm) HW9315HSMQR 21.4inch (54.2cm) Wall Securing the Top Wall Bracket Secure the Top Wall Bracket (A) to the wall by fastening provided Long Screws (CC) into the wall anchors.
Page 9 Fireplace Installation Hanging The Fireplace Ensure the Top Wall Bracket (A) is secured into the Wall Anthors. Lift the Fireplace by Two person. Align the slots on back panel with the hooks on Wall Bracket (A). Make sure the Top Bracket is inserted into the four Slots on Back Panel, release the fireplace and let it sit on the bracket freely.
Page 10 Fireplace Installation Fitting Bottom Wall Bracket Put provided Bottom Wall Bracket (B) aligning to the holes on bottom Panel. Use a pencil and mark other two holes on the Wall. Put the bracket aside and drill holes on the Wall, Insert provided Wall Anthors, same as Step 2.
Page 11 Fireplace Installation Media Installation Put provided Logs onto the Fuel bed. Put provided Topaz glass onto the Fuel bed. WARNING: Keep the Topaz Glass far away to kids. They are not Toys. Samll parts inside are dangeruos to Children. WARNING: Do Not burn wood or other material in the fireplace.
Page 12: Operation
Operation Figure 4 Display Control Panel 7. Color themes button 4. Thermostat up button 4. Thermostat Down button 3. Heater Button 1. Power Button The fireplace can be operated by either the remote control or the cotrol panel WARNING: This electric Remote Control before it is used.
Page 13 (continued) Operation Adjusting the Flame Effect Powering the Fireplace Push the Power button to supply power to all function Turns the Flame Effect On and Off, actived by pressing of the fireplace and put it in a standby mode. button on the remote. Cycles the unit through Push the Power button again to turn off all functions.
Page 14 (continued) Operation Using the Power Cord Correctly Adjusting the Color Themes This heater is for use on 120 volts. The cord has a Press the Themes button on the control panel or remote control plug as shown in the ﬁgure. to change the Color Themes.
Page 15 Operation Resetting the Temperature Cutoff Switch Should the heater overheat, an auto-matic cut out will turn the heater off and it will not come back on without being reset. It can be reset by unplugging the unit and waiting 30 minutes before plugging the unit back in.
Page 16: Maintenance
Maintenance Fireplace Cleaning WARNING: Disconnect power before attempting any Use warm water only to clean maintenance or cleaning to painted surfaces of the Compact Fireplace. Do not use abrasive shock or damage to persons. cleaners. Glass Cleaning To prolong the life of your unit and optimize the performance of your The glass is cleaned in the factory heater, vacuum or dust the outlet...
Page 17: Warranty
Warranty...
Page 18: Trouble Shooting
Trouble Shooting PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION front Display shows “ ”. The thermostat sensor is broken that the thermostat is plugged into the main circuit board. If this does not or disconnected. solve the problem contact customer service for a replacement thermostat sensor.
Page 19: Replacement Parts
For replacement parts, call our customer service department at 8 a.m.-7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday. Part Description Part Number Qty. Part Number (HW9315HSMQR) (HW9315SMQR) Remote Control - 8 Buttons HW9315SMQR-A HW9315SMQR-A Topaz Glass 1set HW9315SMQR-B HW9315SMQR-B Logs...

This manual is also suitable for:

Hw9315hsmqr
