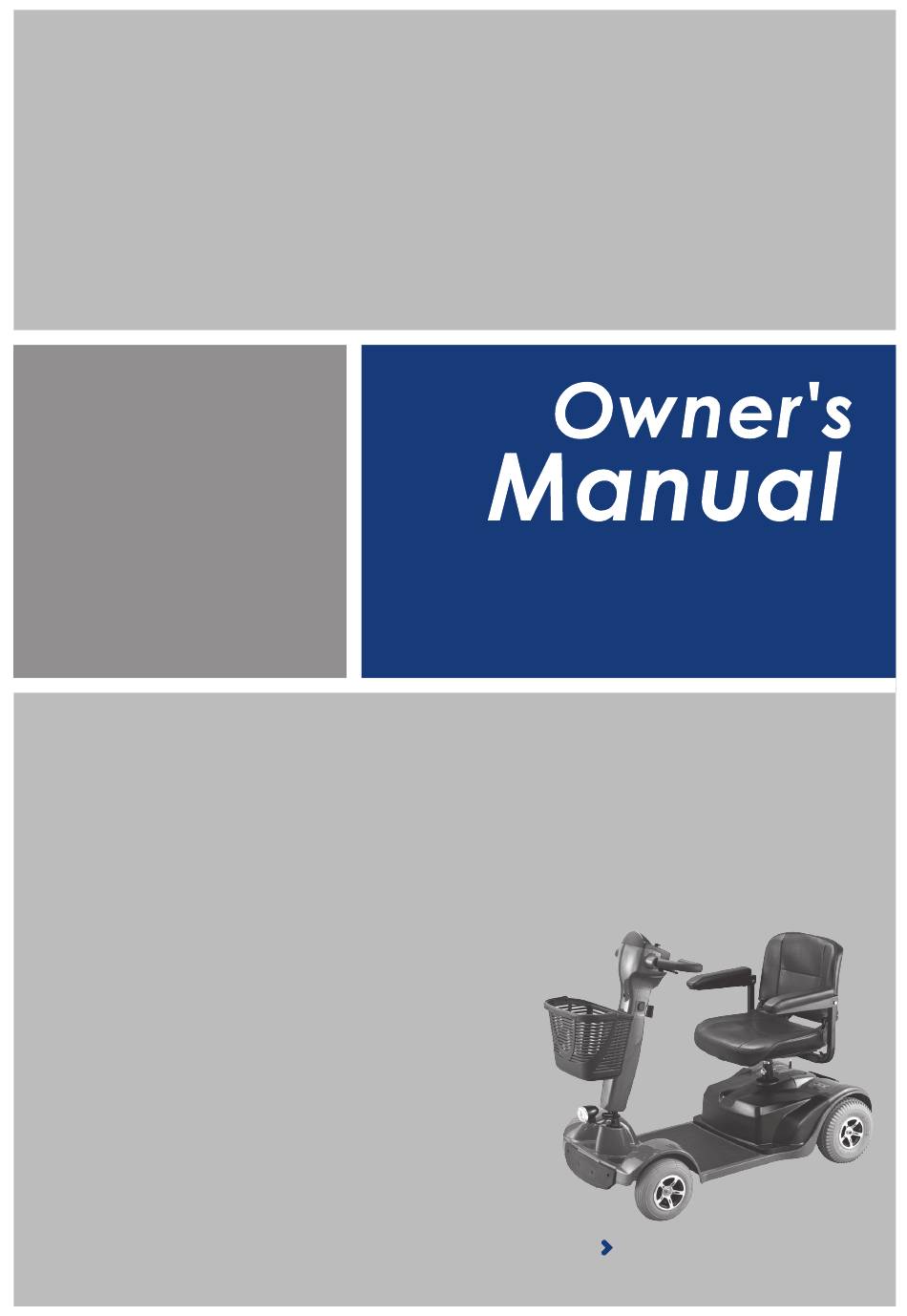

  • Page 1 S742A...
  • Page 3 S742A S742A 47” / 120 cm 24” / 61 cm 17” ~ 18.5” / 42 ~ 47 cm 9” / 22.8 cm x 2pcs 10” / 26cm x 2pcs 300 lb / 136 kg 250 lb / 114 kg 5mph / 8 kph 6.25mph / 10 kph...

  • Page 4: Table Of Contents

    S742A Table of Contents Introduction Practice before operating Safety Instructions Safety Considerations Driving Outdoors Driving on Hills Getting to Know Your Scooter Parts to the Scooter Batteries Controls (Analog dashboard) Operating Your Scooter Seat Adjustment Tiller Angle Adjustment Freewheel Mode...

  • Page 5: Practice Before Operating

    Practice Before Operating A = Forward B = Reverse...
  • Page 6 S742A...

  • Page 7: Safety Considerations

    Safety Considerations...
  • Page 8 S742A...

  • Page 10: Driving Outdoors

    S742A Driving Outdoors...

  • Page 12: Driving On Hills

    S742A Use cautionwhen driving on hills...
  • Page 14 S742A S742A...

  • Page 15: Batteries

    Batteries Charge the batteries completely (8-12 hours) prior to first use. The Scooter is supplied two 34Amp, 12 Volt sealed lead acid batteries. The batteries are situated under the front of the seat and can be removed by lifting them away from the chassis.
  • Page 16 S742A Tiller Charge Socket...

  • Page 17: Controls (Analog Dashboard)

    Controls (Analog dashboard) Status LED Battery Gauge Horn Lights Maximum Speed Knob Thumb / Finger ‘Wig-Wag’ Lever Thumb / Finger Lever (Wig-Wag) The thumb levers control the reverse and forward motion of the scooter – see ‘Starting To Drive’ for operation. Remember, more pressure = more speed. Release the thumb lever and the scooter will automatically come to a safe stop as the electromagnetic brake is applied.
  • Page 18 S742A Maximum Speed Knob The speed control enables you to set the maximum speed of the scooter. Turn clockwise to increase the maximum speed and anti-clockwise to decrease. Always start at a slow speed until accustomed with the characteristics of your scooter.
  • Page 19 Steering Steering the scooter is light and easy. Ensure you give obstacles a wide clearance to avoid the rear wheels catching. When steering through limited spaces, turn the tiller in the direction that you wish to go and apply power gently. The scooter can turn very tightly with complete stability at slow speeds.

  • Page 20: Seat Adjustment

    S742A Seat adjustment...

  • Page 21: Tiller Angle Adjustment

    Tiller Angle Adjustment Mid-way up the tiller stem is the angle adjustment lever. Gently pull the lever towards the rear of the scooter and adjust the tiller to the desired angle and release the lever to lock in position. Ensure the tiller is fully secure before using the scooter.

  • Page 22: Freewheel Mode

    S742A Freewheel Mode Brake Release / Freewheel Operation The brake release lever is situated at the right rear of the scooter. This lever allows you to disengage the drive mechanism and push the scooter in ‘freewheel’ mode. To disengage the drive, pull the lever upward to the ‘disengaged’...
  • Page 23 The Scooter is designed to be quickly and easily disassembled without tools into sections for transportation and storage: Guidelines for Disassembly Follow the guide for the easy disassembly of your scooter: (Ensure the scooter is switched off before disassembling) 1. Lift the basket up and off the bracket. 2.

  • Page 24: Maintenance

    S742A Assembly is the reverse of the above procedure. The Scooter is now separated into three components for easy transportation or storage. If the scooter is not to be used for periods of more than a few weeks, fully charge the batteries but leave the battery pack disconnected from the scooter.

  • Page 25: Troubleshooting

    Troubleshooting Circuit Breaker Your scooter is fitted with the latest in electronic controls that are programmed to protect the electrical system from abnormal overloads. Fitted for extra protection is a circuit breaker, which is located on the battery pack. Should there be a situation where your scooter stops for no apparent reason please check that the circuit breaker has not tripped.
  • Page 26 S742A If the freewheel device has been operated with the scooter switched on, the scooter will not operate until the key switch has been turned off and on again. Should a fault occur, the status light on the tiller head will indicate a flash sequence which relates to the fault in the table below.
  • Page 28 S742A...
  • Page 30 S742...
  • Page 32 Rev. 0. 11/26/2012...
