2050 Disabled Toilet
Alarm Kit
A6812: 2050 Disabled Toilet Kit
The CAUK 2050 Disabled toilet alarm kit is simple to
install and includes all the parts required to be fully
compliant with and exceed BS 8300:2001.
The unique 2050 toilet kit with integrated pull cord
provides the user with three ways to call for
assistance. This allows larger disabled toilets to be
covered without the need for an extra pull cord.
The ceiling pull switch has an orange cord which
should be positioned against the wall opposite to
the assist/reset unit.
The two push buttons on the Call/Reset button
gives tactile feedback and cover access to the
screws to give a neat finish and prevent
tampering.
System Operation
The person requiring assistance can:-
o Pull the ceiling pull switch cord.
Pull the cord at the wall Assist/Reset Unit.
o
o Press either button on the Assist/Reset Unit.
o A reassurance lamp will flash on the Assist/
Reset Unit & at the ceiling pull switch.
Once an assistance call is made the over door lamp will
flash red. An audible tone will sound to draw attention
to the call. The system is reset by pressing the Green
reset button.
System Features
o Assist/Reset Unit includes pull cord and triangle
o Meets & exceeds BS8300:2001
o Simple to install with 4 core alarm cable
o Includes Power Supply
o Over door lamp with internal sounder
o Disabled person sticker included
o Easily linked to a
o Multiple toilets can be linked on a common
powered system.
o Hidden fixing screws
o Real buttons
o Designed & Manufactured in the UK.

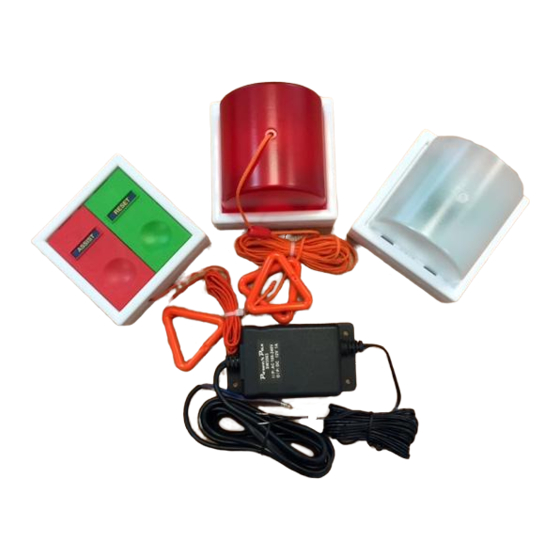

Included in the kit
 A6795 2050 Assist/Reset Unit with pull cord & triangle
 A4174 1114 Ceiling Pull cord with 2 x orange triangles
 A4779 1110 Red over door lamp and sounder
 A6828 12v in-line PSU
 A6811 Disabled persons sticker
www.callaiduk.com sales@callaiduk.com
50 Cornhill Road, Carlton, Nottingham, NG4 1GE
wired or radio CAUK control panel.
