1. USB Connector
2. Front Cover
3. Indicator
4. (U)SIM card slot

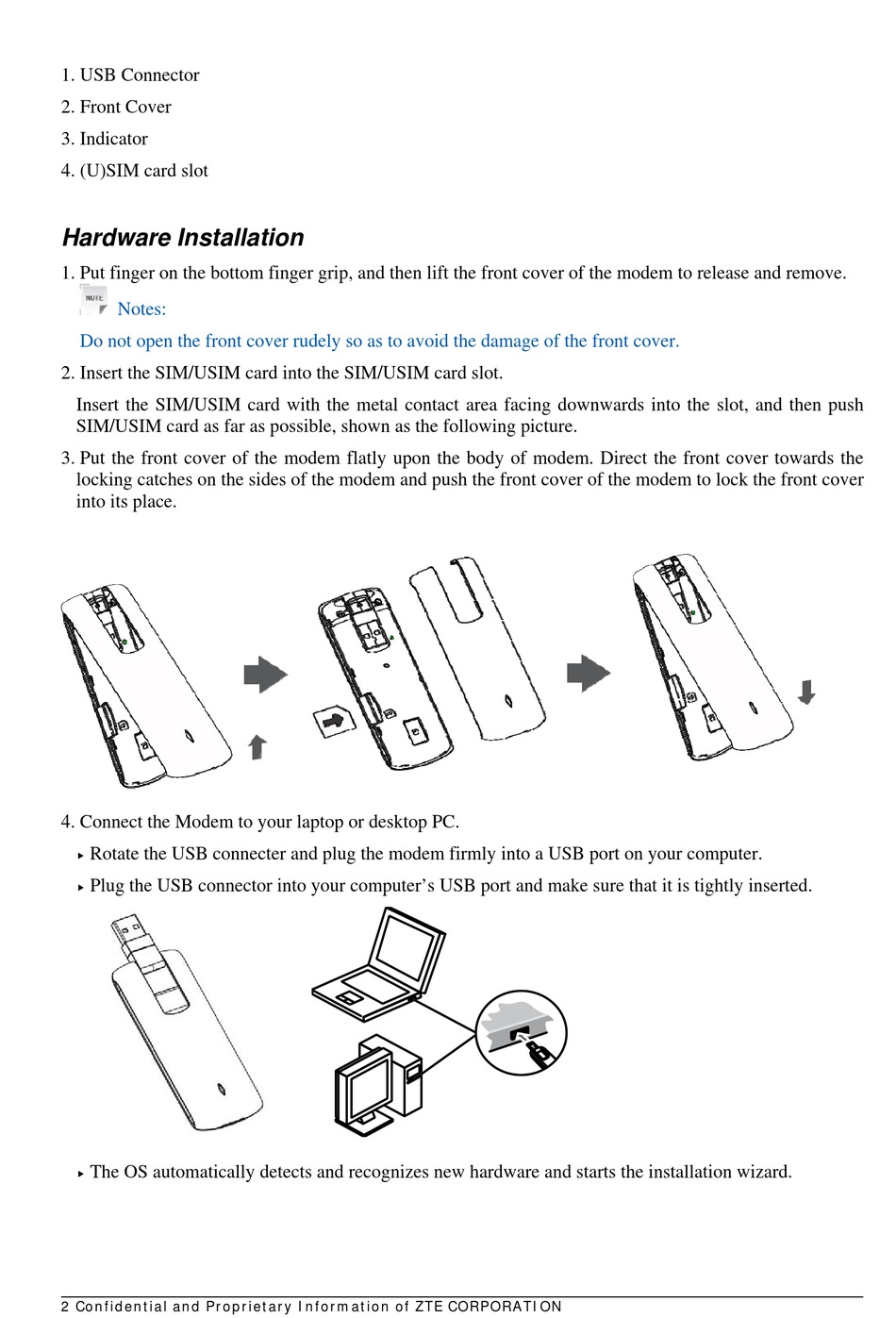

Hardware Installation

1. Put finger on the bottom finger grip, and then lift the front cover of the modem to release and remove.
Notes:
Do not open the front cover rudely so as to avoid the damage of the front cover.
2. Insert the SIM/USIM card into the SIM/USIM card slot.
Insert the SIM/USIM card with the metal contact area facing downwards into the slot, and then push
SIM/USIM card as far as possible, shown as the following picture.
3. Put the front cover of the modem flatly upon the body of modem. Direct the front cover towards the
locking catches on the sides of the modem and push the front cover of the modem to lock the front cover
into its place.
4. Connect the Modem to your laptop or desktop PC.
Rotate the USB connecter and plug the modem firmly into a USB port on your computer.

Plug the USB connector into your computer's USB port and make sure that it is tightly inserted.

The OS automatically detects and recognizes new hardware and starts the installation wizard.

