PREPARATION
Before beginning the assembly of the product, make sure all parts are present.
Compare the parts with the package contents list and hardware contents list.
If any parts are missing or damaged, do not attempt to assemble the product.
Tool required for assembly (included): Allen Key and wrench.
1
I1
Step 1: attach the back (B) to the seat (A) by using the Allen
Nut (I1). Tighten with the Allen Key (I7) as shown on the picture.
Then attach the left side (D) to the back and seat by using the
Allen bolt S (I3) and the Allen bolt L (I2). Tighten with the Allen
3
key (I7) and wrench (I8) as shown on the picture.
2
3
1
I7
I1
I6
I1
I1
I1
I6
I6
2
I8
Step 2: attach the right side (C) to the chair as shown on
the picture with the same hardware used with step 1.
Assembly the second chair in the same way .
Advertisement
Related Manuals for Safavieh Outdoor FOX6707
Summary of Contents for Safavieh Outdoor FOX6707
- Page 1 PREPARATION Before beginning the assembly of the product, make sure all parts are present. Compare the parts with the package contents list and hardware contents list. If any parts are missing or damaged, do not attempt to assemble the product. Tool required for assembly (included): Allen Key and wrench.

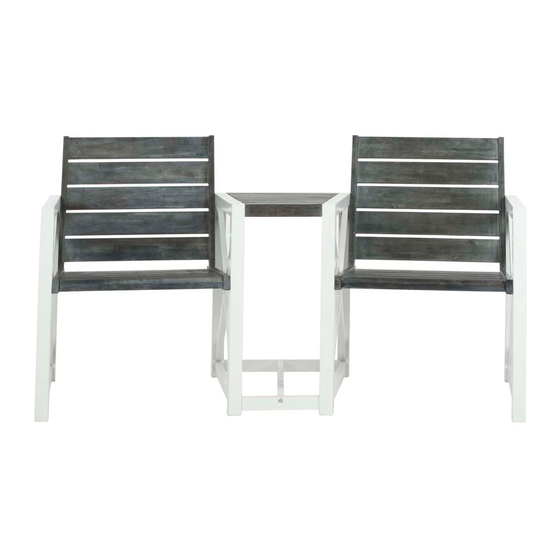

- Page 2 Dust regularly with small brush or vacuum. Spills should be taken care of immediately before they harden or stain with a slightly dampened sponge. NOTICE MODEL# FOX6707 Please make sure that you have all parts indicated before you Product Dimension: 61.81”W x 24.02”D x 33.66”H begin assembly of this item.
- Page 3 Step 3: attach the front bar (G) to the support bar (H) and the rear bar (F) by using the allen Screw(I5) as as shown the picture. Put the table top(E) and the support bars between the two chairs as shown on the picture.Using the allen screw L (I4) and allen Screw S(I5) to fix it .Tighten all allen Screws with the Allen key(I7).
