America's Leader in Solar Powered Ventilation
Installation Guide

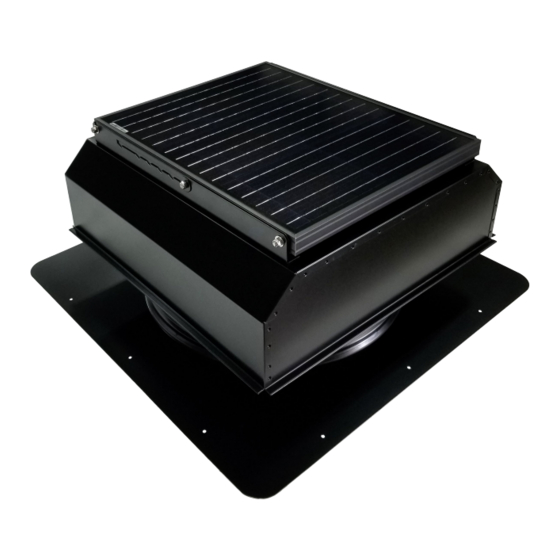

GEN3 SFA/SFD Model Series Fans
ATTENTION:
BEFORE PROCEEDING WITH YOUR INSTALLATION. MAKE SURE YOU HAVE
THE REQUIRED TOOLS AND MATERIALS TO COMPLETE THE INSTALLATION
OF YOUR SOLAR ATTIC FAN BEFORE BEGINNING.
PLEASE READ THROUGH THIS ENTIRE INSTRUCTION GUIDE
AB–2523
AB–3523
AB–4523
AB–6523
Advertisement
Table of Contents
Related Manuals for Attic Breeze GEN3 SFA Series
Summary of Contents for Attic Breeze GEN3 SFA Series

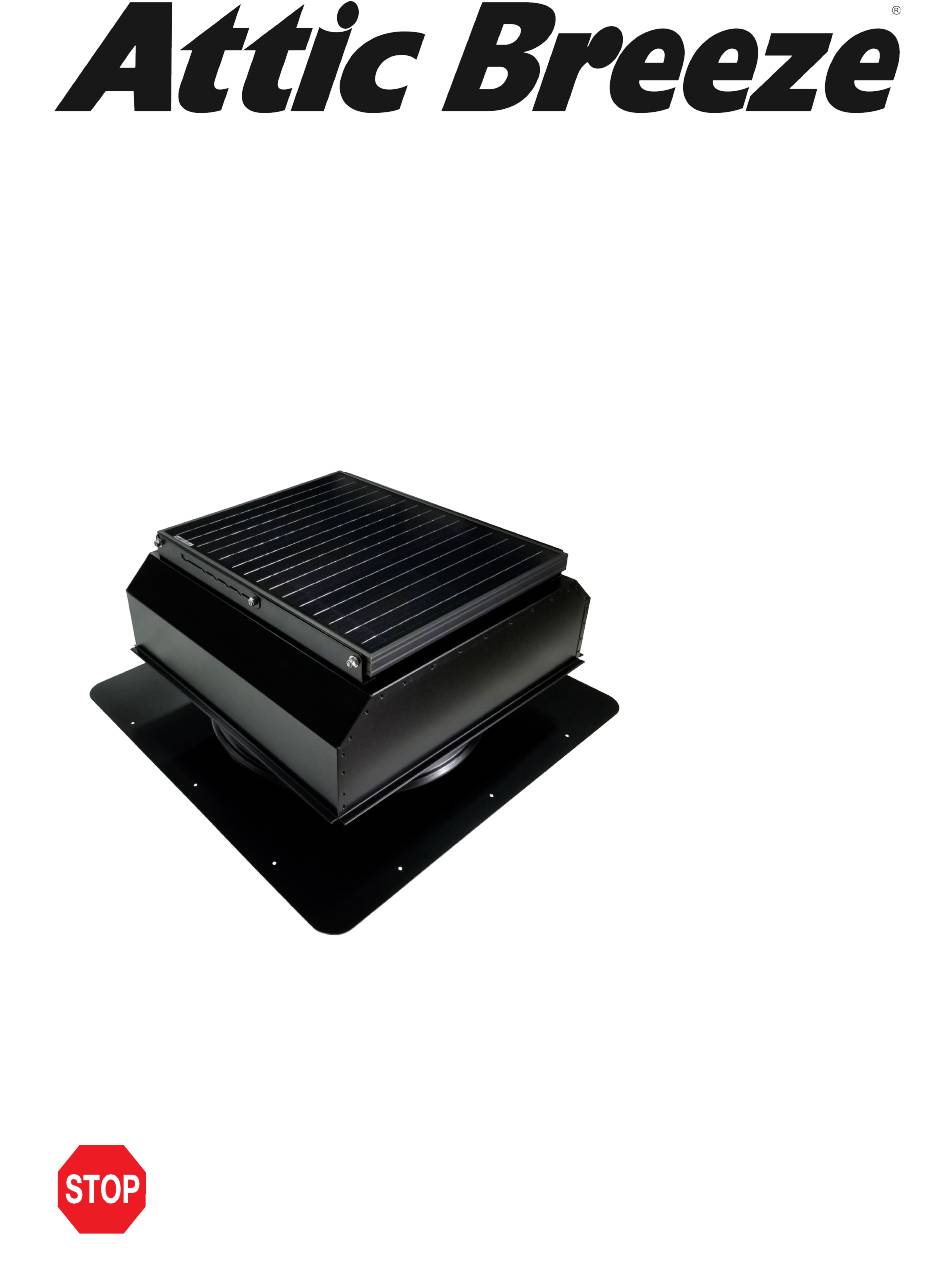

- Page 1 America's Leader in Solar Powered Ventilation Installation Guide AB–2523 AB–3523 AB–4523 AB–6523 GEN3 SFA/SFD Model Series Fans ATTENTION: PLEASE READ THROUGH THIS ENTIRE INSTRUCTION GUIDE BEFORE PROCEEDING WITH YOUR INSTALLATION. MAKE SURE YOU HAVE THE REQUIRED TOOLS AND MATERIALS TO COMPLETE THE INSTALLATION OF YOUR SOLAR ATTIC FAN BEFORE BEGINNING.
- Page 2 Getting Started Your Attic Breeze solar attic fan is designed for easy installation with composite shingle roofs or other low-profile roofing materials which may accommodate self-flashing roofing products. For installation of our products on metal or tile roofs, please contact Attic Breeze for information about our curb-mount fans and roof curb adapter kits designed for these roof types.
- Page 3 Install the solar panel mounting brackets per the instructions included with your specific Attic Breeze bracket kit. Plug in the power cord to the connector on back of the remote solar panel and securely mount the solar panel/bracket...
- Page 4 Adjusting the Solar Panel The solar panel on your Attic Breeze solar attic fan may either be left down in the horizontal mounted position as received from the factory, or the solar panel bracket may be raised to pivot the solar panel toward the south in order to get better sun exposure.
