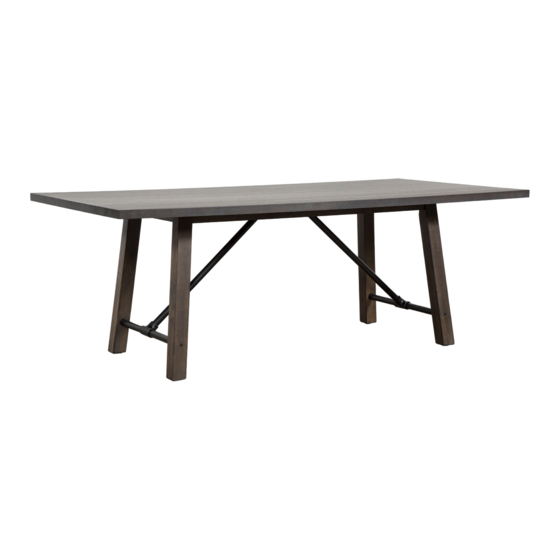

Living Spaces DINING TABLE 305-P140240 Assembly Instructions

Thank you for purchasing this quality product. Be sure to check all packing material carefully for small hardware which
may have come loose inside the carton during shipment. Identify and count all hardware and compare with the hardware
list below.
When placing furniture on non-carpeted flooring, HMI recommends the use of floor protection such as an area rug or furniture
pads. Area rugs and padding not included with purchase.
NO DESCRIPTION
1 TABLE TOP
2
METAL STRETCHER
3
LEG RIGHT
4
LEG LEFT
NO DESCRIPTION
JCBB BOLT M8 x 60mm
A
SPRING WASHER M8 x Ø22mm
B
FLAT WASHER M8 x Ø14mm
C
JCBC BOLT M6 x 25mm
D
SPRING WASHER M6 x Ø12mm
E
FLAT WASHER M6 x Ø19mm
F
JCBC BOLT M6 x 60mm
G
FLAT WASHER M6 x Ø13MM
H
ALLEN KEY M4 x 65mm
I
ALLEN KEY M5 x 65mm
J
MADE IN MALAYSIA
L I V I N G S P A C E S
ASSEMBLY INSTRUCTION
ITEM : 305-P140240
DINING TABLE
PARTS LIST
SKETCH
HARDWARE LIST
SKETCH
QUANTITY
1
2
2
2
QUANTITY
8
8
8
4
8
4
4
4
1
1
PAGE 1 OF 2
