Wholesale Interiors BBT5305 Assembly Instructions

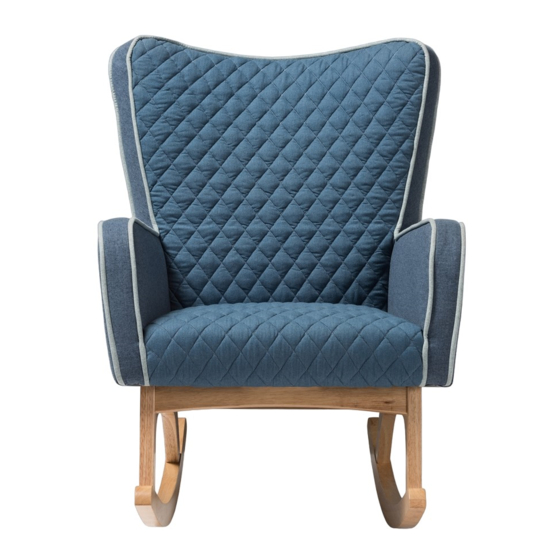

MODEL : BBT5305 ROCKING CHAIR
Read this instruction carefully. See hardware and furniture part list for guidance.
Be sure all parts are complete, before you assemble. Place all wooden furniture
parts on a clean and flat soft surface to prevent from being scratched.
Follow the figure to start assembling.
CAUTIONS
: 1. Do not FULLY - TIGHTEN the nut or nut bolt until all nut or bolt is ready assembed.
2. Do not OVER - TIGHTEN the nut or bolt to avoid causing damages to the thread.
3. Keep all hardware parts out of reach of children.
NOTE : THE LIST AND QUANTITY SHOWN ARE FOR 1 UNIT ASSEMBLY.
Tool needed : Hammer (not provided).

STEP 1

D
All manuals and user guides at all-guides.com
ASSEMBLY INSTRUCTIONS
E
7

PART LIST

ITEM
ITEM DESCRIPTION QTY
A CHAIR FRAME 1 PC
B CHAIR LEG (L) 1 PC
CHAIR LEG (R)
C 1 PC
D FRONT RAIL 1 PC
E BACK RAIL 1 PC

STEP 2

E
D
B

HARDWARE LIST

DESCRIPTION
1 JCBC Bolt M6 x 20mm
2 JCBC Bolt M6 x 30mm
3 JCBB Bolt M8 x 50mm
4 M6 FLAT WASHER
5
M6 SPRING WASHER
6 M8 SPRING WASHER
7 WOOD DOWEL M8 x 30mm
VMB 3017 "L" BRACKET (T2.5mm)(BLACK)
8
M4 ALLEN KEY (BALL SHAPE)
9
M5 ALLEN KEY (BALL SHAPE)
10
STEP B
3
6
E
B
STEP A
1 OF 2
QTY
2 PCS
2 PCS
4 PCS
4 PCS
4 PCS
4 PCS
8 PCS
2 PCS
1 PC
1 PC
10
x 2
