Wholesale Interiors BBT5286 Assembly Instructions

MODEL : BBT5286 ACCENT CHAIR
Read this instruction carefully. See hardware and furniture part list for guidance.
Be sure all parts are complete, before you assemble. Place all wooden furniture
parts on a clean and flat soft surface to prevent from being scratched.
Follow the figure to start assembling.
CAUTIONS
: 1. Do not FULLY - TIGHTEN the nut or nut bolt until all nut or bolt is ready assembed.
2. Do not OVER - TIGHTEN the nut or bolt to avoid causing damages to the thread.
3. Keep all hardware parts out of reach of children.
NOTE : THE LIST AND QUANTITY SHOWN ARE FOR 1 UNIT ASSEMBLY.
Tool needed : Screwdriver & Hammer (not provided).

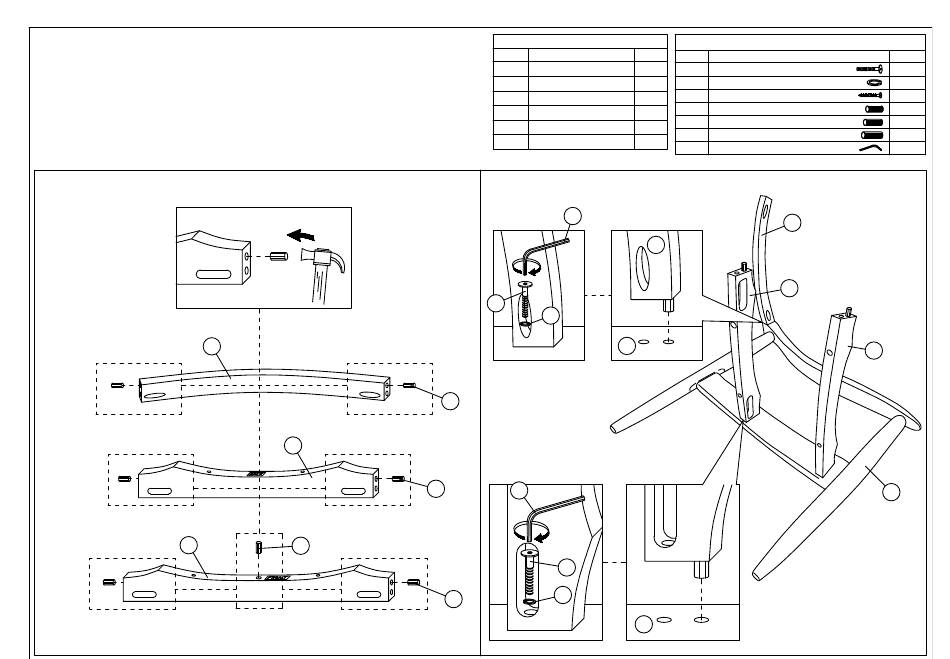

STEP 1

F
E
ASSEMBLY INSTRUCTIONS
5
D
6
4
6

PART LIST

ITEM DESCRIPTION QTY
A CHAIR
1 PC
ARM (L)
B 1 PC
ARM (R)
C 1 PC
D BACK STRETCHER
1 PC
E FRONT STRETCHER 1 PC
F BACK RAIL
1 PC

STEP 2

7
STEP B.2 STEP B.1
F
1
2
C
STEP A.2 STEP A.1
7
1
2
C

HARDWARE LIST

ITEM DESCRIPTION
1
JCBC Bolt M6 x 40mm
M6 SPRING WASHER
2
3 WOOD SCREW M4 x 38mm
4 WOOD DOWEL M8 x 30mm
5 WOOD DOWEL M10 x 30mm
6 WOOD DOWEL M10 x 40mm
M4 ALLEN KEY (BALL SHAPE)
7
F
x 2
D
x 2
1 OF 3
QTY
6 PCS
6 PCS
4 PCS
1 PC
2 PCS
4 PCS
1 PC
E
C
