Wholesale Interiors BBT5303 Assembly Instructions

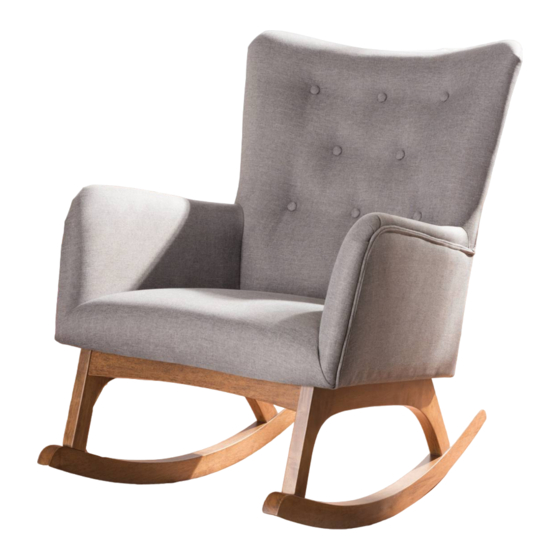

MODEL : BBT5303 A1 ROCKING CHAIR
Read this instruction carefully. See hardware and furniture part list for guidance.
Be sure all parts are complete, before you assemble. Place all wooden furniture
parts on a clean and flat soft surface to prevent from being scratched.
Follow the figure to start assembling.
CAUTIONS
: 1. Do not FULLY - TIGHTEN the nut or nut bolt until all nut or bolt is ready assembed.
2. Do not OVER - TIGHTEN the nut or bolt to avoid causing damages to the thread.
3. Keep all hardware parts out of reach of children.
NOTE : THE LIST AND QUANTITY SHOWN ARE FOR 1 UNIT ASSEMBLY.
Tool needed : Hammer (not provided).

STEP 1

D
ASSEMBLY INSTRUCTIONS
E
7

PART LIST

ITEM
QTY
ITEM DESCRIPTION
A
CHAIR FRAME 1 PC
CHAIR LEG (L)
B 1 PC
CHAIR LEG (R)
C 1 PC
D FRONT RAIL 1 PC
E BACK RAIL 1 PC

STEP 2

E
D
B

HARDWARE LIST

DESCRIPTION
1 JCBC Bolt M6 x 20mm
2 JCBC Bolt M6 x 30mm
3 JCBB Bolt M8 x 50mm
4 M6 FLAT WASHER
5 M6 SPRING WASHER
6 M8 SPRING WASHER
7 WOOD DOWEL M8 x 30mm
VMB 3017 "L" BRACKET (T2.5mm)(BLACK)
8
M4 ALLEN KEY (BALL SHAPE)
9
10 M5 ALLEN KEY (BALL SHAPE)
STEP B
3
6
E
B
STEP A
1 OF 2
QTY
2 PCS
2 PCS
4 PCS
4 PCS
4 PCS
4 PCS
8 PCS
2 PCS
1 PC
1 PC
10
x 2
