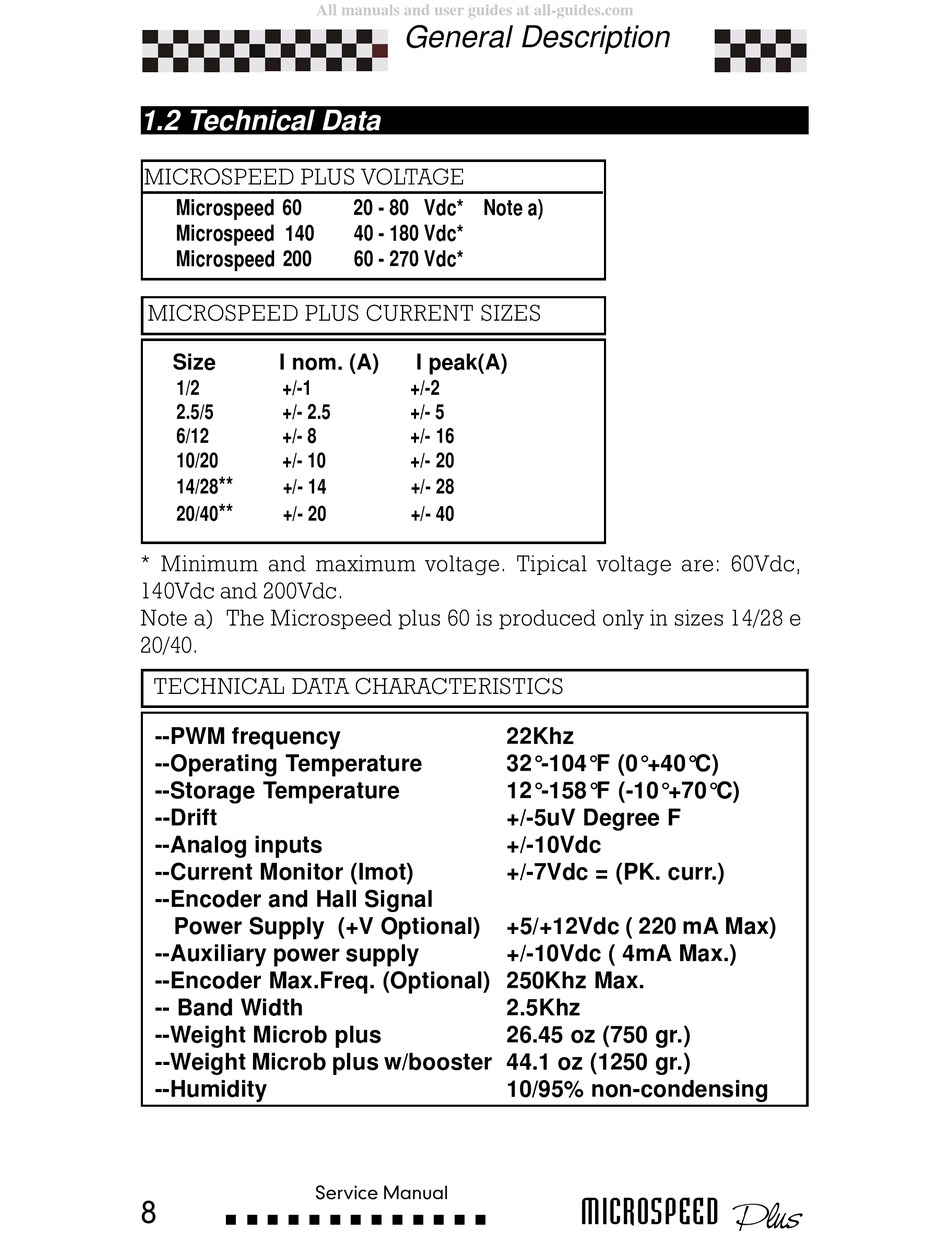

1.2 Technical Data

Microspeed 60
Microspeed 140
Microspeed 200
Size I nom. (A)
1/2 +/-1
2.5/5 +/- 2.5
6/12 +/- 8
10/20 +/- 10
**
14/28 +/- 14
**
20/40 +/- 20
--PWM frequency
--Operating Temperature
--Storage Temperature
--Drift
--Analog inputs
--Current Monitor (Imot)
--Encoder and Hall Signal
Power Supply (+V Optional)
--Auxiliary power supply
--Encoder Max.Freq. (Optional)
-- Band Width
--Weight Microb plus
--Weight Microb plus w/booster
--Humidity
Service Manual
8
General Description
20 - 80 Vdc* Note a)
40 - 180 Vdc*
60 - 270 Vdc*
I peak(A)
+/-2
+/- 5
+/- 16
+/- 20
+/- 28
+/- 40
22Khz
32°-104°F (0°+40°C)
12°-158°F (-10°+70°C)
+/-5uV Degree F
+/-10Vdc
+/-7Vdc = (PK. curr.)
+5/+12Vdc ( 220 mA Max)
+/-10Vdc ( 4mA Max.)
250Khz Max.
2.5Khz
26.45 oz (750 gr.)
44.1 oz (1250 gr.)
10/95% non-condensing
