Summary of Contents for Fosi Audio DAC-Q6

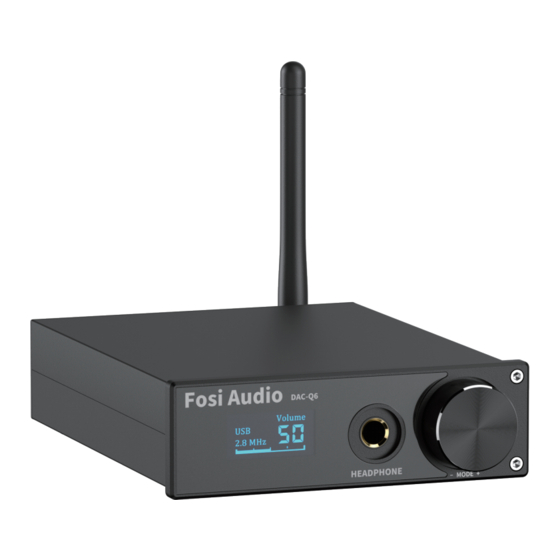

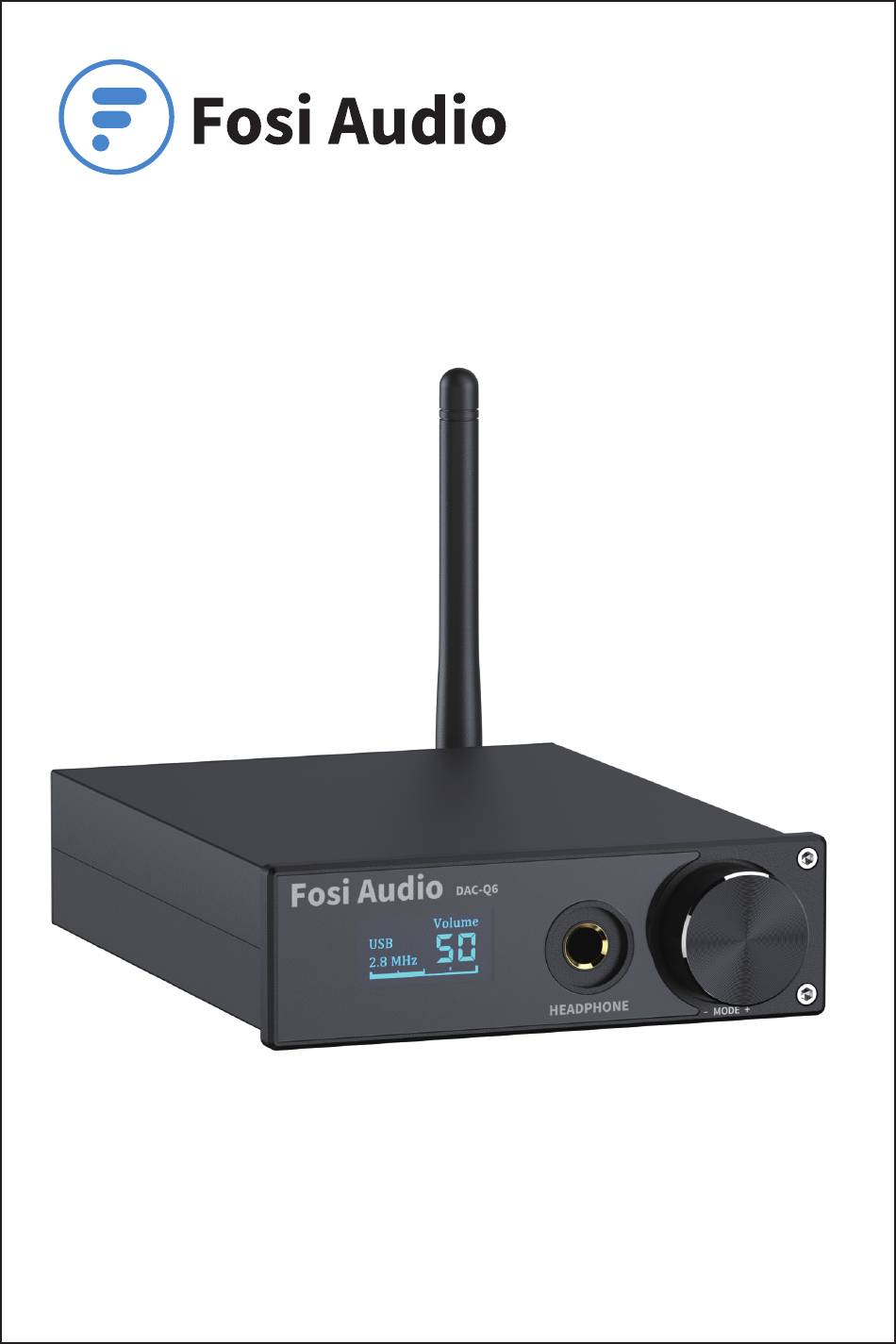

- Page 1 Fosi Audio DAC-Q6 User Manual Before using this product, please be sure to read carefully this instruction manual and keep it safe for further reference...
- Page 2 Thank you very much for choosing our products! Please read this manual carefully before using the product. Front-end interface function description DAC-Q6 44 1 KHz HEADPHONE M0DE Display ON/OFF/input mode selection key VOL+/-( short press switch, again 6.35 headphone output jack...
-
Page 3: Operation Steps
Operation steps: 1. Make sure the VOL turnto the minimum. 2. Connect the external back-end equipment to the output interface of sound source. 3. Connect the sound source that needs to be used. 4. To select bluetooth mode, you need to switch the input channel to bluetooth mode for pairing connection. - Page 4 2.The sycon driver installation: Double click on the SUCA_UsbAudio_v4.80.0_2019-12-09_setup， Then follow the prompts to install.
- Page 5 After open the foobar200, click Top left File,choose Prefereces, Click Components, Click again Install.
- Page 6 After installation, open the driver and the following dialog box appears. 3.Foobar The installation: folder Foobar It is free of installation, Double click open foobar2000 After open the foobar200, click Top left File, choose Prefereces, Click Components, Click again Install.
- Page 8 Select the following three files, Click again open Open Cancel At the same time selectedfoo_input_sacd.fb2k-component、 foo_out_asio.fb2k-component、WASAPI.fb2k-component Click open after three files. Click Apply Click again sure Click OK...
- Page 9 Open foobar2000, Click Library choose Configuer Click again output.
- Page 10 PC-USB Operation Instructinos: 1. Connect the PC-USB interface of the rear surface of the machine with factory provided USB cable (USB can support hot plug). 2. Press the input signal selection switch to select USB input. 3. The following photo shows the icon with horn symbol in the lower right corner of PC.
- Page 11 With bluetooth version Specification: PC-USB Input PCM 384K/32Bit DSD256 Sampling Frequency Coaxial Input PCM 384K/32Bit Sampling Frequency Optical Input 192K/24Bit Sampling Frequency PC-USB System W7/W8/W10/MAC/linux Supported Headphone Maxpower 1000mW 32Ω load Output Headphone Matching 16-600Ω Impedance Working Voltage DC12V RCA Output Voltage Bluetooth Core Bluetooth Support APT-X HD APT-X LL...
-
Page 12: Frequently Asked Questions
Frequently Asked Questions: 1: All the cables are connected, but no sound output? • Check whether the display screen is bright or not. If the display screen is still not bright after starting up, you can find an output of the same voltage (must be 12V) in the test to determine the machine failure or power failure.If the display screen is bright, check whether the corresponding input signal is correctly selected. - Page 13 5: Can the 6.35mm headphone output port connect to the microphone? • no, the headphone interface is the signal output interface, not the input interface. 6: Why does the volume of the machine stay the same, while the sound of different audio sources (such as CDS and mobile phones) is different? •...
- Page 14 10: Why not support DSD files and the sound is salsa? • playing DSD file does not support PC tuning volume, only the default maximum volume. 11: Does a driver need to be installed on a MAC? • no, the MAC system is driveless and can be used directly. 12: I used to have a load driver. Do I need to uninstall it before I install it? •...
