Summary of Contents for Fosi Audio DS2
- Page 1 BRING THE SOUND TO YOUR HEART User Manual Model： DS2...
- Page 2 Thank you very much for purchasing the DS2 headphone amp. Please read the instructions carefully before using the product. If you have any problems or suggestions for the product, please feel free to contact us via email. We are always at your service.
- Page 3 User Manual User Manual Type-C to Type-C USB-C to USB-A...

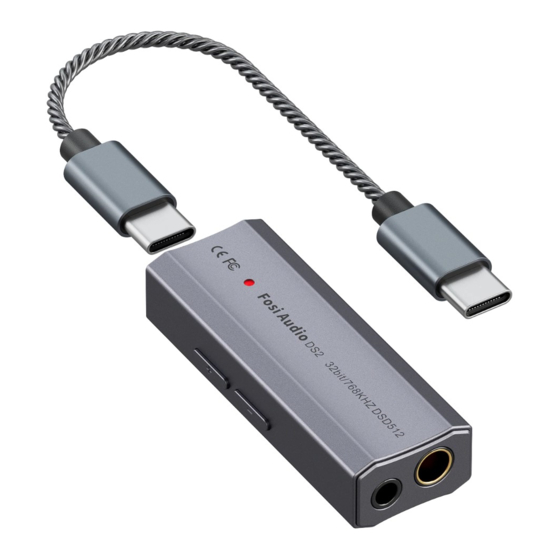

- Page 4 4.4mm balanced Indicator light headphone out Volume + Volume – 3.5mm single-ended USB Type-C connector...
- Page 5 ESS ES9018K2M DAC Chipset QUAD DAC Chip SE: 120mw(32Ω) Output Power BAL: 250mw(32Ω) 108dB Frequency Response 20HZ-20KHZ +/-0.5dB Up to 32bit/768kHz DSD64/128/256/512 Dynamic Range 108dB 16~300Ω(SE); Recommended 16~300Ω(BAL) Headphone Impedance 3.5mm single-ended,4.4mm Dual Headphone Outputs balanced output Mac\Windows\ iOS\ Android Supported Devices DS 2 Product Name...
- Page 6 Type-C cable. (Note: Some Android phones or music players may have compatibility issues due to system and hardware differences, and some phones require the OTG function to be enabled in order to use the DS2 properly. 2. When connecting the DS2 to a device with a light- ning connector, use a lightning to Type-C OTG cable.
- Page 7 Click the volume up down buttons simultaneously once to switch be- tween high and low level mode...
- Page 8 Output Audio Green Blue Display Mode Stream Light Light Light Colour Format Bright level Bright Blue mode Bright Bright Yellow High Bright Bright Purple level mode...
- Page 9 1. If the DS2 is charged via USB from a mobile phone or computer, it will consume their power. 2. The DS2 uses a high performance DAC/Amp chip and it is normal for it to get hot during use. 3. Please adjust the volume to the right level before wearing the headphones to protect your hearing.
- Page 11 DS2 to a mobile phone or other device, please plan power consumption wisely. The DS2 is small in size but has a high output power. The temperature rise is about 15°C during operation. It is normal for it to get a little warm during use.
- Page 12 It is recommended classify music files well. [Android-based phone]: Just use the Type-C to Type-C cable to connect the DS2 to a mobile phone ( cable is included in the package).
- Page 13 Type-C digital headphone" notification. You can ignore the message and use it normally. [iPhone/iPad]: Please purchase an additional Light- ning to Type C OTG cable to connect DS2 to iPhone / iPad / iPod. Notes: Only iOS 10.0.2 and above are supported.
- Page 14 C to USB A cable to help you with this) (included in the package). Select the Fosi Audio DS2 as the audio output on your computer. [Macbook]. Macbook does not require driver installa- tion. Select Fosi Audio DS2 directly as the output device.
- Page 15 Play PCM 768KHZ songs. When the interface of your device is USB1.0. When you encounter the above problems, please first contact Fosi Audio after-sales service to obtain the DAC driver, and install it as the instruction to enable the USB DAC function.
- Page 16 When there is an incoming call, the sound is still transmitted through the phone's speaker and microphone. You can pick up the phone to make a normal call. Whether or not you unplug the DS2 will have no effect. Due to system and hardware differences in exclu-...
- Page 17 On some mobile phones or DSD playback soft- ware, the volume buttons on the DS1 body cannot be synchronised to control the volume of your mobile phone, you can control the volume directly from your mobile phone. Some phone power management policies do not allow third-party apps to run in the background by default.
- Page 18 Fosi Audio designs and builds innovative audio products with all your music fully in mind. Outstand- ing sound, simple but elegant design, high-quality materials and truly useful features are what Fosi Audio is all about. We sincerely hope you get as...
