- Page 1 Fosi Audio M04 User Manual...
-
Page 2: Product Specifications

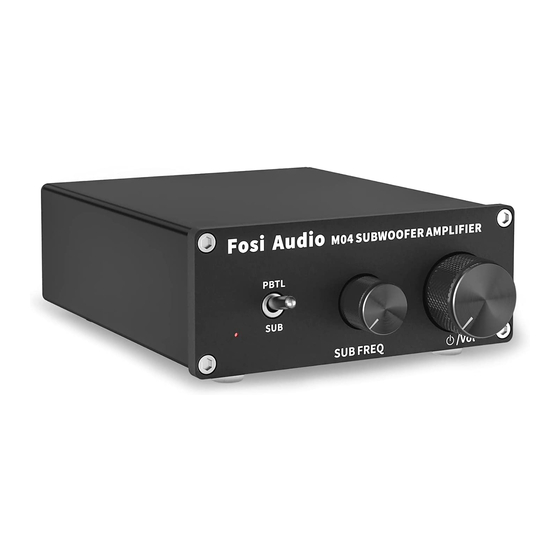

Product Specifications Small but mighty! Fosi Audio M04 is a 100w mono-channel class D subwoofer amplifier, with a SUB/PBTL switch you can select subwoofer bass amplifier or full frequency mono amp, can be connected to active/passive subwoofer and passive speaker. Power switch was integrated into volume control, we... - Page 3 Product Overview & Control Functions Full Frequency/ Bass Working Mode Switcher Power Power Switch & Indicator Bass Frequency Volume Knob Control Knob (works only in bass mode) DC 12V-24V Input RCA Input Passive Subwoofer/ Speaker Output Note: The upgraded version can connect to both passive and active subwoofer.
-
Page 4: Package Contents
Step 1: Prepare M04, 19V power adapter, passive subwoofer/passive speaker, speaker wires or banana plugs; Step 2: Connect the M04 to the passive subwoofer/passive speaker via the speaker wire, you can use the bare wire or banana plugs; Step 3: Use RCA cable to connect your device to the RCA Line In of M04;... - Page 5 Tips: How to connect the speaker wire? Method 1: Bare wire connection illustration : Release the horn terminals block terminals; : Insert the two ends of the speaker wire into the amplifier and speaker terminal holes; : Tighten the horn terminals. Note: Please avoid the speaker wires being exposed and touching the amplifier casing, as this may cause a short circuit fault.
-
Page 7: Troubleshooting/Qa
Troubleshooting/QA Q: All cables are connected, but no sound output? A: 1. Check if the POWER indicator is on, and turn the VOL knob clockwise to turn on the POWER if it is not. When the indicator light is still not on, you can find a laptop power and connect to test whether it is the machine fault or a power failure;... - Page 8 If you use unshielded signal lines, there will be interference signals entering the power amplifier. If you hate the sound, you are advised to use the shielded signal lines or unplug the signal lines. Q: Why does the amplifier stop working after a period of time? After a period of time off, it was working again Usually in this case, the amplifier is overheating protection, and the output power may have exceeded the designed power, so...
-
Page 9: Warranty Information
Warranty Information All Fosi Audio products have an 18-month limited warranty on parts and labor from the date of purchase. Please contact us if you have any problems. About Fosi Audio Fosi Audio designs and builds innovative audio products with all your music in mind.
