User Manual

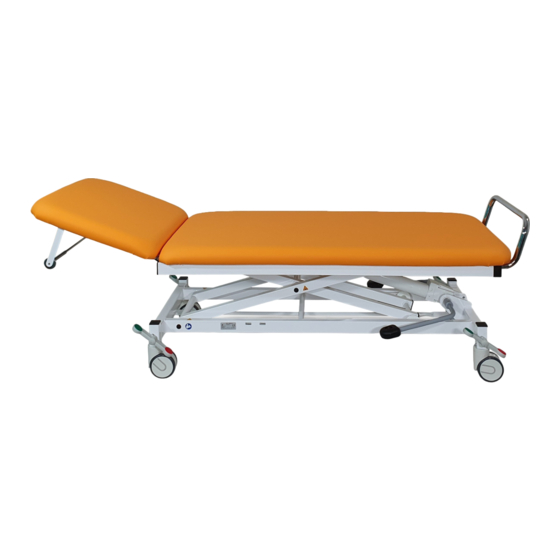

2000XL series model
Dear customer,
Congratulations on purchasing a product of outstanding quality.
Use of the best materials from renowned suppliers guarantees years of trouble-free operation, provided the
device is handled correctly and as intended in accordance with the conditions described in the user manual.
In the unlikely event you need to make a claim, please contact us.
We welcome suggestions from the users of our products.
Contents
1.
Safety information .................................................................................................................................... 2
1.1
Applied symbols .............................................................................................................................. 2
1.2
Applied standards ............................................................................................................................ 2
1.3
Safety regulations ............................................................................................................................ 2
1.4
Intended purpose ............................................................................................................................. 2
1.5
Information on setup and use .......................................................................................................... 3
1.6
Commissioning ................................................................................................................................ 3
1.7
Safety notices ................................................................................................................................. 3
1.8
Model designation and type labelling .............................................................................................. 4
1.9
Meaning of the serial number .......................................................................................................... 4
2.
Operating manual .................................................................................................................................... 5
2.1
Table design .................................................................................................................................... 5
2.2
Height adjustment ............................................................................................................................ 5
2.3
Head part adjustment ...................................................................................................................... 5
2.4
Adjustment of other sections ........................................................................................................... 6
2.5
Movability (model dependent or optional) ....................................................................................... 6
2.6
Additional equipment ....................................................................................................................... 7
2.7
Echocardiography tables ................................................................................................................. 8
3. Additional accessories (for user-specific table configuration), in extracts ................................................. 9
4. Technical data ........................................................................................................................................... 10
4.1
Individual models of the 2000XL series ......................................................................................... 10
4.2
Technical data for electric motor ................................................................................................... 13
4.3
Technical data for hydraulic system .............................................................................................. 13
5.
Cleaning instructions ............................................................................................................................. 13
6.
Maintenance and technical inspection .................................................................................................. 14
7.
Safety devices ....................................................................................................................................... 15
8.
Reporting obligation ............................................................................................................................... 16
9.
Disposal ................................................................................................................................................. 16
10. Declaration of Conformity ...................................................................................................................... 17
K.H. DEWERT GmbH
Vollmestr. 7
33649 Bielefeld
Germany
Tel. +49 / 521 400 27-0
Fax +49 / 521 400 27-27
info@khdewert.de
www.khdewert.de
Dewert User Manual 2000XL Series- Updated 05.2021/1 MDR
Page 1 of 19
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dewert 2000XL Series
Summary of Contents for Dewert 2000XL Series
-
Page 1: Table Of Contents
Echocardiography tables ......................... 8 3. Additional accessories (for user-specific table configuration), in extracts ..........9 4. Technical data ............................10 Individual models of the 2000XL series ..................10 Technical data for electric motor ....................13 Technical data for hydraulic system ....................13 Cleaning instructions .......................... -
Page 2: Safety Information
Make sure that there are no objects located directly around or underneath the device! 1.4 Intended purpose The table is used for the ideal positioning of patients for the purpose of curative and disease treatment, examination, massage and health therapy. Dewert User Manual 2000XL Series– Updated 05.2021/1 MDR Page 2 of 19... -
Page 3: Information On Setup And Use
When adjusting the upholstery parts, make sure that no persons or objects are in the adjustment range. Make sure that no persons reach under the upholstery part or lean on the underframe. Dewert User Manual 2000XL Series– Updated 05.2021/1 MDR Page 3 of 19... -
Page 4: Model Designation And Type Labelling
It enables us to identify this table model and trace back assemblies/safety-relevant components at any time. Please always state this serial number when enquiring about spare parts. Dewert User Manual 2000XL Series– Updated 05.2021/1 MDR Page 4 of 19... -
Page 5: Operating Manual
The head part is adjusted using a gas spring. To operate, press the release lever, which is located at the end of the head part underneath the upholstery part, in the direction of the upholstered surface. The head part is Dewert User Manual 2000XL Series– Updated 05.2021/1 MDR Page 5 of 19... -
Page 6: Adjustment Of Other Sections
The castors can be locked using the foot-operated brake on the castor housings. In this case, the castors can neither be moved nor rotated. To release, operate the brake on each castor again. Please note: Standard castors are not electrically conductive = optional equipment. Dewert User Manual 2000XL Series– Updated 05.2021/1 MDR Page 6 of 19... -
Page 7: Additional Equipment
(or with two hands on the left and right at the top). Pull up the side guard evenly, thereby extracting the two guide pins from the guides. Subsequently turn the side guard outwards slightly and hold it loosely, allowing Dewert User Manual 2000XL Series– Updated 05.2021/1 MDR Page 7 of 19... -
Page 8: Echocardiography Tables
Only use connectors that comply with DIN. Through additional wiring of the individual assemblies, there is conductive contact between them. The potential equalisation connector is marked with the symbol Dewert User Manual 2000XL Series– Updated 05.2021/1 MDR Page 8 of 19... -
Page 9: Additional Accessories (For User-Specific Table Configuration), In Extracts
Wall protection bumpers / impact protection • Additional foot switch • Additional hand switch • Foot switch fixation on the underframe • Foot switch rails, for adjusting the height, laterally or surround Dewert User Manual 2000XL Series– Updated 05.2021/1 MDR Page 9 of 19... -
Page 10: Technical Data
Max. patient weight (kg) 250*** 250*** 250*** 250*** The indicated table height may vary depending on the equipment, e.g. - other castor sizes: Depending on the castor diameter Dewert User Manual 2000XL Series– Updated 05.2021/1 MDR Page 10 of 19... - Page 11 0° / -22° 0° / -12° Max. patient weight (kg) The indicated table height may vary depending on the equipment, e.g. - other castor sizes: Depending on the castor diameter Dewert User Manual 2000XL Series– Updated 05.2021/1 MDR Page 11 of 19...
- Page 12 The mechanics of the tables have been designed with extensive safety margins in mind. The max. patient weight is provided with a 4-fold static safety factor, i.e. the design has been fully tested for a 4-fold load. Technical data subject to change. Dewert User Manual 2000XL Series– Updated 05.2021/1 MDR Page 12 of 19...
-
Page 13: Technical Data For Electric Motor
For cleaning and disinfection, a selection of agents from various manufacturers has been tested for compatibility. Please refer to the separate enclosed sheet. The table is equipped as standard with the Dewert hygiene standards, which enable optimal cleaning and disinfection: •... -
Page 14: Maintenance And Technical Inspection
Despite regular maintenance/technical inspection, the user is also responsible for patient safety and proper and reliable functioning. As the user, make sure that the table is in good working order prior to each use Dewert User Manual 2000XL Series– Updated 05.2021/1 MDR Page 14 of 19... -
Page 15: Safety Devices
In addition, the table can be equipped with another option: Foot switch cover The top of the foot switch is fitted with a protective cover. This makes unintentional or unauthorised operation more difficult. Dewert User Manual 2000XL Series– Updated 05.2021/1 MDR Page 15 of 19... -
Page 16: Reporting Obligation
8. Reporting obligation All serious incidents occurring in connection with the product shall be reported to the manufacturer (K.H. Dewert GmbH) and to the competent authority of the Member State in which the user and/or the patient resides. Member State... -
Page 17: Declaration Of Conformity
We hereby declare conformity with the aforesaid directive. As the manufacturer, we bear sole responsibility for issuing this EU Declaration of Conformity. Mark: Bielefeld/Germany, 26 May 2021 K.-H. DEWERT GmbH Management Dewert User Manual 2000XL Series– Updated 05.2021/1 MDR Page 17 of 19... - Page 18 Checklist for maintenance/technical inspection to IEC 62353 and DGUV Regulation 3 Device Model designation Serial no. Location Responsible person Date, inspector Actuator designation Inspections FAIL Description of defects Visual inspection Overall impression of the table OK? Labels, CE mark, type plate present? Manufacturer’s operating manual available and accessible? Sufficient space available when carrying out all adjustment functions? Mechanical structure undamaged:...
- Page 19 FAIL Description of defects Height retained? Hydraulic pump leaking? Smooth lowering possible? Check by operating the pedals to lower the table Strong noise development? Wipe the piston rod with a cloth Lying surface adjustment functions: Metal ratchets - arrester - gas spring Metal ratchet inspection: Lifting the lying surface segment: Do the two metal ratchets engage properly and securely? Do they engage evenly?
