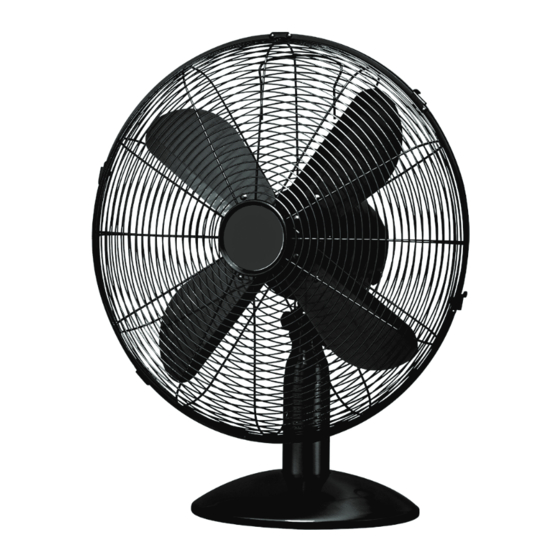

- Page 1 30cm Bench Fan User Manual Model No.: FT-30MC 220 - 240Va.c. 50Hz 35W Rev 2 Note: The specifications and/or components of this appliance are subject to change without prior notice.
- Page 2 Page 2 of 12...
- Page 3 1 Safety Instructions ............... 5 2 Components .................. 7 3 Assembly ..................8 3.1 Safety Grille and Fan Blade ................8 4 Instructions for Use ..............10 4.1 Head Tilt ......................10 4.2 Fan On / Off / Speed ..................10 4.3 Oscillation .....................
- Page 4 Page 4 of 12...
-
Page 5: Safety Instructions
1 Safety Instructions When using electrical appliances, basic safety precautions should always be followed, including the following: Carefully read this instruction manual before using appliance. • • Ensure that the fan is switched off from the supply mains before removing the guard Keep appliance out of reach of young children. -
Page 6: Additional Safety Instructions
Appliance should not be used outdoors, placed near a hot gas or electrical burner or • placed in a heated oven. • Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus that produce heat. Do not operate appliance underneath or near flammable or combustible materials (e.g. - Page 7 2 Components Grille Decoration Oscillating Knob Front Grille Motor Housing Locking Clip Neck Fan Blade Post Fan Blade Locking Screw Base Rear Grille Screws Tilt Range Screw Rear Grille Tilt Range Screw Slot Carry Handle Tilt Adjustment Knob Motor Spindle Tilt Range Knob On / Off / Speed Knob Tilt Adjustment Bolt...
- Page 8 3 Assembly 3.1 Safety Grille and Fan Blade Your Fan has been boxed unassembled to minimise packaging waste. Each part is designed to fit together and be disassembled easily for cleaning or storage. To assemble the safety grille and blade assembly, first take the motor assembly and remove the 4 screws as identified.
- Page 9 Open up all locking clips on the sides of the rear safety grille. Place the safety grille into position by lining up the location plate over the top of the rear grill as shown and push down. Secure the grille by closing the clips over the outer rim. Then using the small nut and bolt, fasten the two grilles together.
-
Page 10: Care And Cleaning
4 Instructions for Use Remove the cable tie and unravel the cordset before operation. 4.1 Head Tilt The fan and motor assembly Can be tilted up and down to your desired angle. To adjust the tilt angle, undo the adjustment knob, tilt the head to the desired angle and then re-tighten the knob. -
Page 11: Warranty Against Defect
7 Warranty Against Defect 12 Month Warranty Thank you for your purchase from Kmart. Kmart Australia Ltd warrants your new product to be free from defects in materials and workmanship for the period stated above, from the date of purchase, provided that the product is used in accordance with accompanying recommendations or instructions where provided. - Page 12 Page 12 of 12...
